Avid S6 Installation Guide8
Module Layout
This section describes the arrangements of modules front-to-back in their chassis, and chassis left-to-right in the frame.
Front-to-Back Module Arrangements
Master section modules are usually installed together in a single chassis with the Master Module above the Automation Module.
They do not have to be in the same chassis, but for simplicity this guide shows them installed together.
Channel modules are usually installed together to provide the fader strips in a system. Typically, the Fader Module is installed in
slot 1, Process Module in slot 2, and Knob Module in slot 3, but Knob Modules can also be placed below a Process Module. Frame
Chassis Small support one Knob Module per chassis; Frame Chassis Large support up to two Knob Modules per chassis. M40- or
M10 Plus-based systems also support Display Modules. Not all slots need to contain modules. Fill panels are available to cover un-
used slots, and to allow smaller modules to be placed in slot 1.
The first two sections show standard arrangements for Avid-configured systems. For custom configurations, see “About Custom
Module Configurations” on page 10.

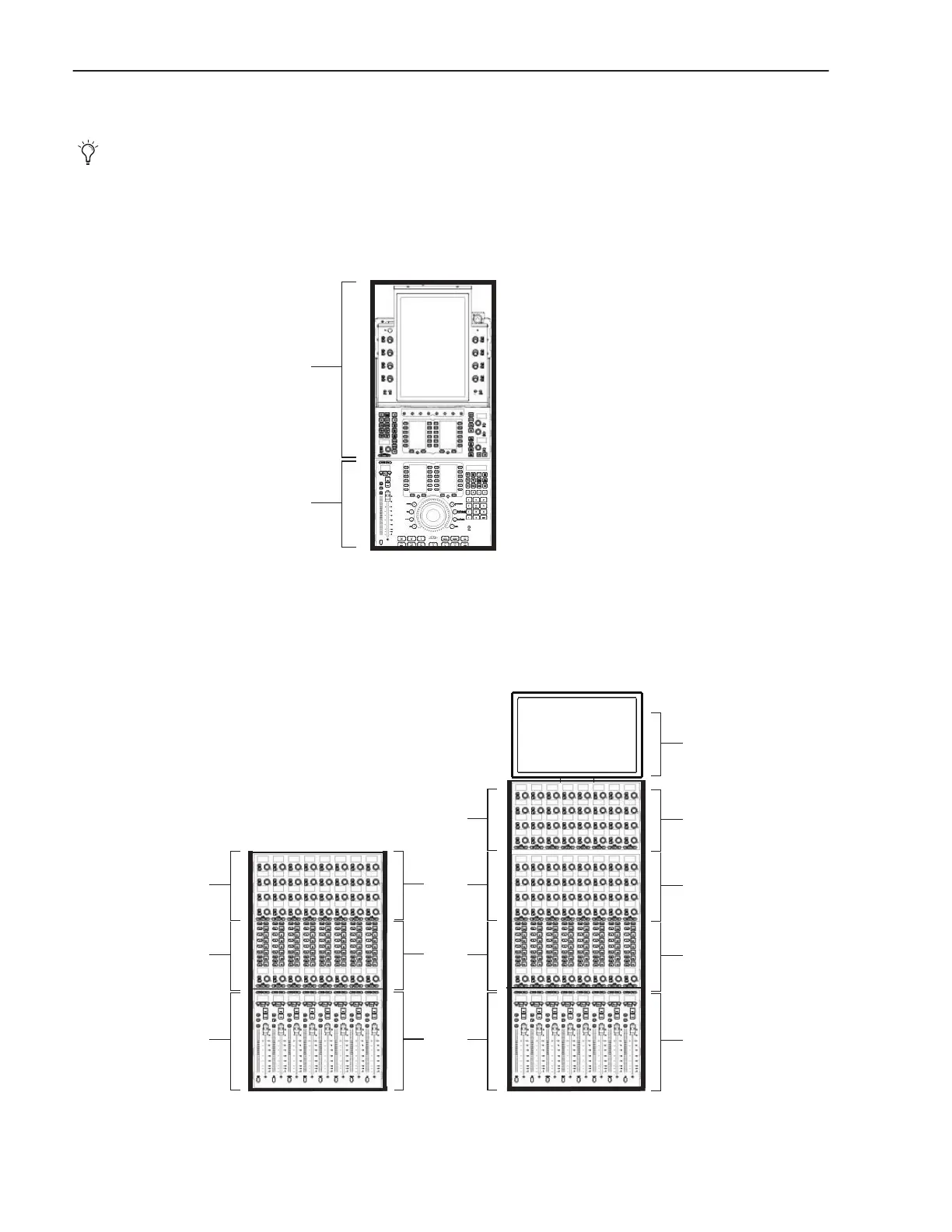

Master section modules in a Frame Chassis Small
Channel modules in a Frame Chassis Small (left) and a Frame Chassis Large (right)
Slot 1
Slots 2 and 3
Automation Module
Master Module
Fader
Knob
Process
Slot 1
Slot 3
Display
Slot 2
Slot 4
Module
Module
Module
Fader
Knob
Process
Module
Module
Module
Knob
Module
Module
