Chapter 2: Modules and Configuration Overview 9
Left-to-Right Chassis and Module Arrangements
Channel sections and the master section modules can be arranged in any order, left-to-right. For example, in an S6 M10 16–5
system (16 faders with five knobs per strip) the master section modules can be located in three possible locations, as shown below.

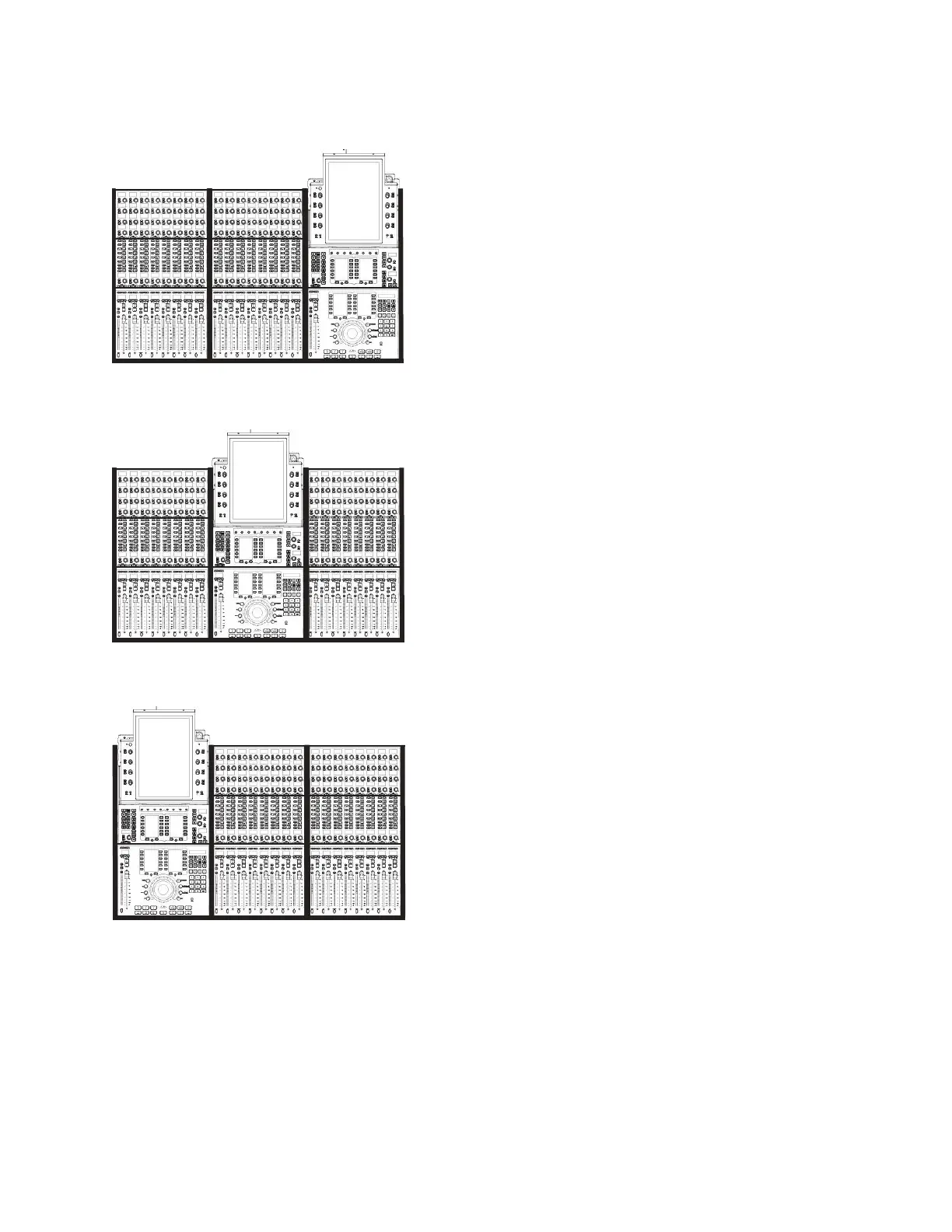

Example 1: S6 M10 16-5 with master section at far right
Example 2: S6 M10 16-5 with master section in the center
Example 3: S6 M10 16-5 with master section at far left
