Chapter 4: Assembling Frame Chassis 21
Assembling the Chassis
If you have not already done so, unpack all Frame Chassis and fasteners and arrange them next to each other on your work surface.
The Chassis kits also include tie-down brackets (for PSUs), a T-Strip, and Display Module Fillers. Set these aside for now.
Attaching the End Side Wall
To attach the end Side Wall:
1 From the S6 Side Covers package, unpack the included Side Wall.
2 Attach the Side Wall to the Chassis Bottom Plate of the right-most chassis using three #1 Phillips screws (included in each chas-
sis package). The right edge of the Chassis Bottom Plate sits on top of the left edge of the Side Wall as shown in Figure 15.
• If your system includes a Producers Desk and you want to install it at the far right end of the frame, attach the end Side Wall
to the special Inlay Chassis as shown in Figure 16. For all other positions, assembly is identical to standard chassis. Just re-
member that the Inlay chassis cannot be the left-most chassis, it must have at least one chassis attached to its left.

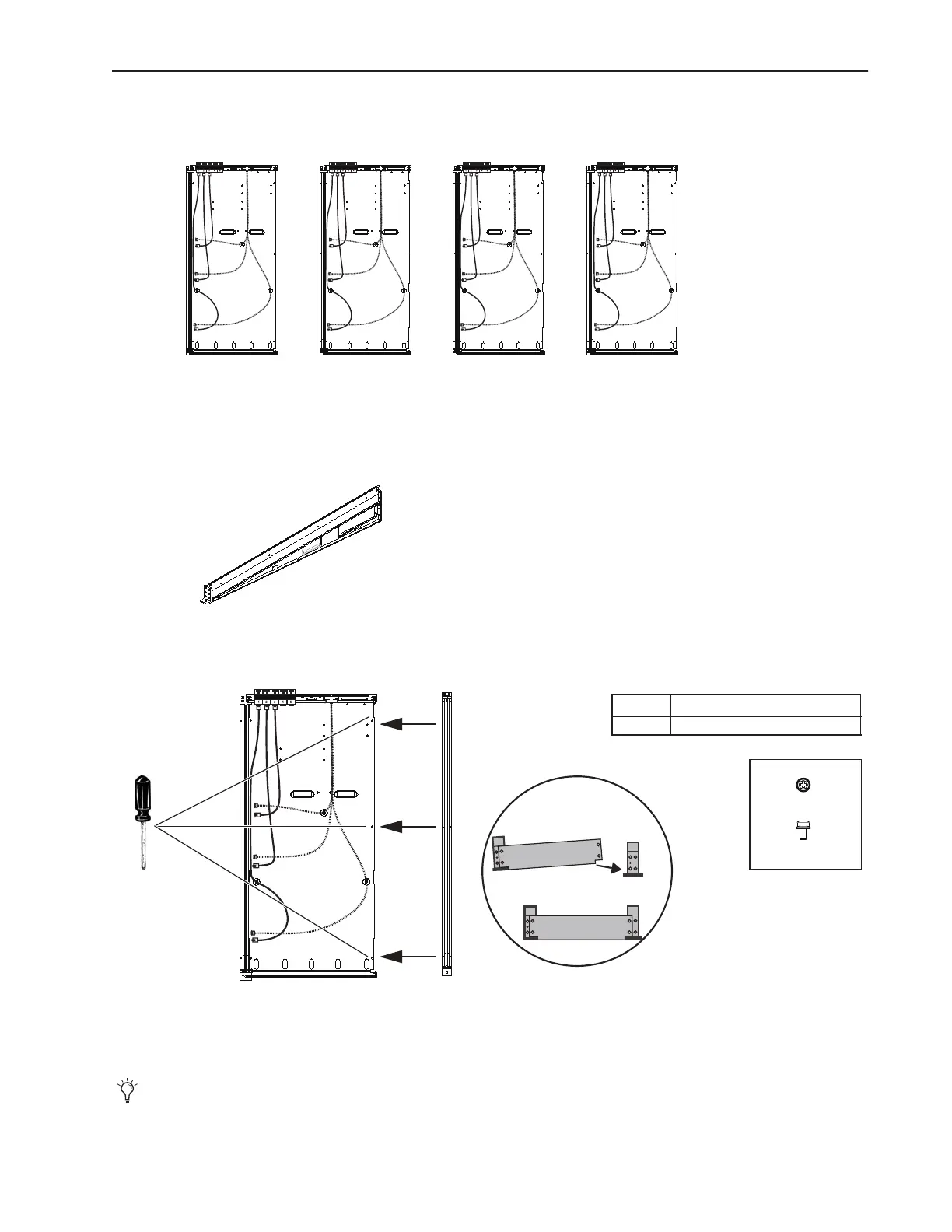

Figure 13. Four Frame Chassis Small
Figure 14. End Side Wall
Figure 15. Securing the end Side Wall to the Chassis Bottom Plate, top view (at left) and front view (lower right)
Set the other #1 Phillips fasteners aside for now; you will use these later to secure the switch and/or PSU tie-down brackets.
(Not to scale)
M3x6 SEMS (7760-30025-01)
Fastener
#1 Phillips
Tool
