Chapter 3: Assembling Legs 15
Attaching the Front Beam
To attach the front Beam:
1 Align the pins on the underside of the Beam with the holes in the top of the Legs. Be sure to orient the front Beam so that the
pins on the top are closer to the center of the frame.
2 Using four fasteners and washers (included) per mount, attach the Beam across the front of the Legs as shown in Figure 4. Do
not tighten the fasteners fully.

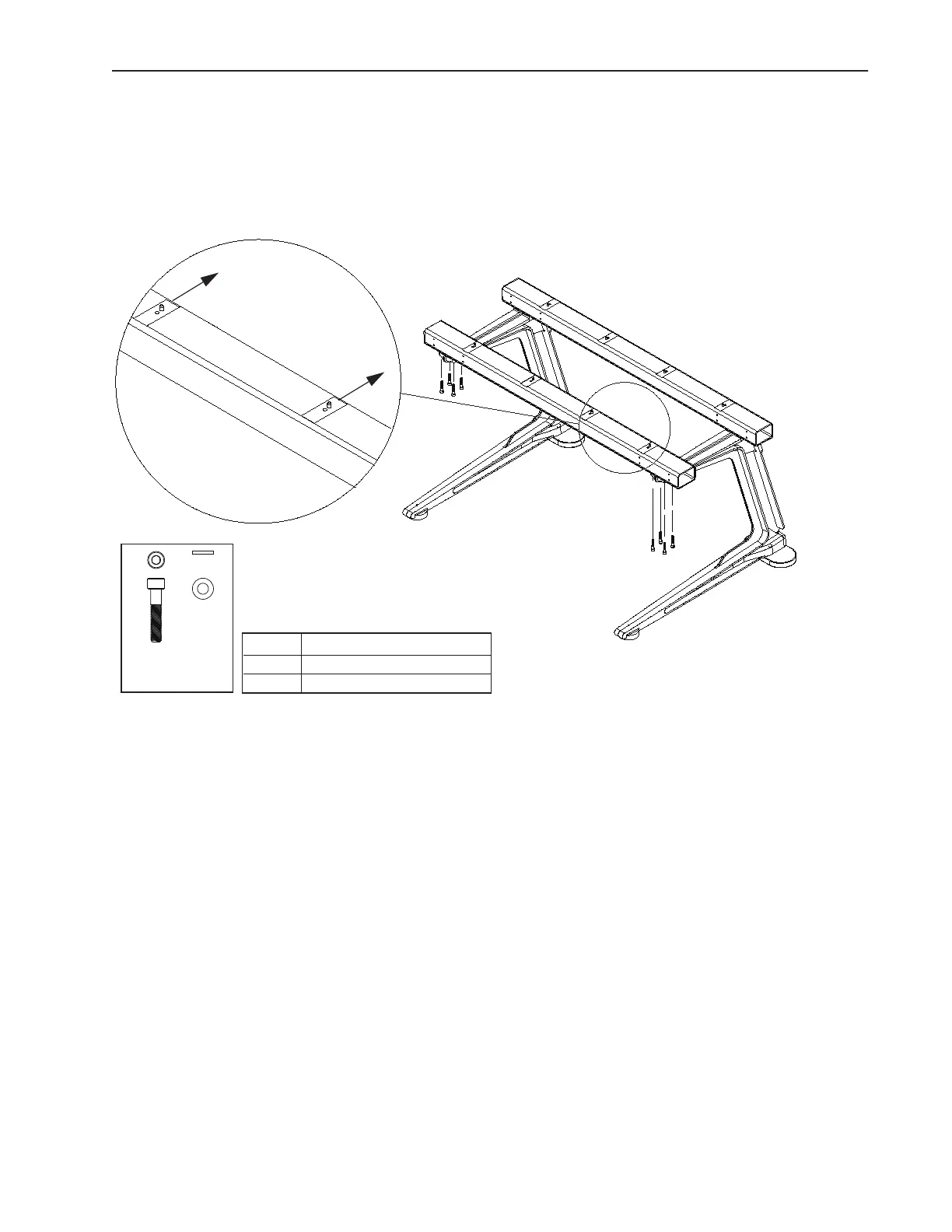

Figure 4. Attaching the front Beam to the Legs (orientation of pins shown at upper left)
(Not to scale)
M8x30 (7760-30606-00)
Fastener
M8 WSHR (7760-30609-00)
Washer
6mm Hex
Tool
