Avid S6 Installation Guide18
3 Raise or lower the back of the leg as needed, using the 13 mm open end wrench included with the Legs (see Figure 8). When
looking down at the feet from above, turn the wrench clockwise to raise or counterclockwise to lower.
4 To raise or lower the front of the leg, use an M4 Hex to adjust the front leveling feet from above (one M4 Hex is included in the
Tool Kit found in the Side Covers package). Turn clockwise to raise, counterclockwise to lower.
5 Repeat for the other leg.
6 Lay the level across the front beam left-to-right (parallel with the beam) and make sure the left and right legs are the same height.
Adjust the left or right legs as necessary. Repeat for the back beam.
Tighten All Fasteners
To complete the Leg Frame assembly:
1 At the back of the frame (either end), make sure the beam sits flat on the leg and tighten the 4 fasteners that secure the beam to
the leg from underneath, then tighten the 4 fasteners of the Back Corner Bracket. Repeat for the other end of the back beam.
2 At the front of the frame (either end) make sure the front beam sits flat on the leg, then tighten the 4 fasteners that secure the
beam to the leg from underneath. Repeat for the other end of the front beam.
3 Make sure the End Brackets are aligned correctly with the top of the Beams, then fully tighten the bracket fasteners to the beams.
How to Proceed
When your Leg Frames are assembled, proceed to Chapter 4, “Assembling Frame Chassis.”

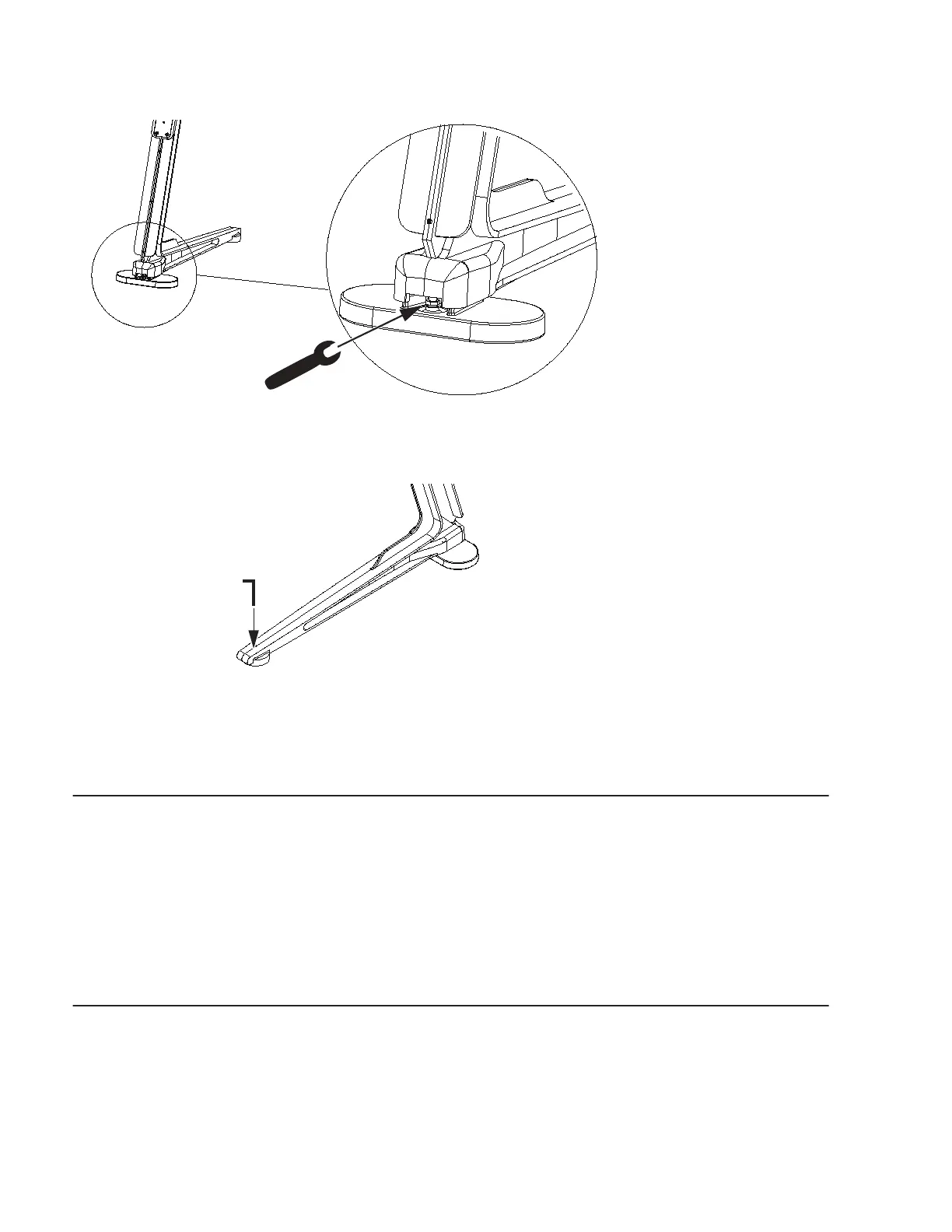

Figure 8. Back Leg Leveler
Figure 9. Front leveling foot
