Avid S6 Installation Guide30
Installing Rear Cover Mounting Brackets
Rear Covers support and conceal cables. Rear Covers consist of two pieces, a lower bracket that mounts to the frame, and an upper
cover that attaches to the bracket later.
To install the Rear Cover Mounting Brackets:
1 Unpack the Rear Cover brackets and fasteners from their packaging (each bracket uses two Hex fasteners and washers).
2 Standing at the back of the frame, start at the far left and attach one Rear Cover bracket to the Back Tie Plates of the first two
chassis using Hex fasteners and washers. Figure 30 shows how they are attached to the chassis (if your system includes Display
Modules, the Rear Cover Mounting brackets are attached between the legs of the Display Module Mounting brackets).
Before tightening the fasteners, make sure the bottom lip of the tray is flat against the lower back edge of the chassis (make sure
the lip is not sitting on, or hooked below, the edge of the chassis) as shown in Figure 31.
How to Proceed
After attaching the Rear Cover brackets, set the upper covers aside for now (these are attached later, after cables are in place) and
proceed to Chapter 5, “Installing Power and Connectivity.”

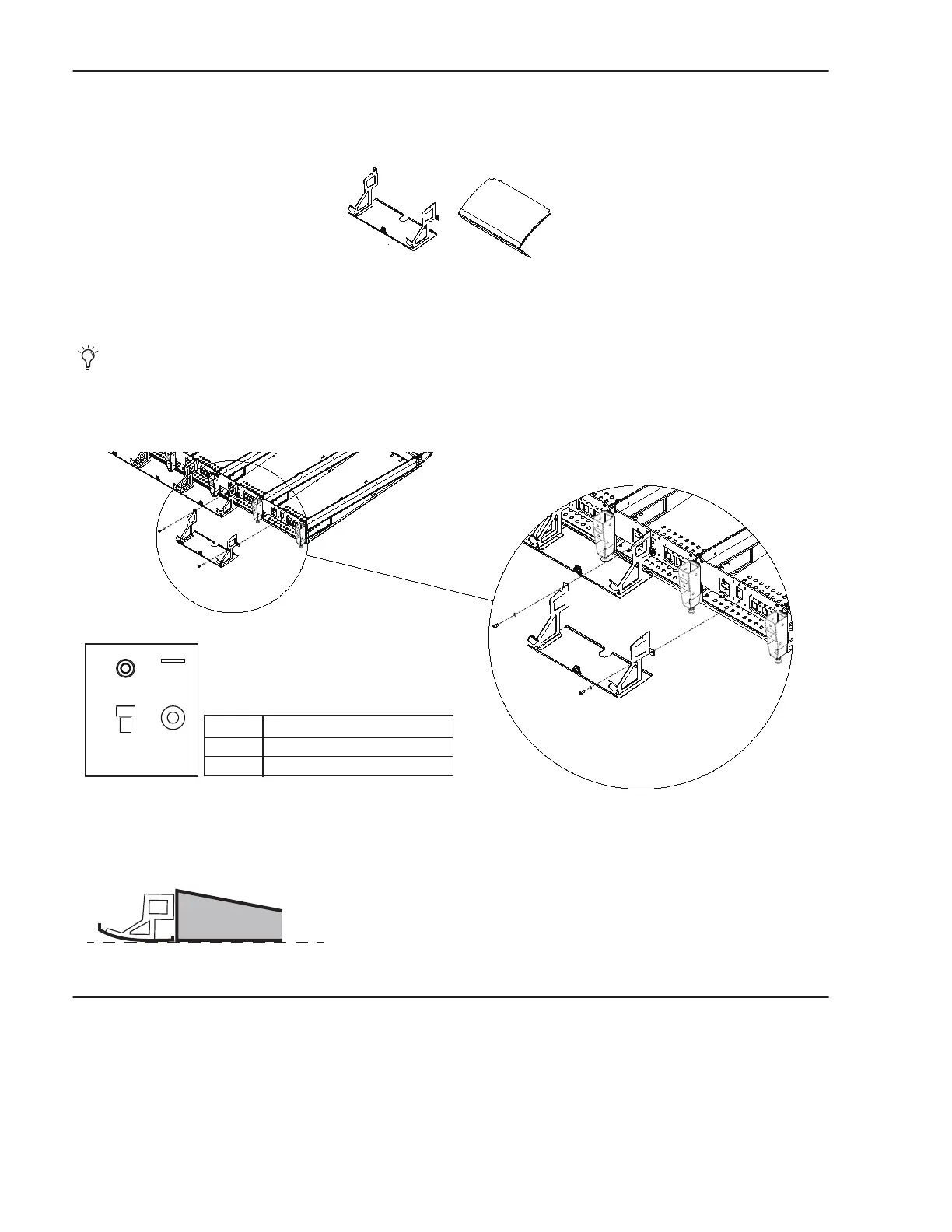

Figure 29. Rear Cover Mounting Bracket (left) and upper cover (right). Fasteners, Display Module Fillers, and cutouts not shown.
Each Rear Cover package also includes a Compression Panel, which is installed later. Set all Compression Panels aside for now.
Figure 30. Attaching Rear Cover Mounting Brackets (Display Module Mounting Brackets not shown)
Figure 31. Side view showing proper alignment of Rear Panel to back of chassis
(Not to scale)
M5x8 SHCS (7760-30593-00)
Fastener
M5 WSHR (7760-30607-00)
Washer
M4 Hex
Tool
