Attaching the Bolster
The Bolster is a one-piece reinforced arm rest that matches the width of your configuration. The wide, padded surface provides a
comfortable work area, and its one-piece design provides additional structural support along the front of the control surface. The
Bolster also provides a slot in which you can install the Keyboard Tray option.
The Bolster hangs along the front edge of the frame and is secured from below using fasteners.
To attach the Bolster:
1 Locate the Bolster and remove it from its packaging, being careful to locate the included fasteners.
2 Note the power cables included in the Bolster package. These are for the PSUs and Ethernet switch and will be installed later.
Set them aside.
3 Pick up the Bolster using both hands. When installing larger systems (6 or more chassis in width), get someone to help.
4 Make sure the Bolster is oriented correctly and carefully lower it onto the receiving edge along the top of the front edge of the
frame, so the Bolster hangs in position as shown in Figure 27.
5 Attach the Bolster to the frame from below by partially threading all the included Hex fasteners. Do not fully tighten the fasten-
ers yet.
6 After all fasteners are in place, return to the first fastener and tighten it and the others securely.

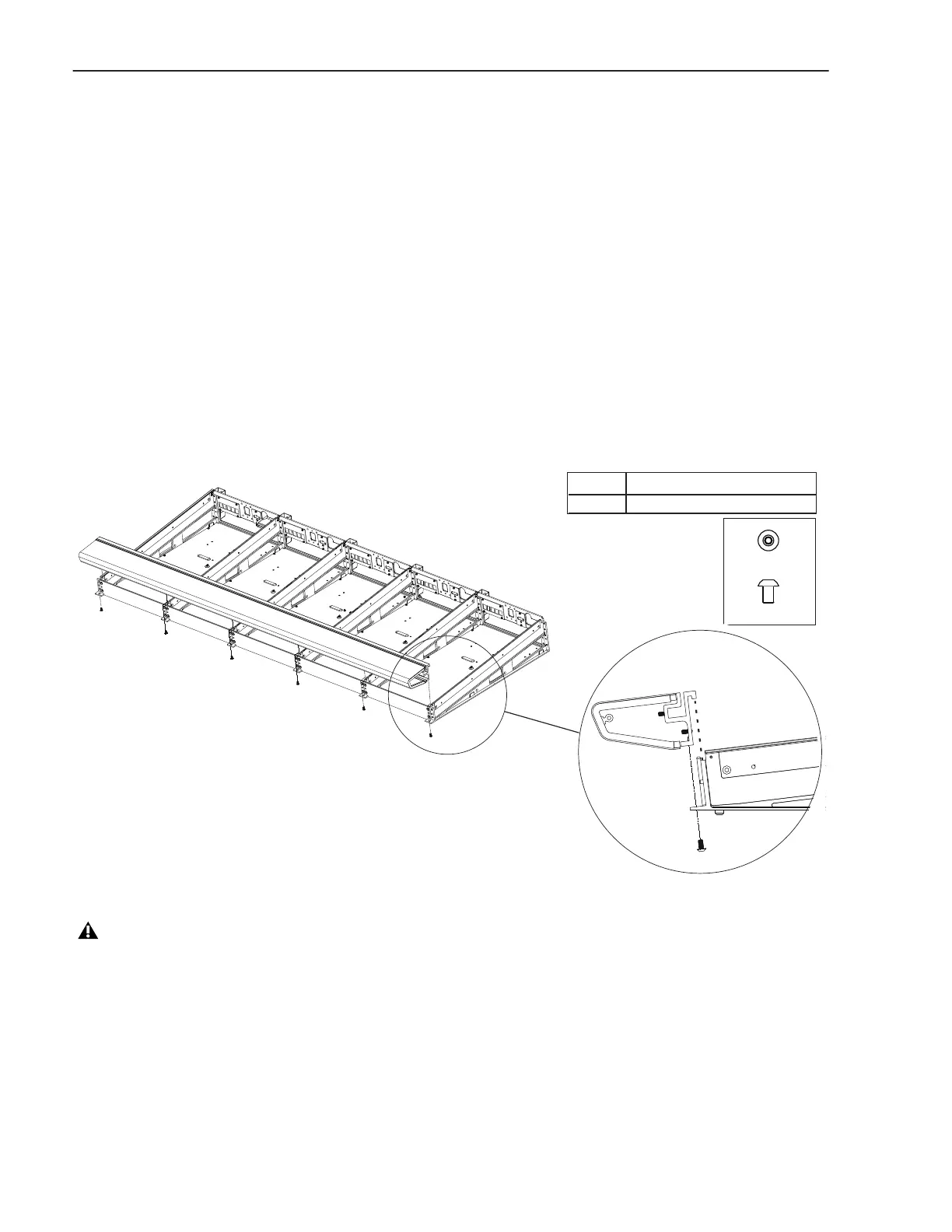

Figure 27. Attaching the Bolster
Never attempt to move or lift a frame (any size) by the Bolster, Side Covers or Rear Covers to avoid the risk of damage. Move or
lift by the frame (metal chassis) instead.
(Not to scale)
M5x10 BHCS (7760-30615-00)
Fastener
M3 Hex
Tool
To Next Page
