Chapter 4: Assembling Frame Chassis 27
• All other Back Feet are mounted to adjacent Back Tie Plates as shown in Figure 25.
Leveling the Chassis
After the feet are mounted to the frame, check that the chassis is level. If one or more feet are too short or too tall, raise or lower
them in order to level and support the back of the frame. You can adjust the feet using an M3 hex driver as shown in Figure 26.

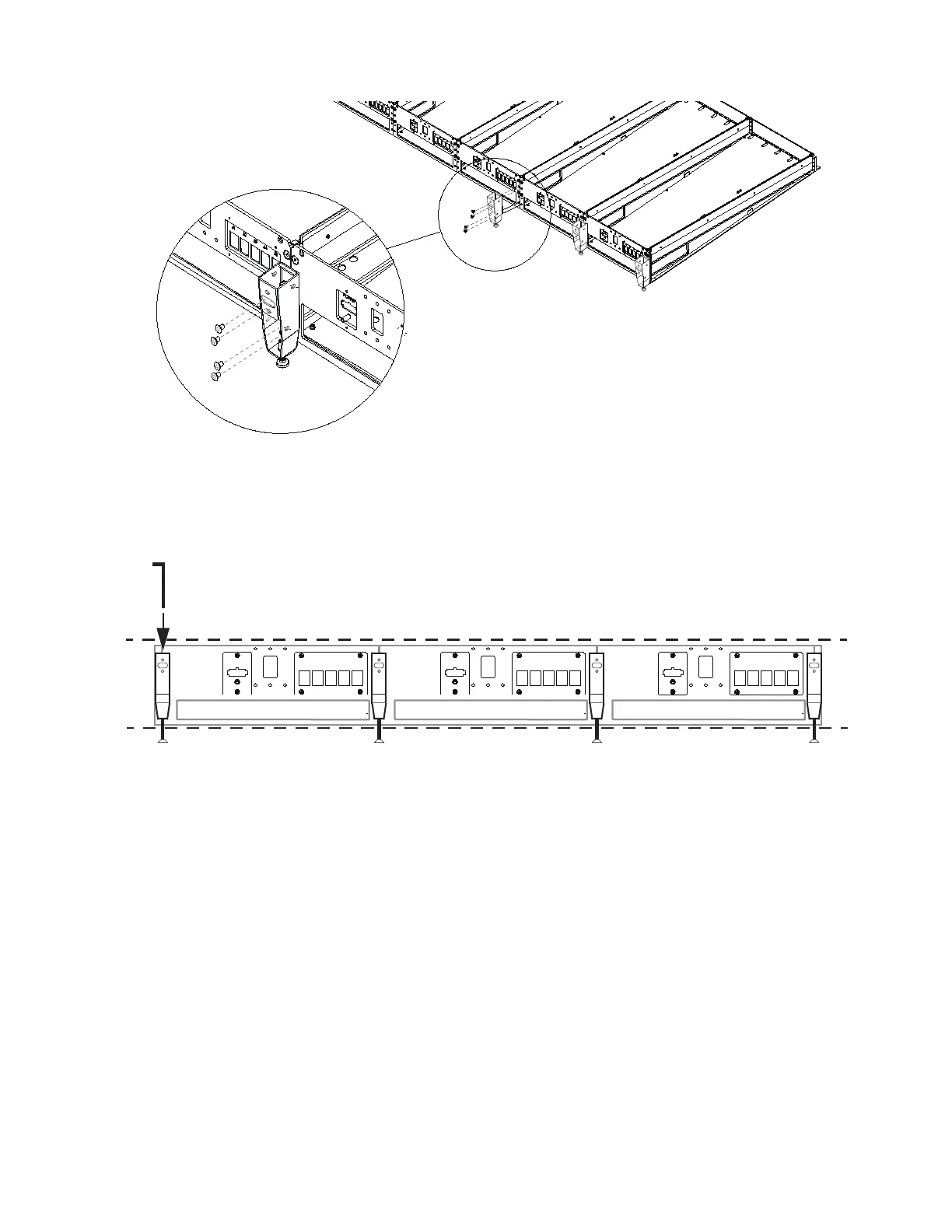

Figure 25. Attaching a Back Foot to two adjacent Back Tie Plates
Figure 26. Leveling the back feet
