Chapter 4: Assembling Frame Chassis 29
Installing Display Module Mounting Brackets
If your system includes Display Modules, install their mounting brackets as explained in the following instructions. (The Display
Modules are attached to the mounting brackets later.)
Display Modules can be added above channel strips, but not above a Master Module or Automation Module.
If your system does not include Display Modules, proceed to “Installing Rear Cover Mounting Brackets” on page 30.
If your system includes one or more Display Modules, do the following:
1 Unpack all Display Modules and locate their mounting brackets.
• Newer Display Module packages include two brackets, one smaller (S6) bracket that lets you position Display Modules lower
and closer to the back of the frame, and a larger (S4) bracket that lets you mount them higher and closer to the operator. If your
Display Module packages include both brackets it is recommended to use the smaller S6 brackets.
• Fasteners are included in a small bag taped to the bracket. Use the four flathead Hex fasteners to attach the brackets to the
chassis. Set the other four rounded fasteners aside (these will be used to attach the module to the brackets later).
2 Attach the first Display Module Mounting Bracket to the four holes located on the center of each channel chassis’ Back Tie Plate
using four flathead Hex fasteners. Be sure to orient the brackets correctly, as shown in Figure 28. Do not attach a Display Module
Mounting Bracket to the chassis that will contain your master section modules.
3 Repeat for other Display Modules, attaching their brackets to the back of each channel chassis.
4 Leave the actual Display Modules aside for now. You will attach them to the mounting brackets later.

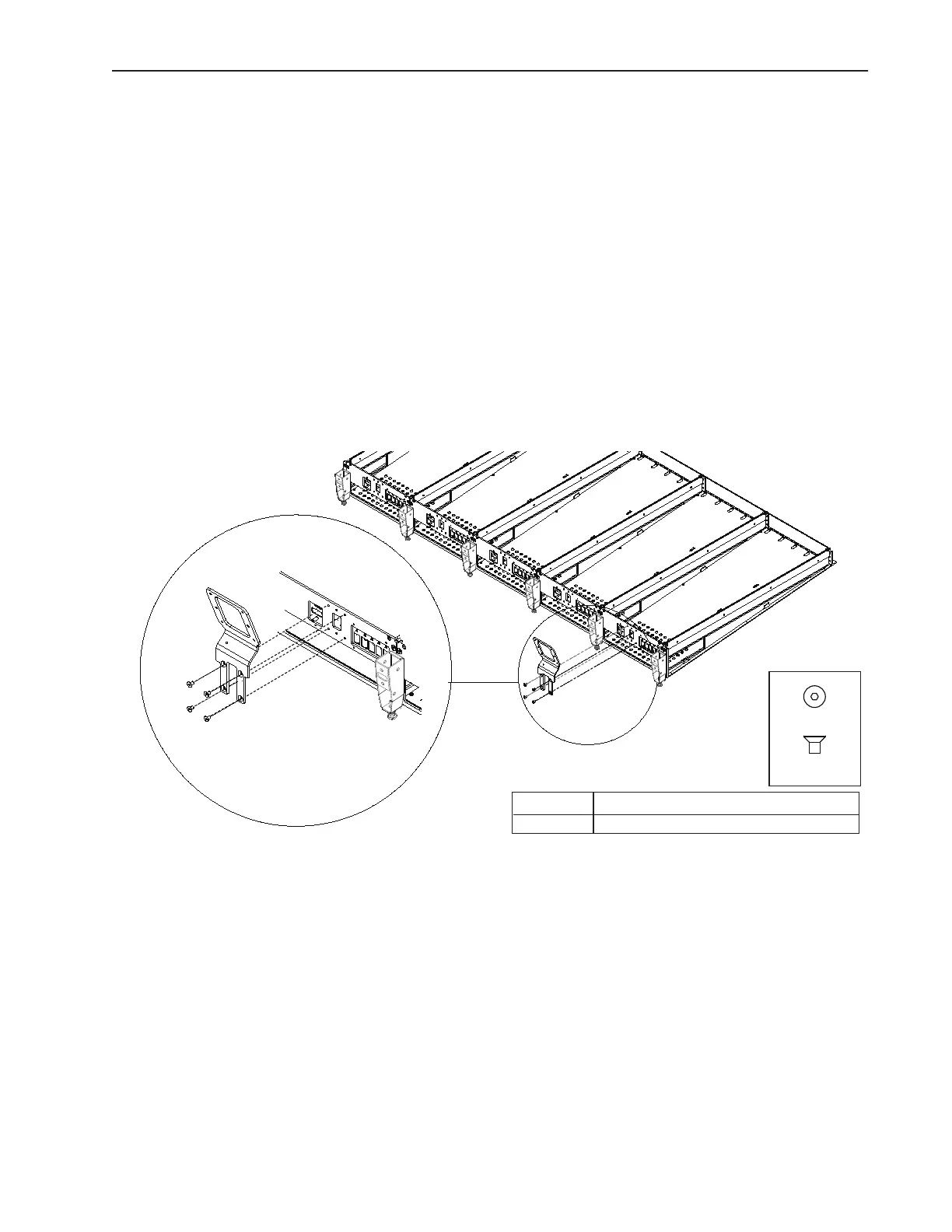

Figure 28. Attaching Display Module Mounting Brackets
(Not to scale)
M 5x8 FH (7760-30553-00)
Fastener
M3 Hex
Tool
