Avid S6 Installation Guide20
Frame Chassis Kit Components
Frame Chassis Kits are either Large (extended depth) or Small (reduced depth). The contents of both kits are the same.
1 – Chassis (See Figure 12)
2 – Back Foot
3 – Tie-down Bracket for PSU
4 – T-strip
5 – Display Module Filler
6 – Cable Harnesses (not shown)
7 – Fasteners: Phillips and Hex fasteners (not shown)
A – Chassis Bottom Plate
B – Back Tie Plate
C – Side Wall
D – Front Tie Plate
E – Cable Harnesses (Ethernet/Power)
Producers Desk Components
The Producers Desk option adds two chassis, one “standard” chassis (Small or Large) and one special Inlay Chassis (Small or
Large).
• The standard chassis kit is identical to the chassis shown in Figure 11 and Figure 12.
• The Inlay Chassis kit is nearly identical, except for its special cutaway Side Wall and two-piece T-strip.
Other components of the Producers Desk include the Inlay Module panel, Fill Panels, Rear Covers and Compression Panels, Cable
Sets, and fasteners. Instructions for these components appear throughout this guide when relevant. For now, locate the Inlay Chas-
sis kit, then decide where you want to place the Producers Desk in the system relative to channel and master sections. (For guide-
lines and examples, see “If Your System Includes a Producers Desk” on page 35.)

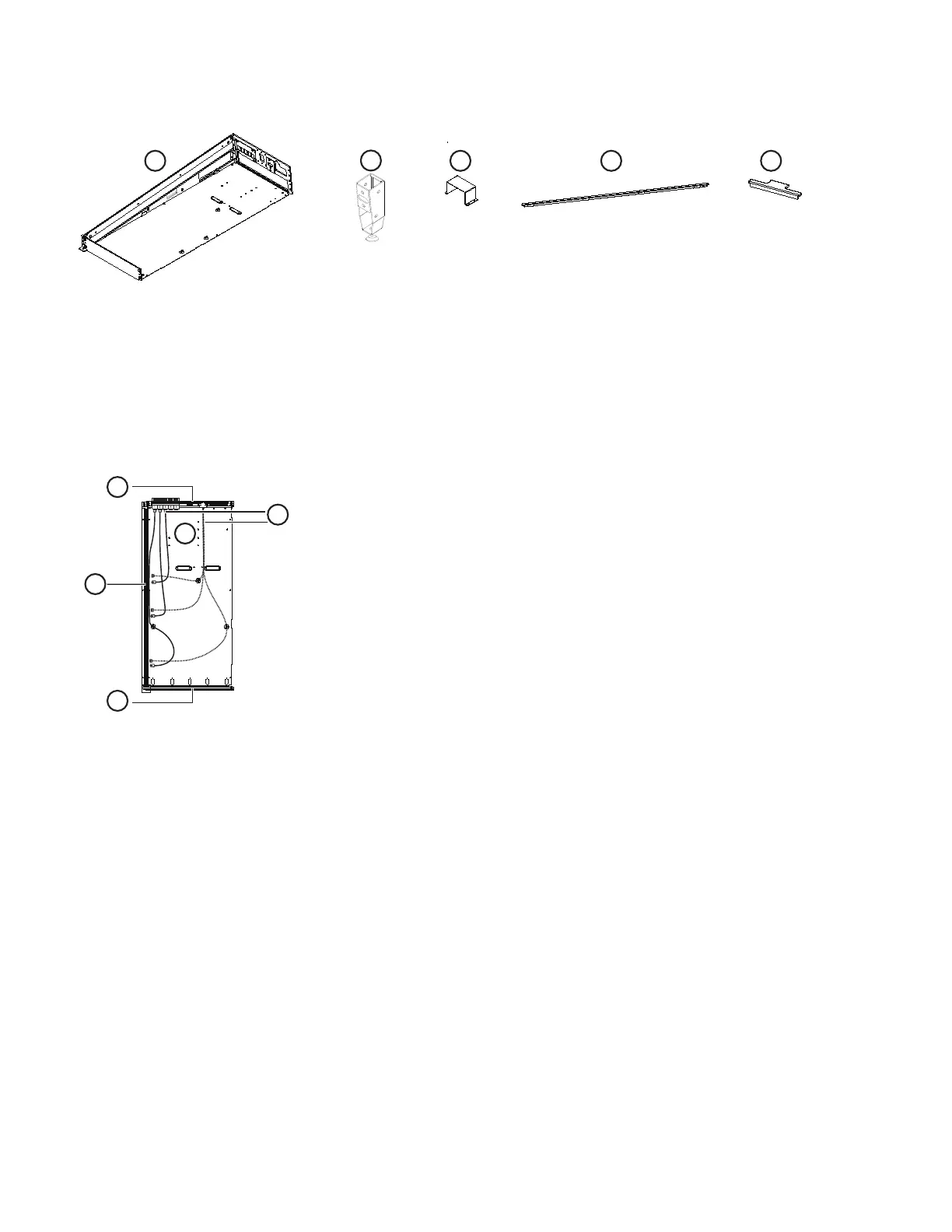

Figure 11. Frame Chassis kit components (Cable Harnesses not shown)
Figure 12. Chassis parts
41
2
3 5
C
A
B
D
E
