Avid S6 Installation Guide40
Connecting Power Cables to the PSUs
To connect power to PSUs:
1 If you have not already done so, feed the DC power cable from each PSU out through the opening in the Back Tie Plate as shown
in Figure 15.
2 Connect the cable terminal end from the outside back of the chassis to the power terminal connector on the Back Tie Plate as
shown in Figure 16. Use a small flathead screwdriver to secure the plug to the terminal.
3 Do the following to connect power to the chassis containing the Ethernet switch (see Figure 17):
• In the chassis with two PSUs, feed the DC cable of the second PSU through the largest opening in the Back Tie Plate, then run
the cable across to the chassis with the switch.
• Attach the terminal end to the power terminal connector on the Back Tie Plate of that chassis and secure it with a flathead
screwdriver.

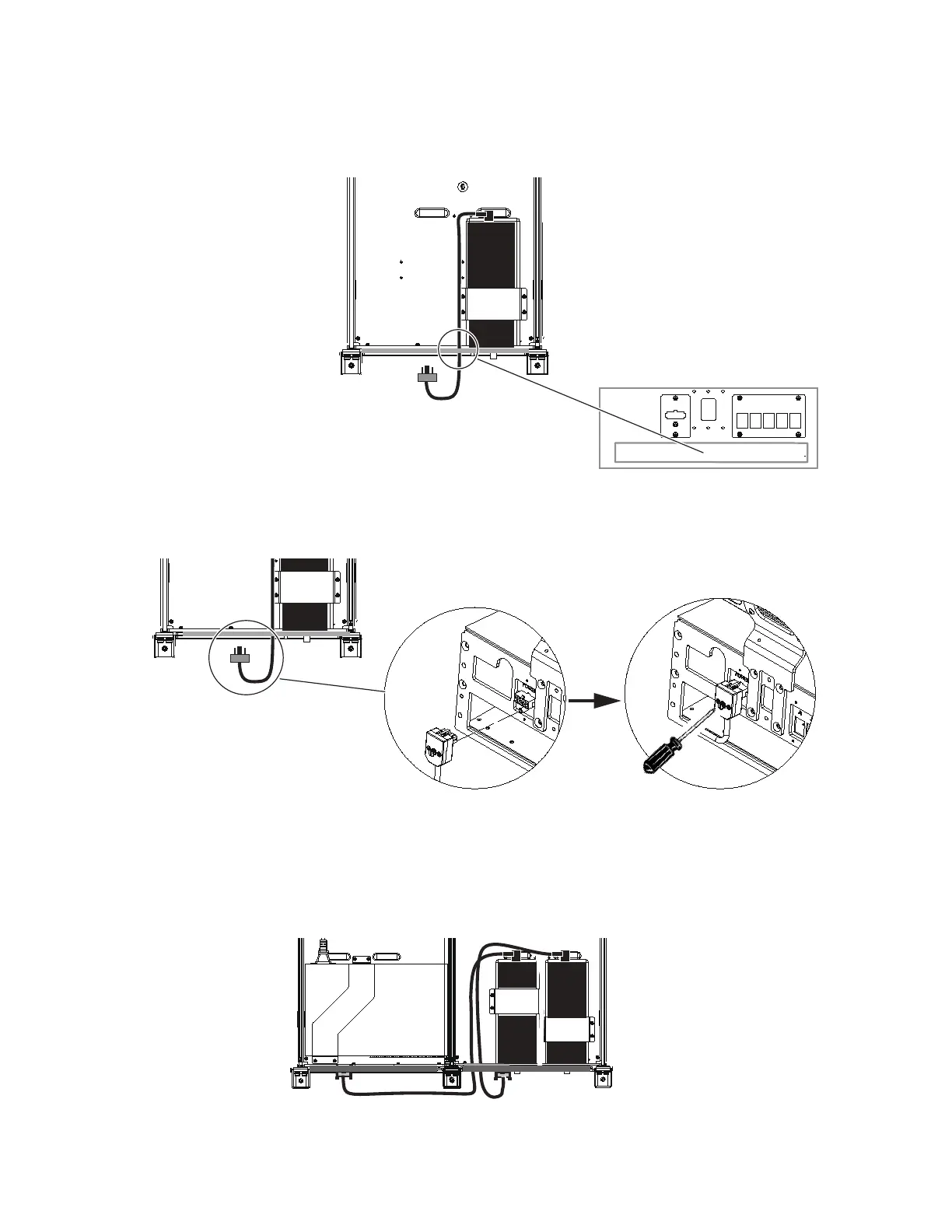

Figure 15. Power cable terminal through the Back Tie Plate
Figure 16. Connecting the cable terminal at the Back Tie Plate
Figure 17. Routing power cables to a chassis with an Ethernet switch
