IFD400 Series Pilot Guide
Map Subsystem 3-45
depicted in white, and inactive missed approach legs are shown in
dashed white.
The waypoint is shown displayed as a magenta flag pole. Downpath
waypoints are not depicted in order to reduce map clutter. Fly-over
waypoints typically depict the flight plan flying right through/over the
waypoint whereas fly-by waypoints can turn inside the waypoint.
Airports and obstacles are also depicted on the SVS view.

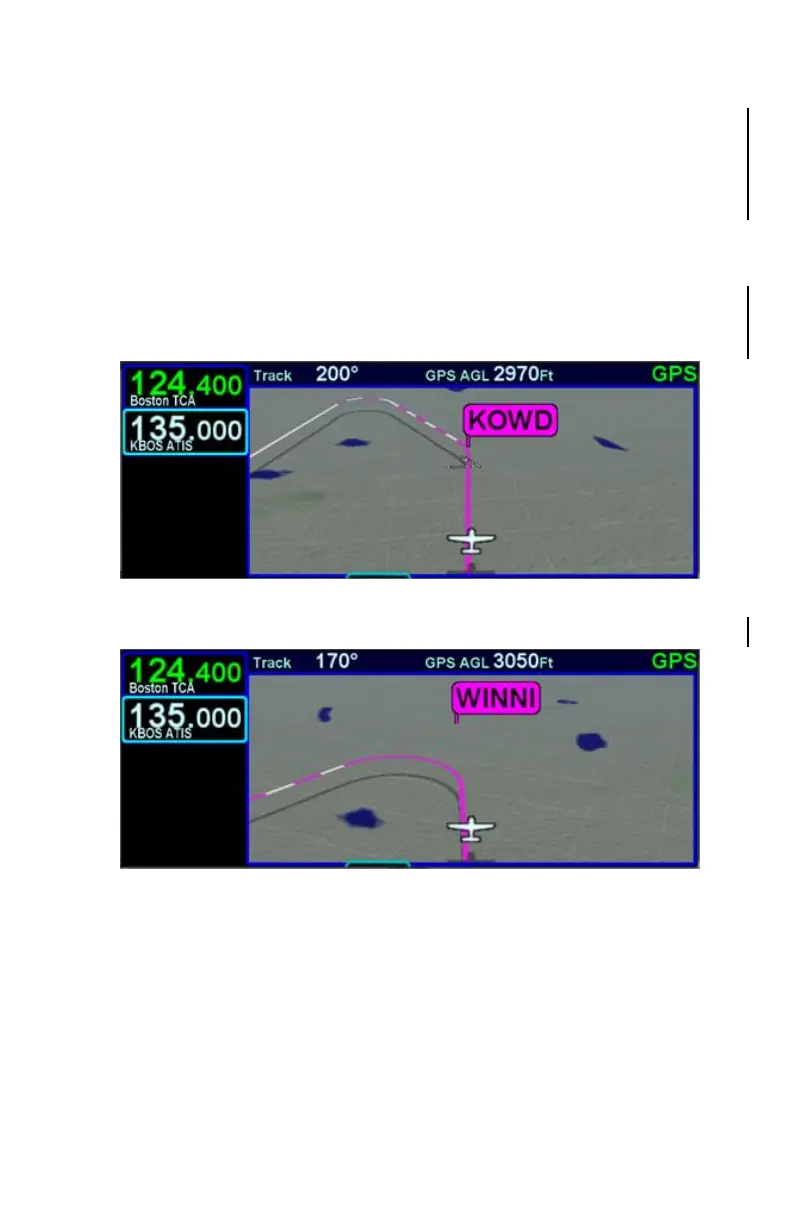

Map SVS - Curved Flight Path with Next Leg Depiction
Map SVS - Fly By Waypoint Depiction
