IFD400 Series Pilot Guide
General 6-75

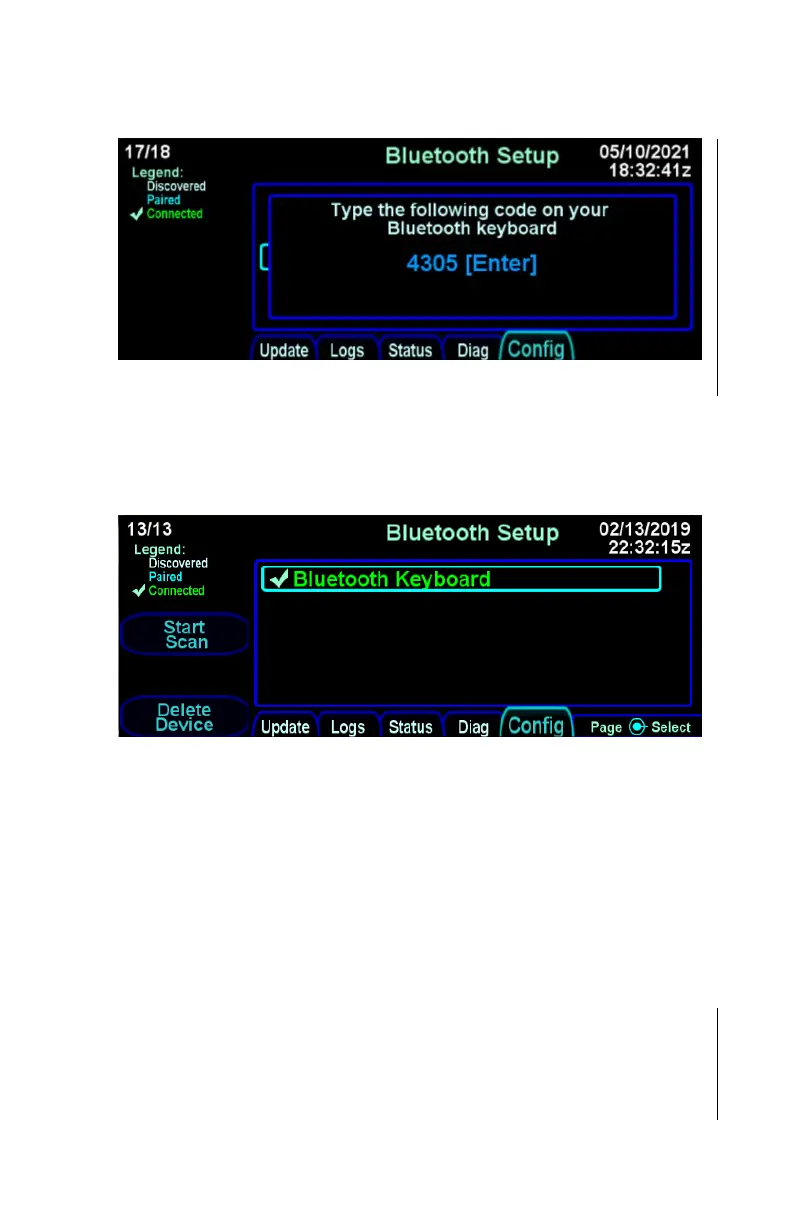

Bluetooth pairing - pairing code
On the keyboard, enter the numeric code followed by the ENTR
key. If pairing was successful, the selected device in the list will
be shown in green.
Bluetooth pairing - pairing successful
If the device is not shown in green or if the device name
disappears from the display, restart the pairing process with
pressing the button on the back of the keyboard. If repeated
attempts to pair are unsuccessful, contact Avidyne Technical
Support.
After successful pairing, exit maintenance mode by pressing the
"Done" LSK on the Update tab.
VERIFICATION OF SUCCESSFUL PAIRING
Start the IFD in flight mode and then go to the Connectivity
category in the Setup Page. Ensure that the Bluetooth option is
“On” and then verify that the Bluetooth symbol in the upper right
corner of the display is green (this may take several seconds).
