IFD400 Series Pilot Guide
4-38 Aux Subsystem

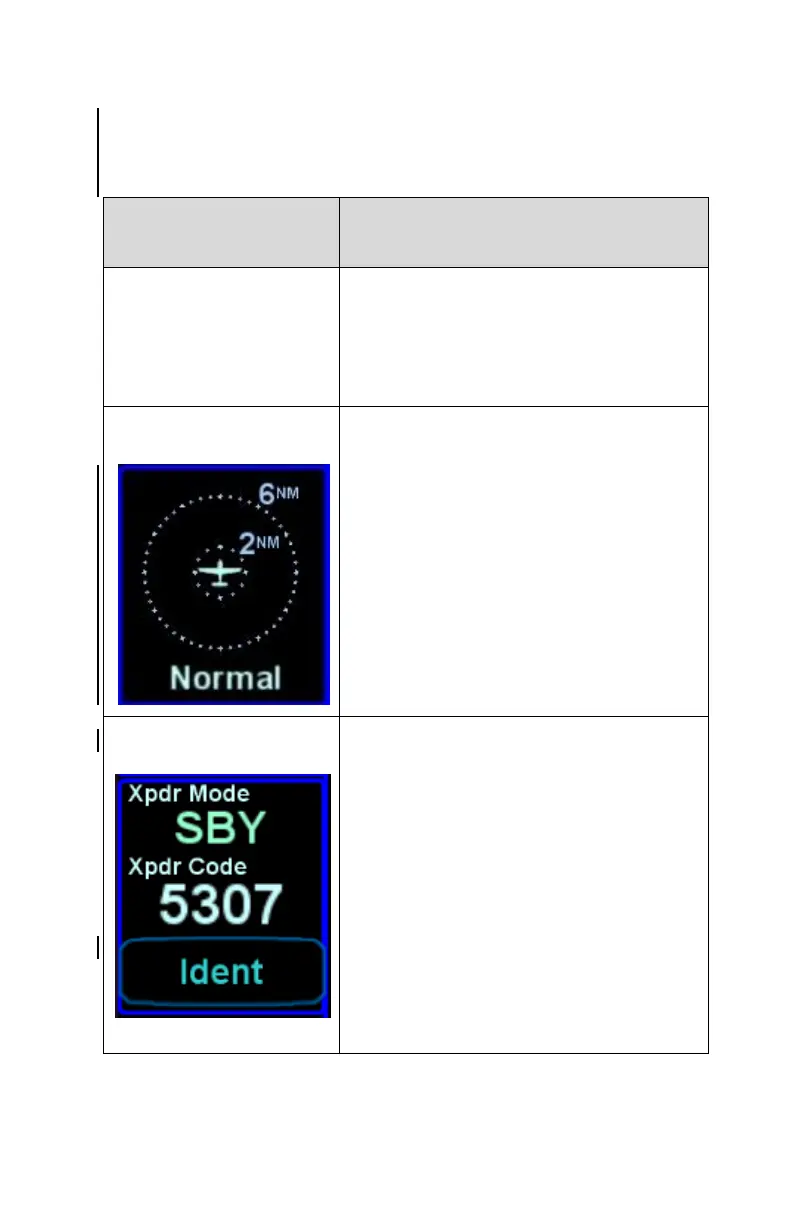

Potential datablock selections are listed below. When selected
for a slot at the top of the screen, the format of some datablocks
will change to fit in the limited space available.
Datablock Item Title
and Image
Primary Com/VLOC
(Note: This selection is
permanently grayed out
and is not actually
selectable)†
Defines the position of the top two
datablocks along the left side. These
are permanently dedicated to
Com/VLOC control and display.
A thumbnail depiction of the traffic
sensor output. The range rings can be
adjusted by touching the upper 2/3 of
the block and the mode (e.g. Normal,
Above, Below, etc) can be toggled by
either using the adjacent bezel LSK (if
on the left side of the IFD) or by
touching the lower 1/3 of the block.
When on the left side, only available in
a fixed location aligned with the top
line select key.
Provides a means to display and
control the remote transponder mode
and code as well as a Reply lamp.
The Ident function will be performed by
touching the Ident soft key. Touching
the mode or code will produce the
transponder specific keyboard for data
entry.
