AVM FRITZ!Box 7590 AX User Manual

Instructions: Connecting an Analog Telephone

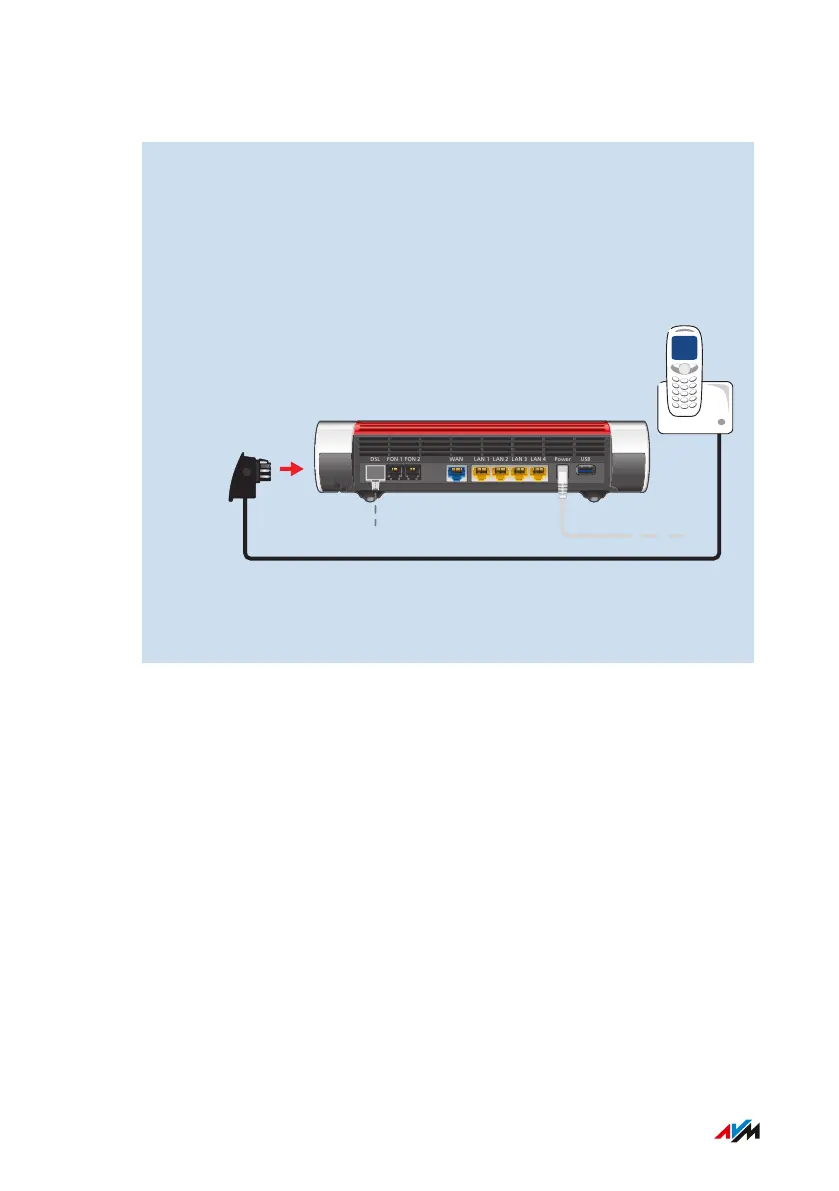

1. Connect the telephone, the answering machine or the fax ma-
chine to a FON 1 socket. Use only one FON 1. One of the two
sockets must remain free.
Some countries have telephone connectors specific to their net-
works. The FRITZ!Box package can include an adapter for con-
necting telephones.
USBPowerLAN 4LAN 3LAN 2LAN 1WANFON 2FON 1DSL
2. Configure the telephone in the FRITZ!Box user interface; see
page85.
FRITZ!Box 7590 AX 81
Connecting Telephones
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

AVM FRITZ!Box 7590 AX Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2400 Mbit/s
WLAN data transfer rate (first band)	1200 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN interface type	Gigabit Ethernet
Mobile network generation	-
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Product type	Tabletop router
Product color	White
LED indicators	DSL, WLAN, WPS
Power source type	AC
Power consumption (typical)	16 W
Cables included	DSL, LAN (RJ-45)
Package type	Box
Package depth	68 mm
Package width	305 mm
Package height	240 mm
Package weight	1125 g
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Width	250 mm
Height	48 mm
Weight	840 g
