9.7 Ladder Logic Tab

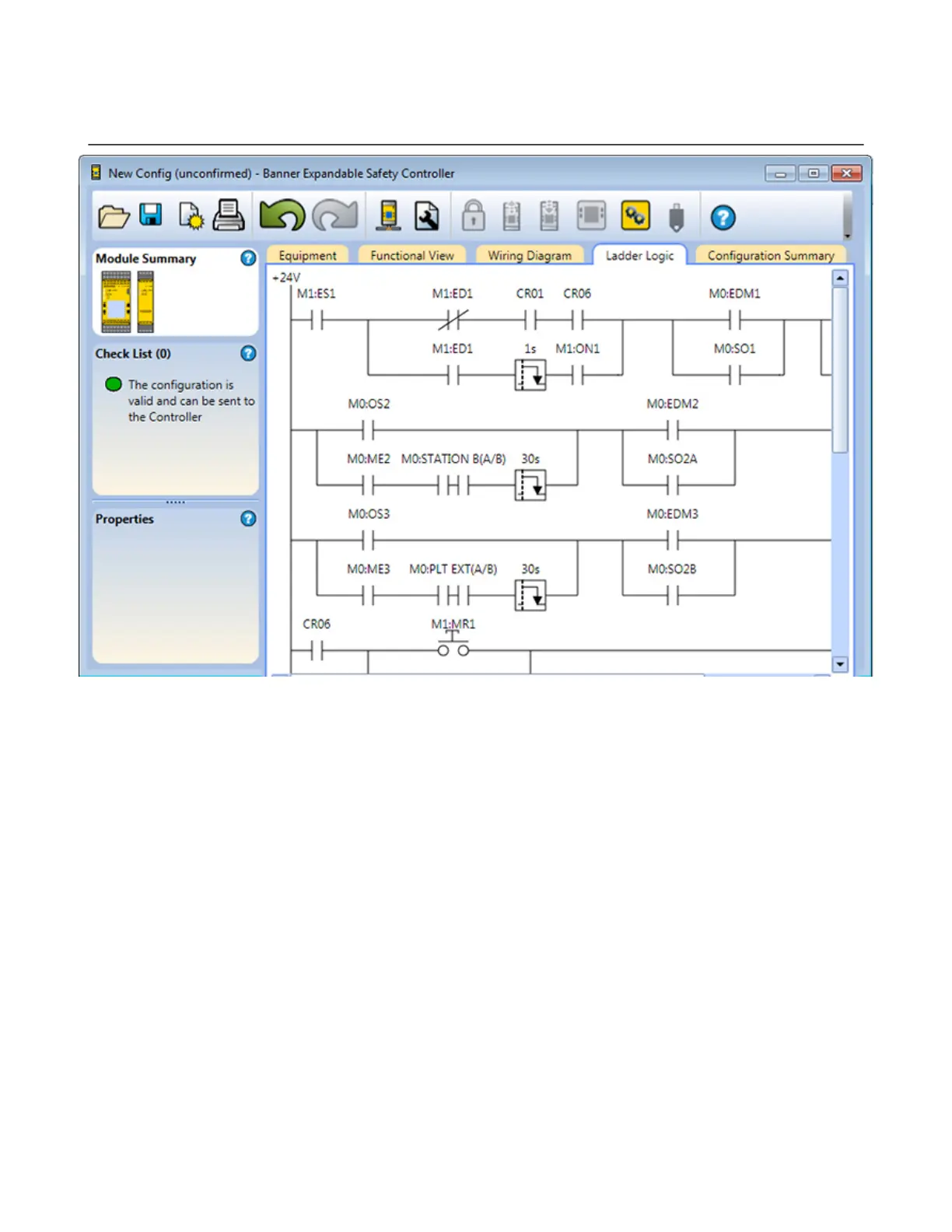

Figure 86. Ladder Logic Tab
The Ladder Logic tab displays a simplified relay logic rendering of the configuration.
XS/SC26-2 and SC10-2 Safety Controllers
www.bannerengineering.com - Tel: + 1 888 373 6767 101
