9.3 Project Settings

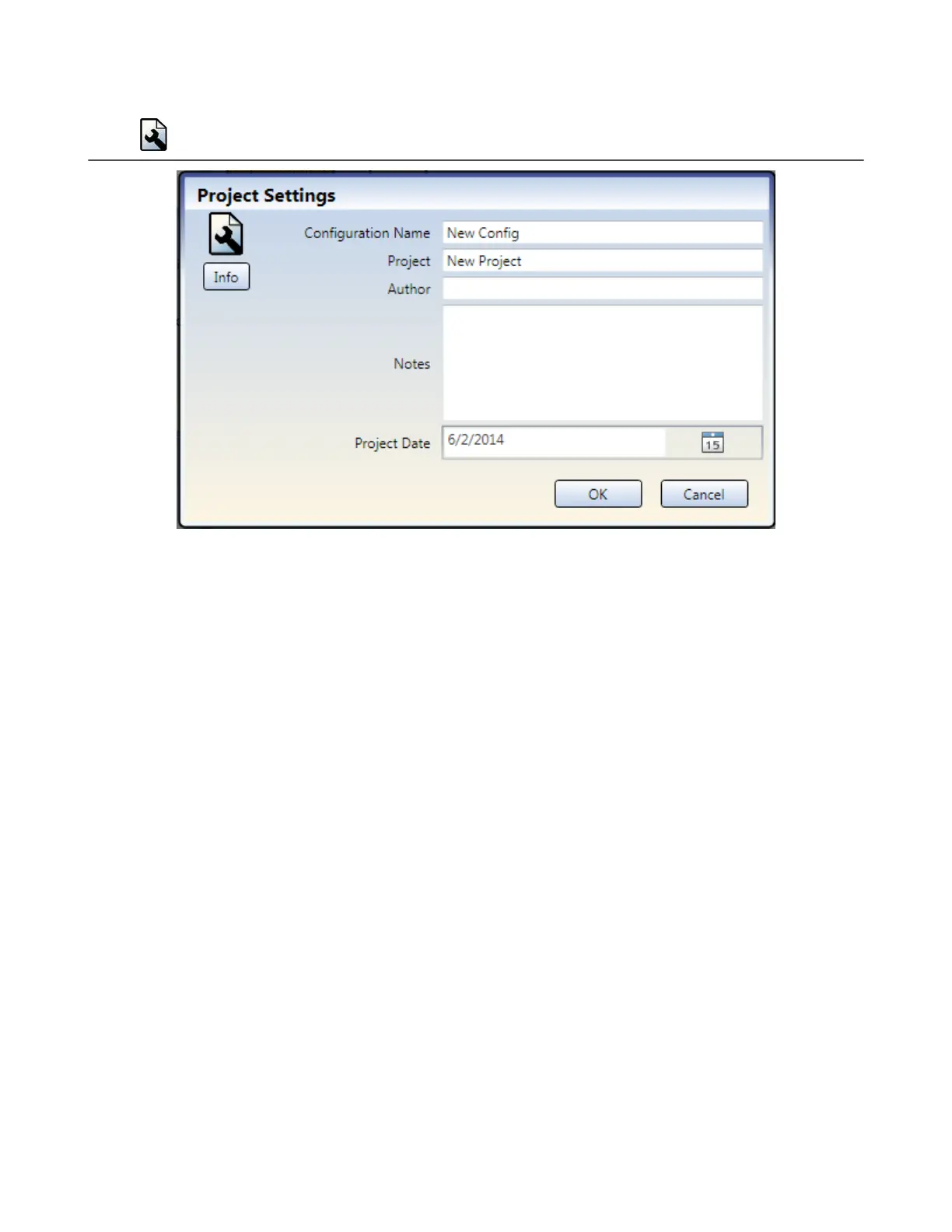

Figure 52. Project Settings
Each configuration has an option to include additional project information for easier differentiation between multiple
configurations. To enter this information click Project Settings.
Configuration Name
Name of the
configuration; displayed on the Safety Controller (models with display); different from file name.
Project
Project name; useful for distinguishing between various application areas.
Author
Person designing the
configuration.
Notes
Supplemental information for this configuration or project.
Project Date
Date pertaining to the project.
Disable Automatic Terminal Optimization Feature (SC10-2 only)
Enable or disable Automatic Terminal Optimization, which allows for the expansion of the number of inputs using
an external terminal block (ETB).
XS/SC26-2 and SC10-2 Safety Controllers
www.bannerengineering.com - Tel: + 1 888 373 6767 75
