9.14 Live Mode
Live Mode is available when a Safety Controller is connected to the PC via USB.

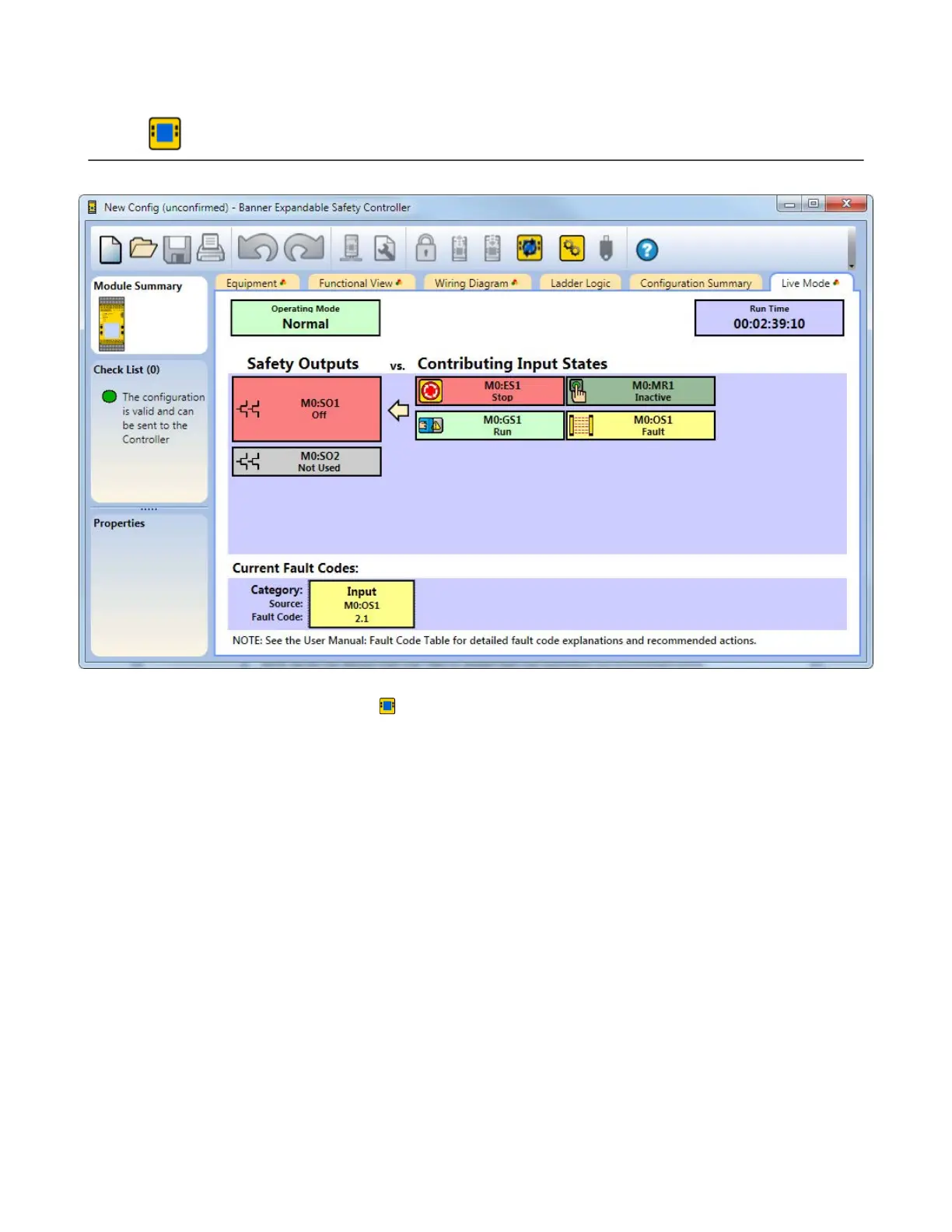

Figure 95. Run Time—Live Mode Tab
The Live Mode tab becomes accessible when
Live Mode is clicked on the toolbar. Enabling Live Mode disables
configuration
modification on all other tabs. The Live Mode tab provides additional device and fault information, including a
fault code (see
XS/SC26-2 Fault Code Table
on page 148 and
SC10-2 Fault Code Table
on page 151 for the description
and possible remedies). The Run-time data is also updated on the Functional View, Equipment, and Wiring Diagram tabs
providing the visual representation of the device states.
