9.15 Simulation Mode

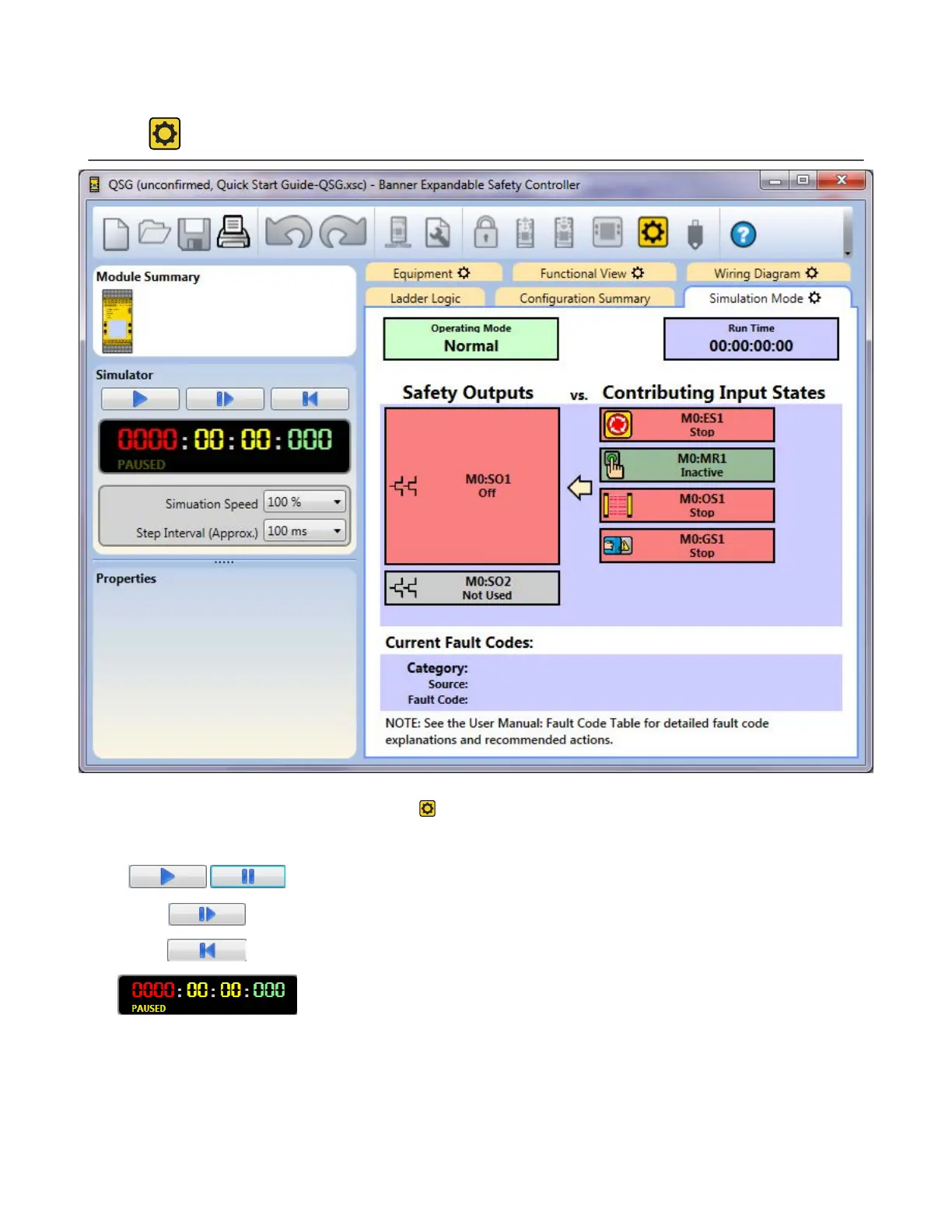

Figure 99. Simulation Mode
The Simulation Mode tab becomes accessible when
Simulation Mode is clicked on the toolbar. Simulation Mode options
become available on the left side of the screen. The Simulation Mode tab contains view only information; you cannot click
on the output or input items in this view.
[Play/Pause] Starts the simulation time running at the specified simulation speed or
temporarily stops the simulation time.
[Single Step] Advances the simulation time at the
specified step interval.
[Reset] Resets the timer to zero and the equipment to the initial stop state.
[Timer] Displays elapsed time in hours, minutes, seconds, and thousandths of a
second.
Simulation Speed—Sets the speed of the simulation.
• 1%
•
10%
• 100% (default speed)
• 500%
• 2,000%
