9.5 Functional View Tab

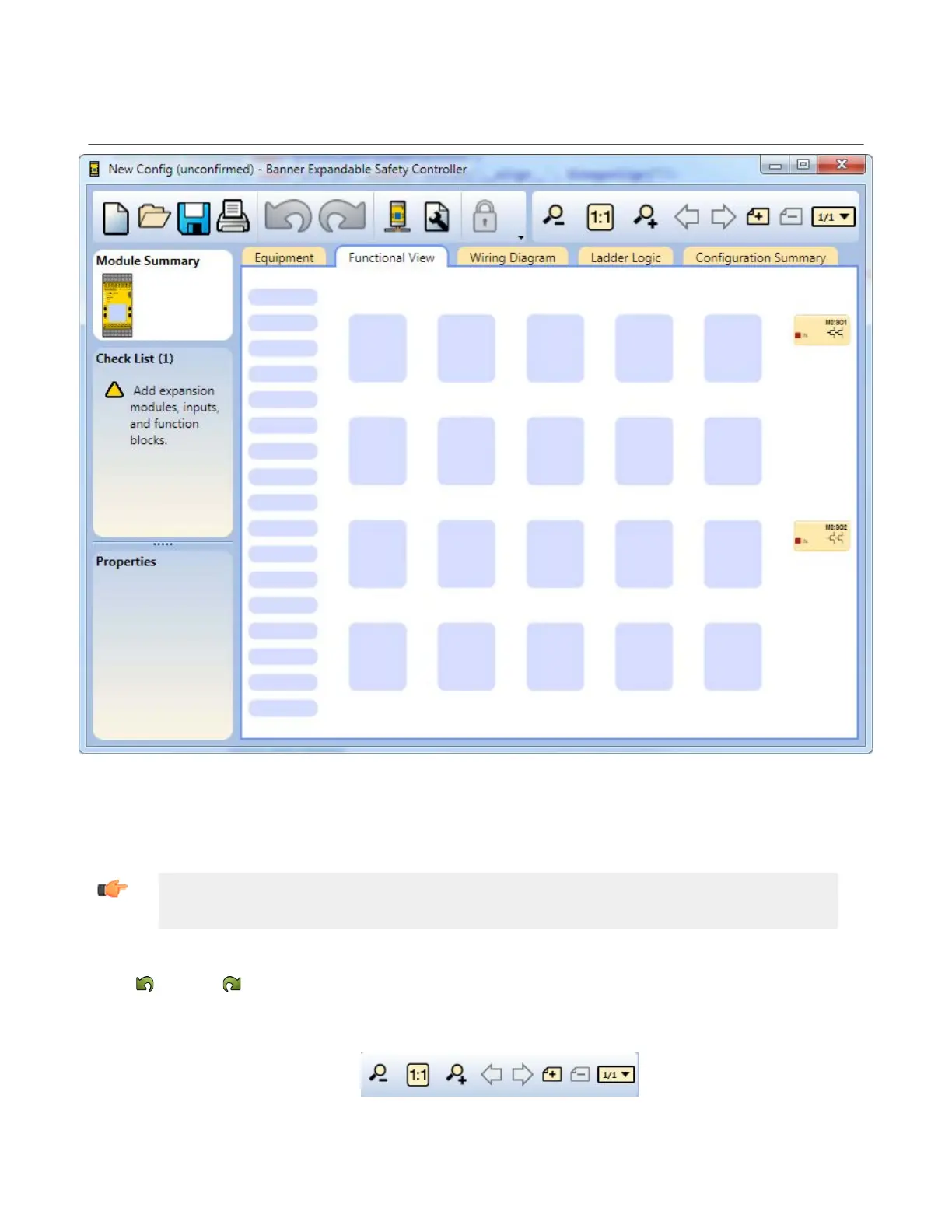

Figure 56. Functional View Tab
The Functional View tab is used to create the control logic. The left column of the Functional View tab is used for Safety and
Non-Safety Inputs; the middle area is used for Logic and Function Blocks and the right column is reserved for Safety
Outputs. Safety and Non-Safety Inputs can be moved between the left and middle areas. Function and Logic Blocks can
only be moved within the middle area. Outputs are placed statically by the program and cannot be moved. Reference
blocks of any type can be placed anywhere within the left and middle areas.
Important: The Banner Safety Controller Software is designed to assist in creating a valid configuration,
however, the user is responsible for verifying the integrity, safety, and functionality of the configuration by
following the
Commissioning Checkout Procedure
on page 125.
On the Functional View tab you can:
•
Customize the look of the diagram by repositioning inputs, Function Blocks, and Logic blocks
•
Undo and Redo up to 10 most recent actions
•
Add additional pages for larger configurations using the page navigation toolbar (see
Figure 57
on page 77)
• Zoom in and out of the diagram view, or automatically adjust it to the best ratio for the current window size (see
Figure 57
on page 77)
Figure 57. Page Navigation and Diagram Size toolbar
• Navigate between pages by clicking the left and right arrows within the page navigation area in the top right corner
of the Software
XS/SC26-2 and SC10-2 Safety Controllers
www.bannerengineering.com - Tel: + 1 888 373 6767 77
