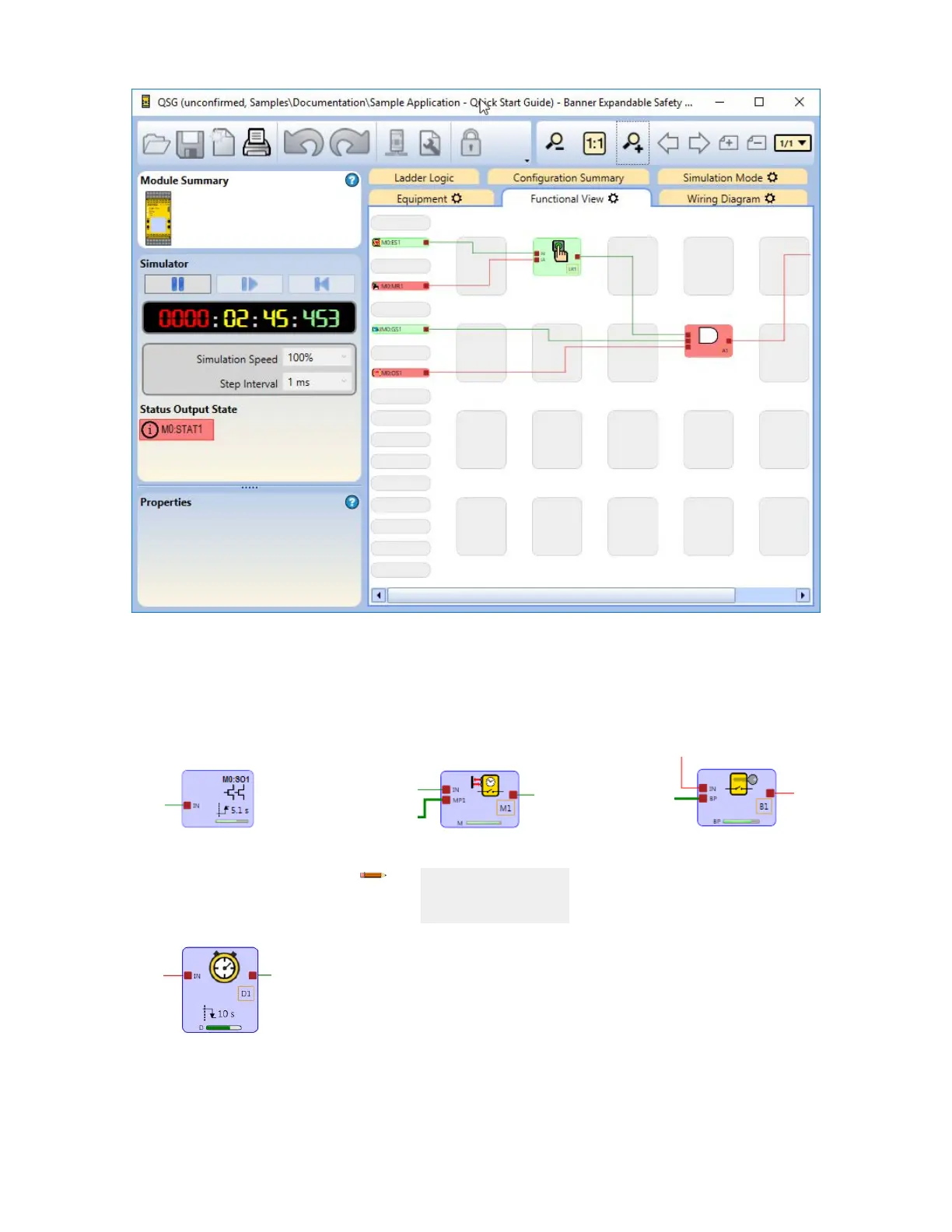

Figure 102. Simulation Mode—Functional View Tab
9.15.1 Timed Action Mode
While in Simulation Mode and on the Functional View tab, certain elements which are in delay action modes are indicated in
purple. The progress bar shows the countdown of the associated timer for that element.
The following figures show the different element states:
Figure 103. Safety output in Delay Off Timing
mode
Figure 104. Muting Block in Timed Muting mode
Note: The M next to the
progress bar indicates
Timer Muting.
Figure 105. Bypass Block in Timed Bypass mode
Figure 106. Delay Block—XS/SC26-2 FID 2 Base
Controllers only and SC10-2
XS/SC26-2 and SC10-2 Safety Controllers
www.bannerengineering.com - Tel: + 1 888 373 6767 121
