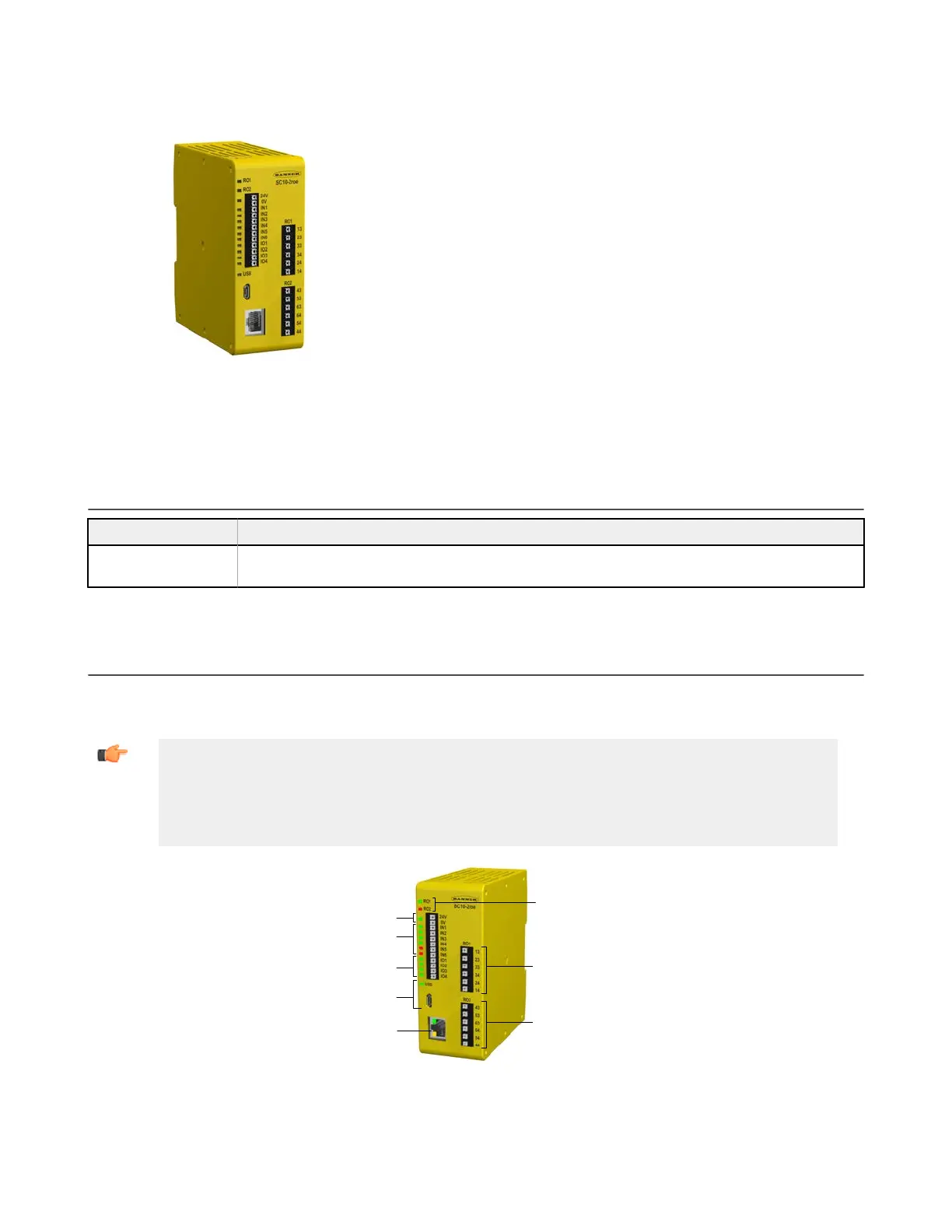

4 SC10-2 Overview
Figure 5. SC10-2 Safety Controller
Banner's SC10-2 configurable safety relay controller is an easy-to-use
and cost effective alternative to safety relay modules. It replaces the
functionality and capability of two independent safety relay modules while
offering the configurability, simplicity, and advanced diagnostics
capabilities offered by the rest of the Banner Safety Controller line-up.
Intuitive, icon-based programming with drag-and-drop PC
configuration simplifies device setup and management
Two six-amp safety relay outputs, each with three N.O. sets of
contacts
Ten inputs, including four that can be used as non-safe outputs
Automatic Terminal Optimization (ATO) can increase the inputs
from 10 to up to 14
Industrial Ethernet two-way communication
256 virtual non-safe status outputs
80 virtual non-safe inputs (reset, on/off, cancel off-delay,
mute enable)
SC-XM3 external drive for fast swap and quick configuration
without a PC (see
SC10-2 Using the SC-XM3
on page 141)
4.1 SC10-2 Models
Model Description
SC10-2roe Configurable
safety relay controller - 10 inputs (4 convertible), two 3-channel safety relay outputs,
industrial ethernet
4.2 SC10-2 Features and Indicators
Connection points are push-in spring clamp connectors.
Wire Size: 24 to 14 AWG, 0.2 mm² to 2.08 mm²
Important: Clamp terminals are designed for one wire only. If more than one wire is connected to a
terminal, a wire could loosen or become completely disconnected from the terminal, causing a short.
Use a stranded wire or a wire with an accompanying ferrule. Tinned wires are not recommended.
After inserting the wire into the terminal, tug the wire to make sure it is properly retained. If the wire is not
retained, consider using a different wiring solution.
Micro USB & LED
4 Safe Inputs & LEDs
or
4 Non-Safe Outputs & LEDs
6 Safe Inputs & LEDs
Power & LED
Ethernet Port
RO1 and RO2 LEDs
Relay Output 1 (RO1)
• 6 Amps Total 240Vac / 24 Vdc
• 3 NO sets of contacts
Relay Output 2 (RO2)
• 6 Amps Total 240Vac / 24 Vdc
• 3 NO sets of contacts
Figure 6. Features and Indicators
XS/SC26-2 and SC10-2 Safety Controllers
www.bannerengineering.com - Tel: + 1 888 373 6767 13
