9.4 Equipment Tab

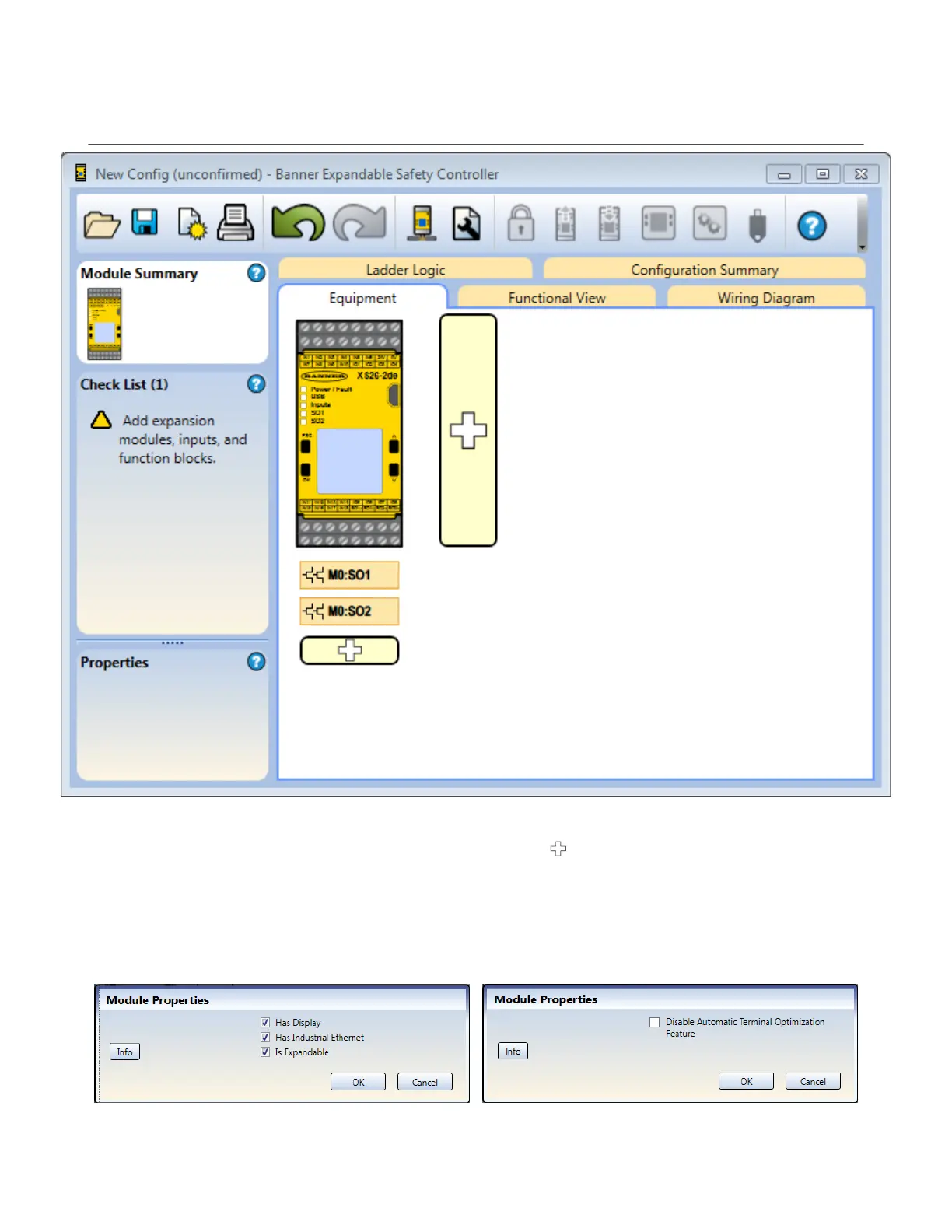

Figure 53. Example XS/SC26-2 Equipment Tab
XS/SC26-2: The Equipment tab is used to select the base model, add the expansion modules (input and output), and add
input devices and status outputs. Add the expansion modules by clicking
to the right of the Base Controller module.
SC10-2: The Equipment tab is used to add input devices and status outputs.
Customize the Base Controller module or SC10-2 by either double-clicking the module or selecting it and clicking Edit
under the Properties table on the left and selecting the appropriate Safety Controller features (display, Ethernet,
expandability, Automatic Terminal Optimization). The properties of Safety and Non-Safety inputs, Status Outputs, Logic
Blocks, and Function Blocks are also configured by either double-clicking the block or selecting it and clicking Edit under
the Properties table. Clicking the block the second time de-selects it.
Figure 54. XS/SC26-2 Module Properties Figure 55. SC10-2 Module Properties
XS/SC26-2 and SC10-2 Safety Controllers
76 www.bannerengineering.com - Tel: + 1 888 373 6767
