Barco ClickShare CB Core Installation Manual

23R5917517 /00 ClickShare CB Core, CB Pro
4.2 Physical installation
4.2.1 Install standing on its wall mount
Standing on its wall mount
1. Place the Base Unit in the desired location.
2. Tilt the Base Unit to achieve the desired angle. (optional)

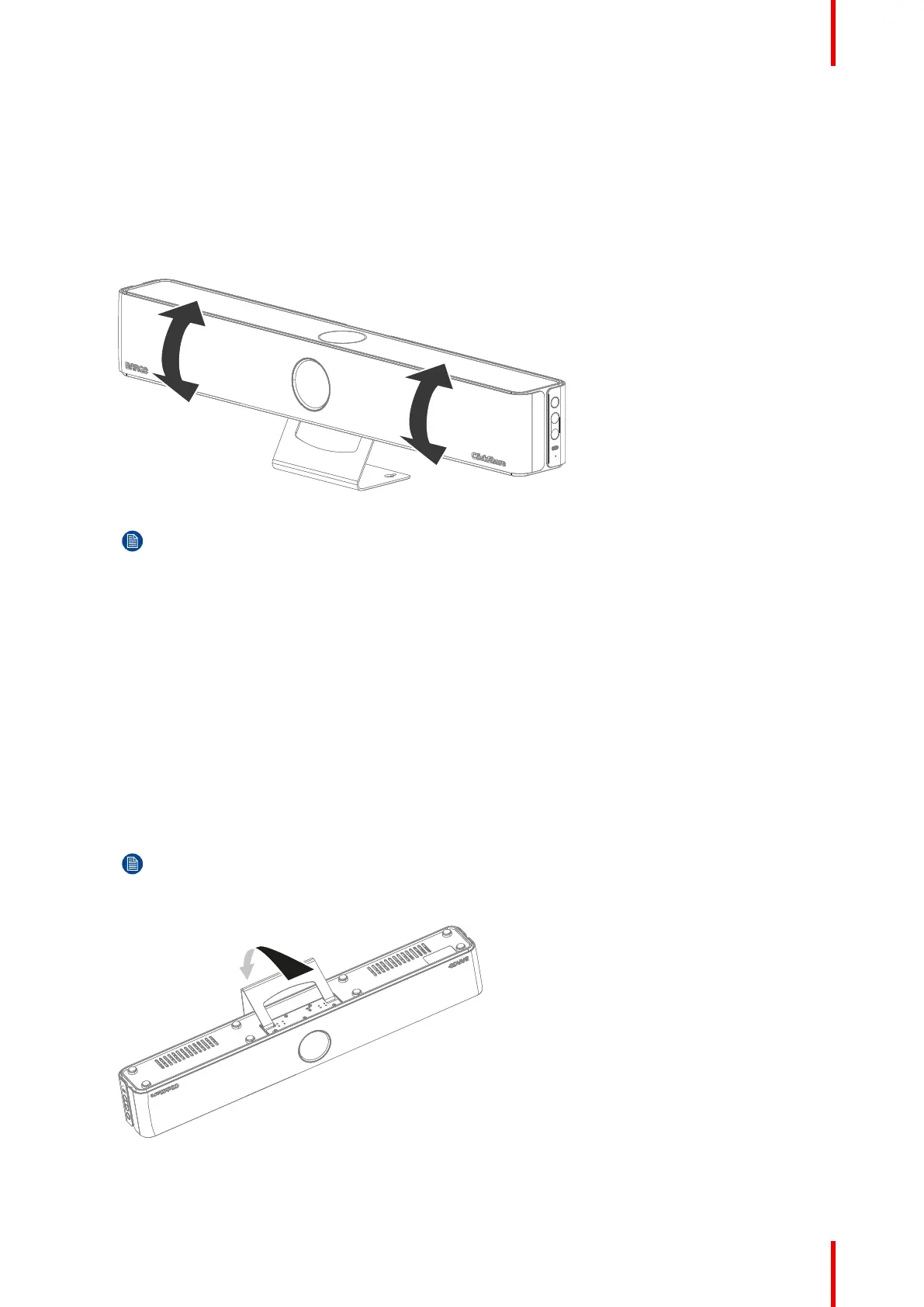

Image 4–1 Possible tilt directions
Note: Always keep the base of the wall mount level and in full contact with the surface, do not tilt
the Base Unit in other ways!
4.2.2 Install standing on a flat surface
About standing installation
To install the Base Unit in its upright position, sufficient space and a flat surface are required. If not enough
height is available, removing the wall mount could be an option, only if the full length can be supported by the
surface.
Required tools
Phillips screwdriver PH2
Standing on a flat surface
1. Place the Base Unit on its backside or upside down.
Note: Do not place the Base Unit on its front, as this might damage the camera!
2. Tilt the stand backwards.
Image 4–2 Tilt direction for the wall stand
3. Unscrew the five Phillips screws that hold the wall mount to the Base Unit.
Installing CB Core, CB Pro
