4.3 Hardware connections
4.3.1 Connecting the power
About powering the Base Unit
There are two ways to power the Base Unit:
• With the included adapter
• Through a display that supports USB-C power delivery of at least 65W
When both options are connected the adapter will take priority in charging the Base Unit.
Powering with adapter
1. Remove the cable cover from the Base Unit.

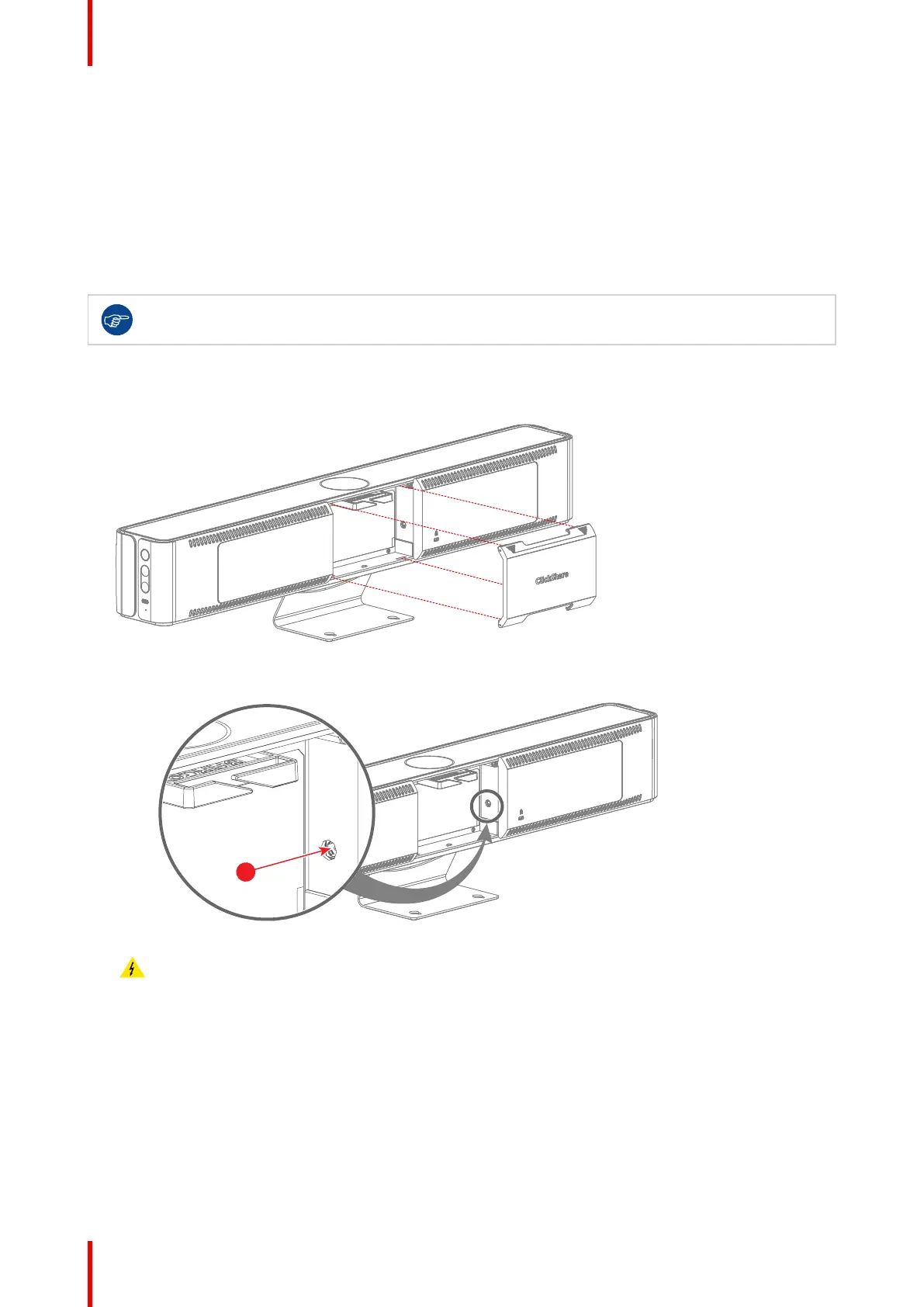

Image 4–7 Cable cover removal
2. Connect the adapter to the power port in the Base Unit. (reference 1)
1
Image 4–8
Warning: Only use the certified Barco adapter that was included in the box or provided as spare,
using a different adapter may cause severe damage!
3. Route the cable(s) through the cable binder. (optional)
4. Plug the adapter into a wall socket.
When power is sufficiently provided to the Base Unit, the ring at the front will light up.
5. Close the cable cover at the back of the Base Unit, if no further connections must be made.
Powering over USB-C display
1. Remove the cable cover at the back of the Base Unit.
Installing CB Core, CB Pro
