27R5917517 /00 ClickShare CB Core, CB Pro

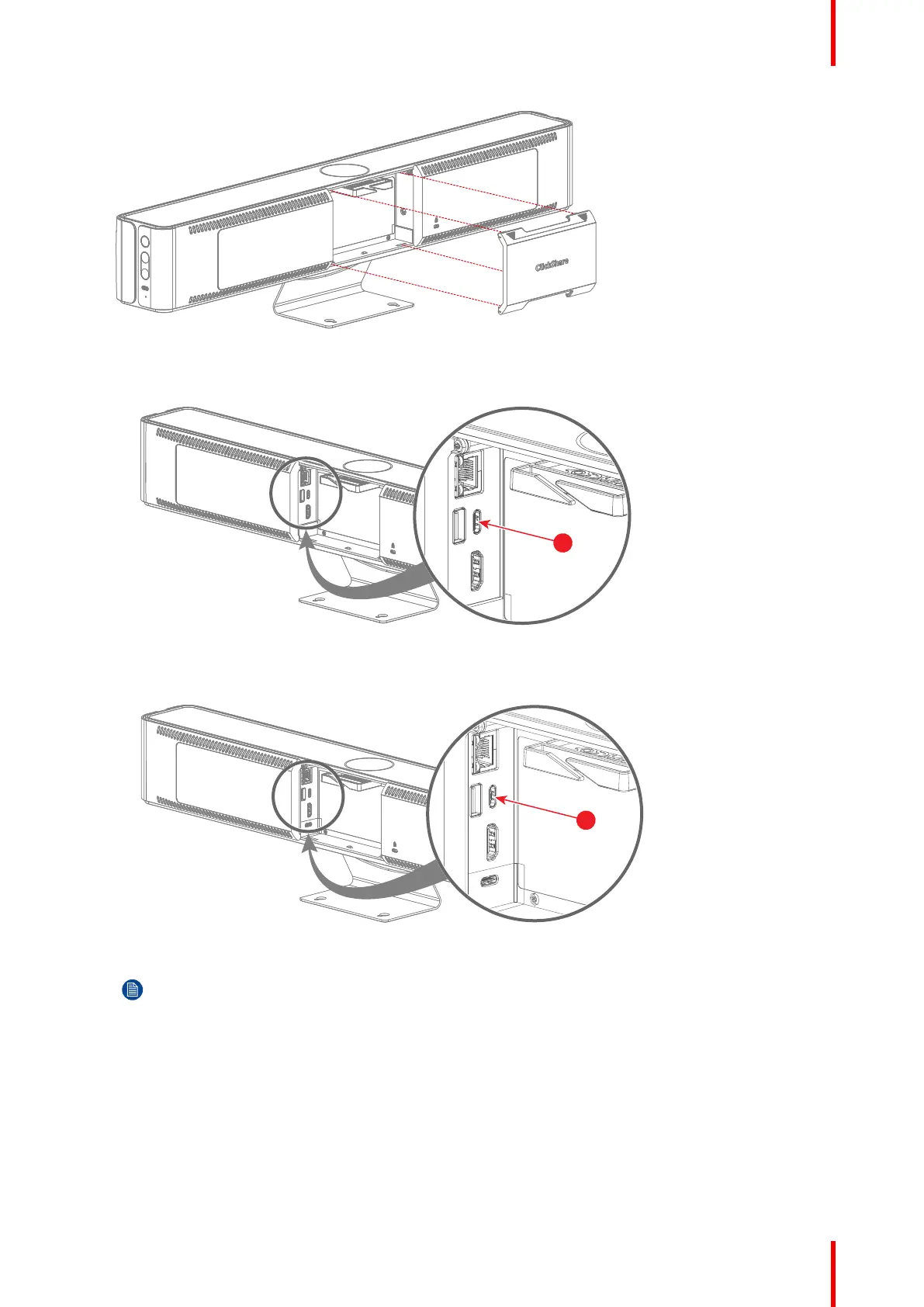

Image 4–9 Cable cover removal
2. Connect a display to the “USB-C” port at the back of the Base Unit. (reference 1)
• For CB Core:
1
Image 4–10 Where to connect the USB-C cable
1 USB-C cable
• For CB Pro:
1
Image 4–11 Where to connect the USB-C cable
1 USB-C cable
Note: It is possible to use this connection to both charge the Base Unit and display image on the
connected screen.
When power is sufficiently provided to the Base Unit, the ring at the front will light up.
3. Route the cable(s) through the cable binder. (optional)
4. Close the cable cover at the back of the Base Unit when no further connections must be made.
Installing CB Core, CB Pro
