11.12.1.2 Auto Function AOI
An Auto Function AOI must be set separately from the AOI used to define the size of captured
images (Image AOI). You can specify a portion of the sensor array and only the pixel data from the
specified portion will be used for auto function control.
An Auto Function AOI is referenced to the top left corner of the sensor array. The top left corner is
designated as column 0 and row 0 as shown in Figure 44.
The location and size of an Auto Function AOI is defined by declaring an X offset (coordinate), a
width, a Y offset (coordinate), and a height. For example, suppose that you specify the X offset as
14, the width as 5, the Y offset as 7, and the height as 6. The area of the array that is bounded by
these settings is shown in Figure 44.
Only the pixel data from within the area defined by your settings will be used by the related auto
function.

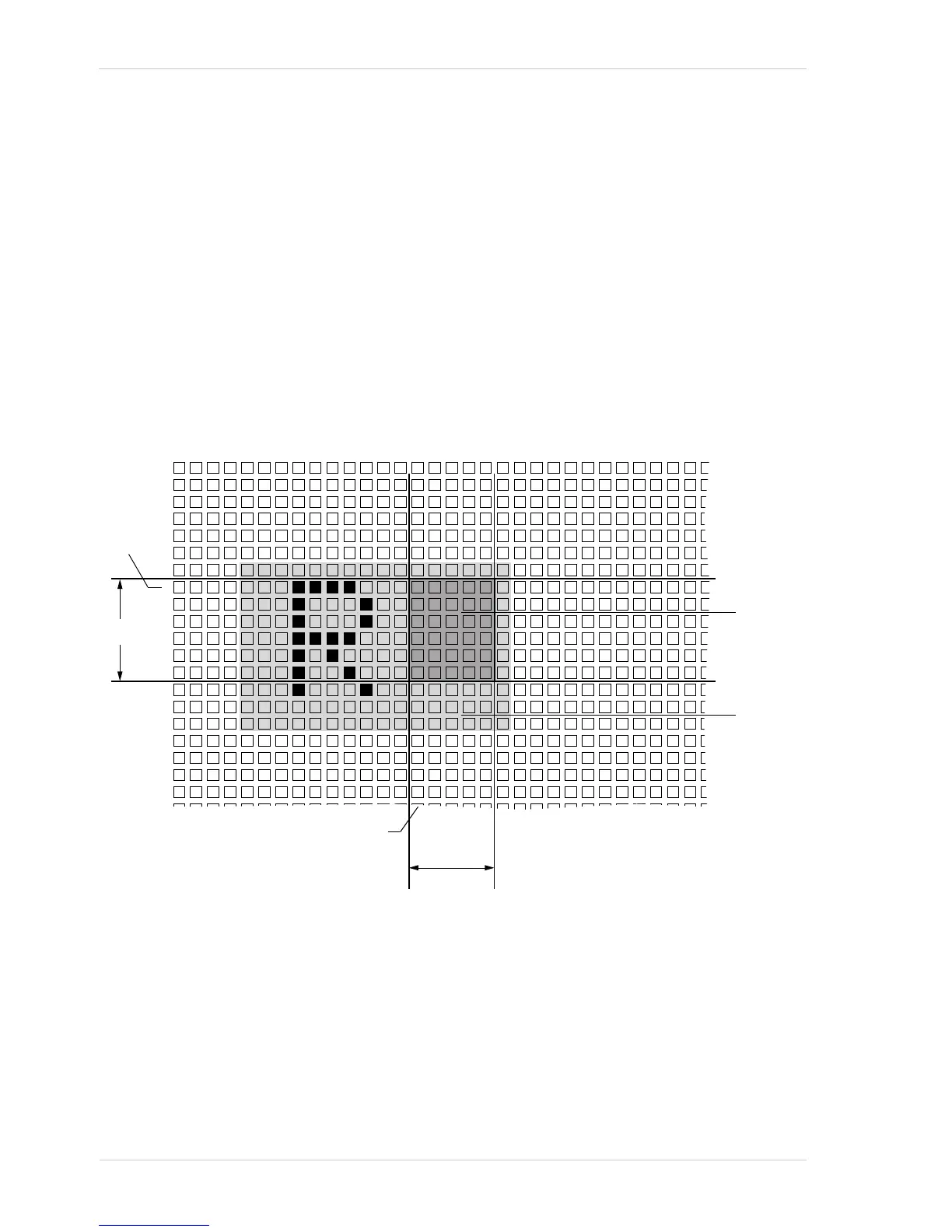

Fig. 51: Auto Function Area of Interest and Image Area of Interest
01
0
2345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Y
Offset
Row
Column
X Offset
Width
Auto
Function
Area of
Interest
Height
Area of
Interest
