Basler pilot - Line Schematic

Physical Interface
72 Basler pilot
7.7.1.2 Line Schematic
The camera is equipped with two physical input lines designated as Input Line 1 and Input Line 2.
The input lines are accessed via the 12-pin receptacle on the back of the camera.
As shown in the I/O line schematic, each input line is opto-isolated. See the previous section for
input voltages and their significances. The absolute maximum input voltage is +30.0 VDC. The
current draw for each input line is between 5 and 15 mA.

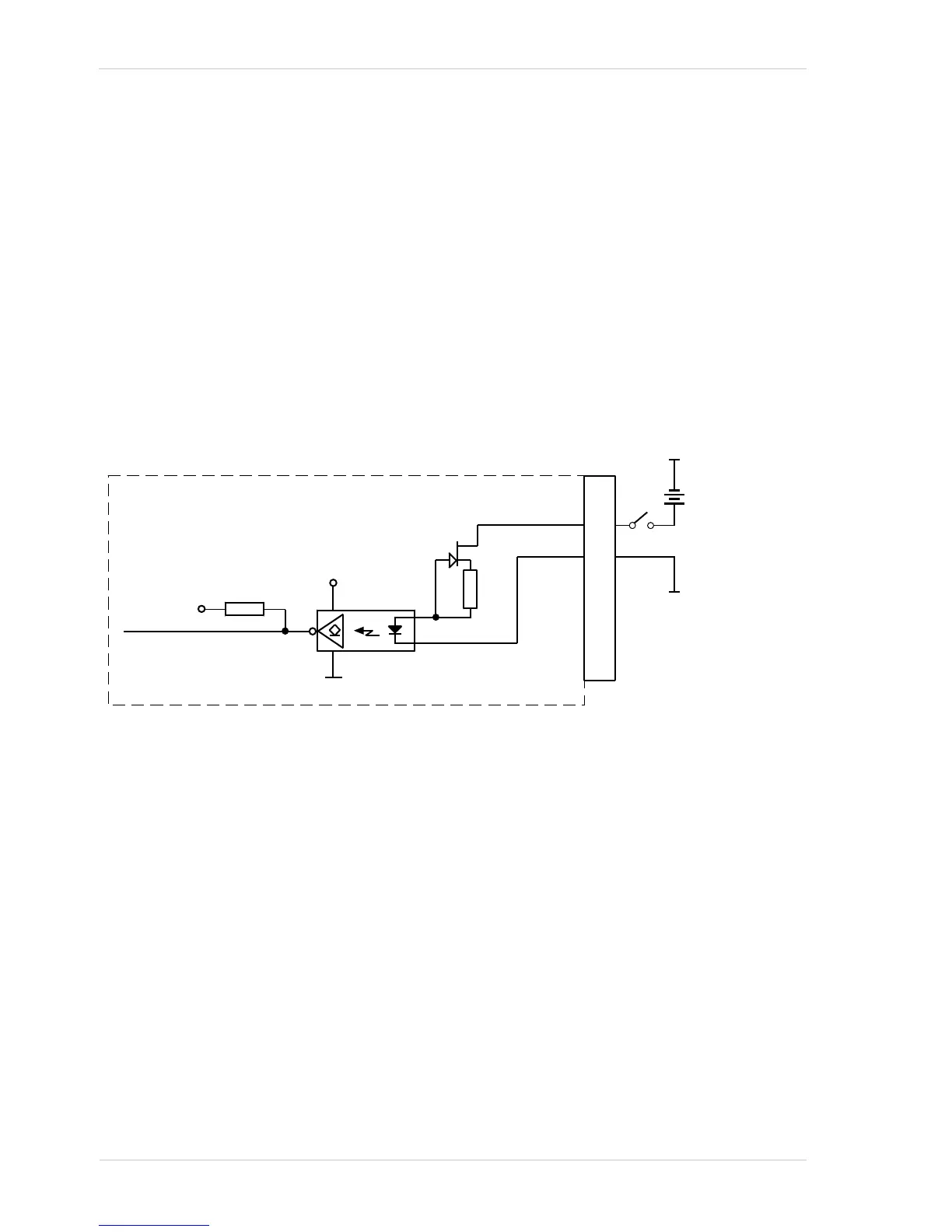

Figure 25 shows an example of a typical circuit you can use to input a signal into the camera.
By default, Input Line 1 is assigned to receive an external hardware trigger (ExTrig) signal that can
be used to control the start of image acquisition.
Fig. 25: Typical Input Circuit
For more information about input line pin assignments and pin numbering, see Section 7.2 on
page 62.
For more information about how to use an ExTrig signal to control acquisition start, see Section 8.3
on page 84.
For more information about configuring the input lines, see Section 10.1 on page 137.
Your
Gnd
Your
Gnd
Input
Voltage
+30 VDC
Absolute
Max.
1
2
3
4
5
6
7
8
9
10
11
12
12-Pin
Receptacle
180
Ω
5.1k
3.3 V
Gnd
3.3 V
I/O_In_1
Q
I/O_In_Gnd
In_1_Ctrl
BF545C
Camera
