7 Physical Interface
This section provides detailed information, such as pinouts and voltage requirements, for the
physical interface on the camera. This information will be especially useful during your initial
design-in process.
7.1 General Description of the
Connections
The camera is interfaced to external circuity via connectors located on the back of the housing:
An 8-pin, RJ-45 jack used to provide a 100/1000 Mbit/s Ethernet connection to the camera.
This jack includes a green LED and a yellow LED that indicate the state of the network
connection.
A 12-pin receptacle used to provide access to the camera’s I/O lines and to provide power to
the camera.

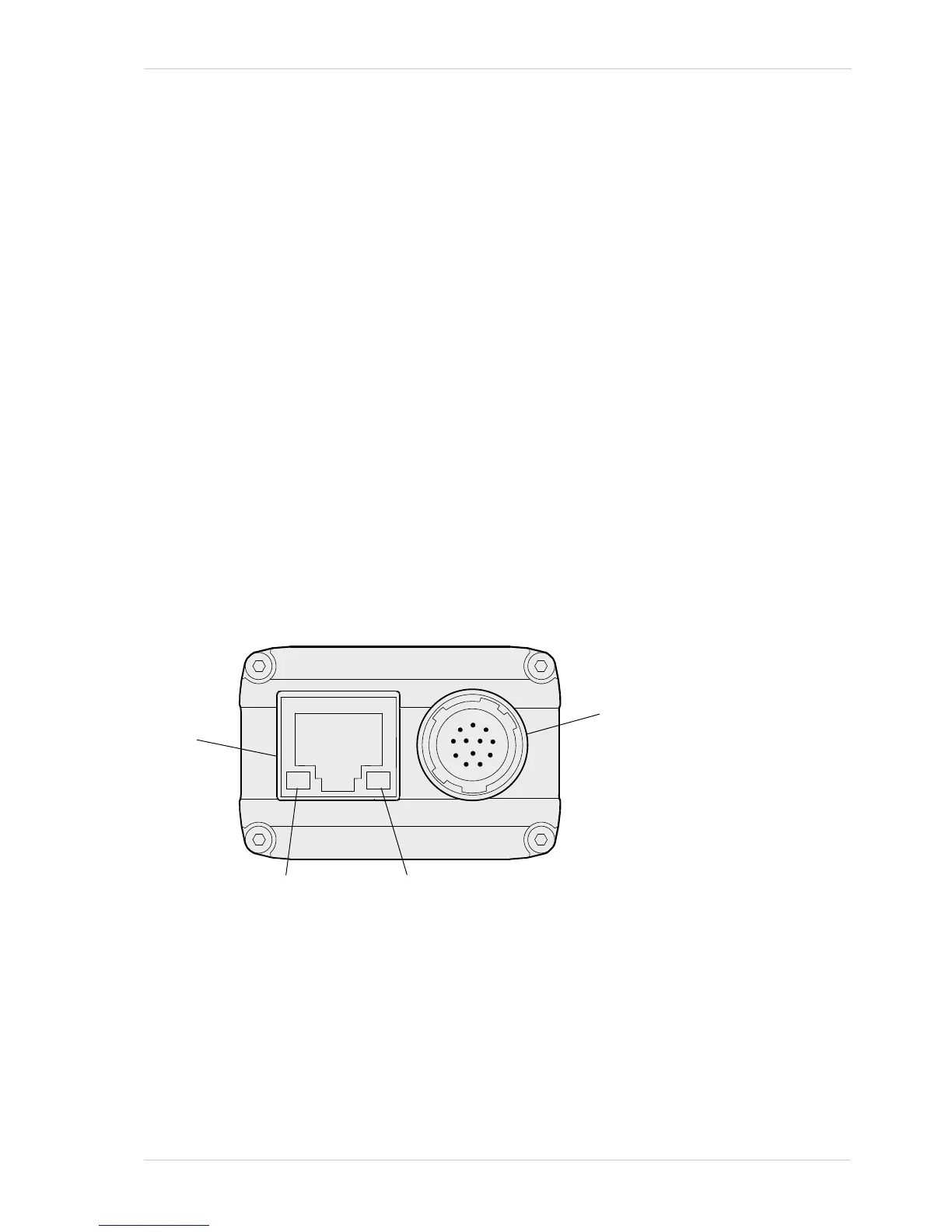

The drawing below shows the location of the two connectors and the LEDs.
Fig. 22: Camera Connectors and LED
