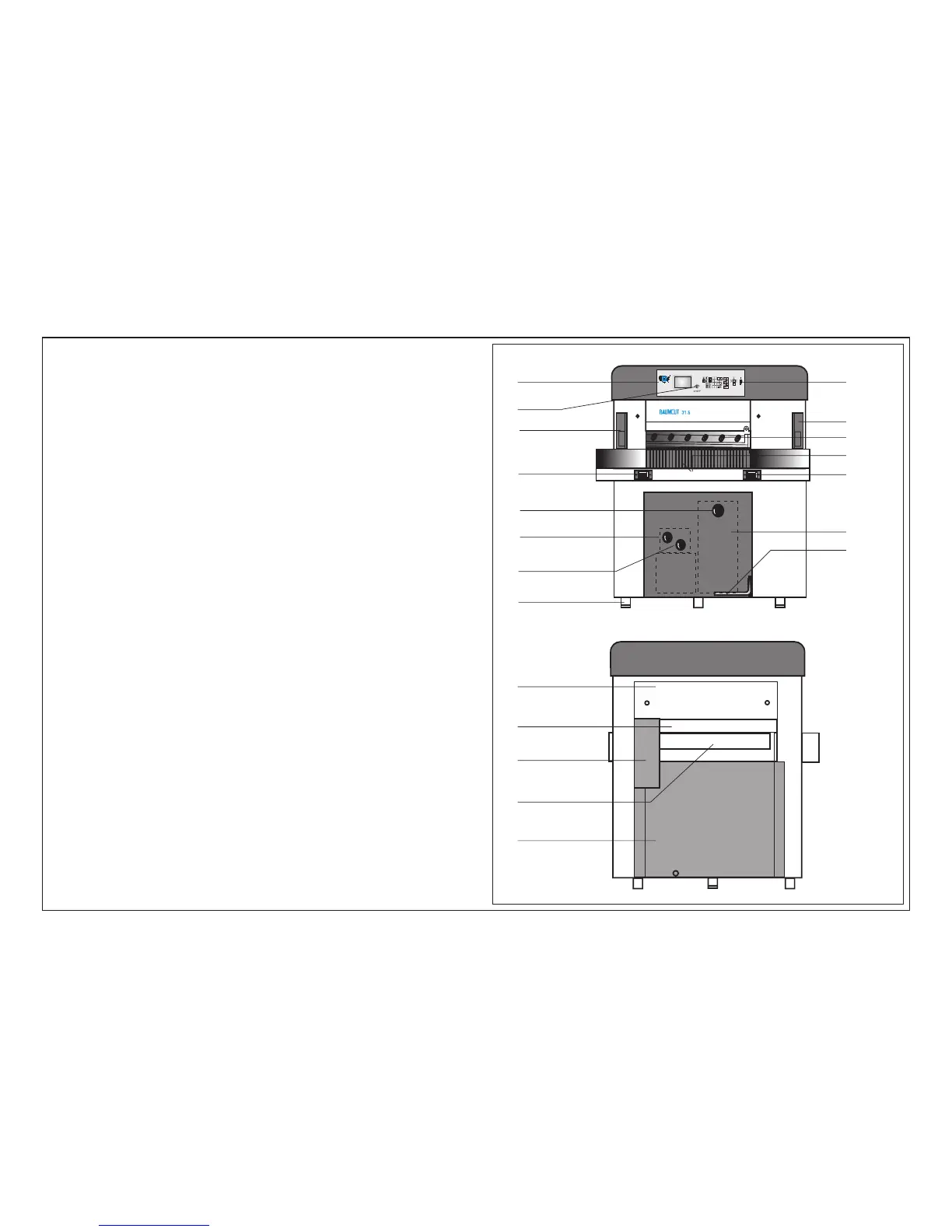

Machine Layout
1.0 Technical Data/Machine Layout/Transport and Installation of the Machine/Safety Relevant Machine Elements
1 Main switch
2 Control panel with display
3 Electronic hand wheel / fine adjustment of cut size
4 Cut buttons
5 Clamping pressure adjustment
6 Clamp and knife bar with knife
7 Switch for cutting line indicator/ Table lamp
8 Backgauge with rakes
9 Cutting stick / Cutting line
10 Pedal
11 Protective guard for backgauge drive
12 Light barrier with guard
13 Guards - front side
14 Guards - rear side
15 Guard - rear table
16 Guard to prevent reaching under the clamp bar
17 Foot
18 Turning knob for knife change
Rear side
Front side (operating side)
1
2
3
44
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
