Baum BAUMCUT 31.5 - Control Panel and Operation; Control Panel Components Overview

E - 4
1 2
3
4 5
6
7 8 9
C
0
x
D
i
PROGRAMMABLE

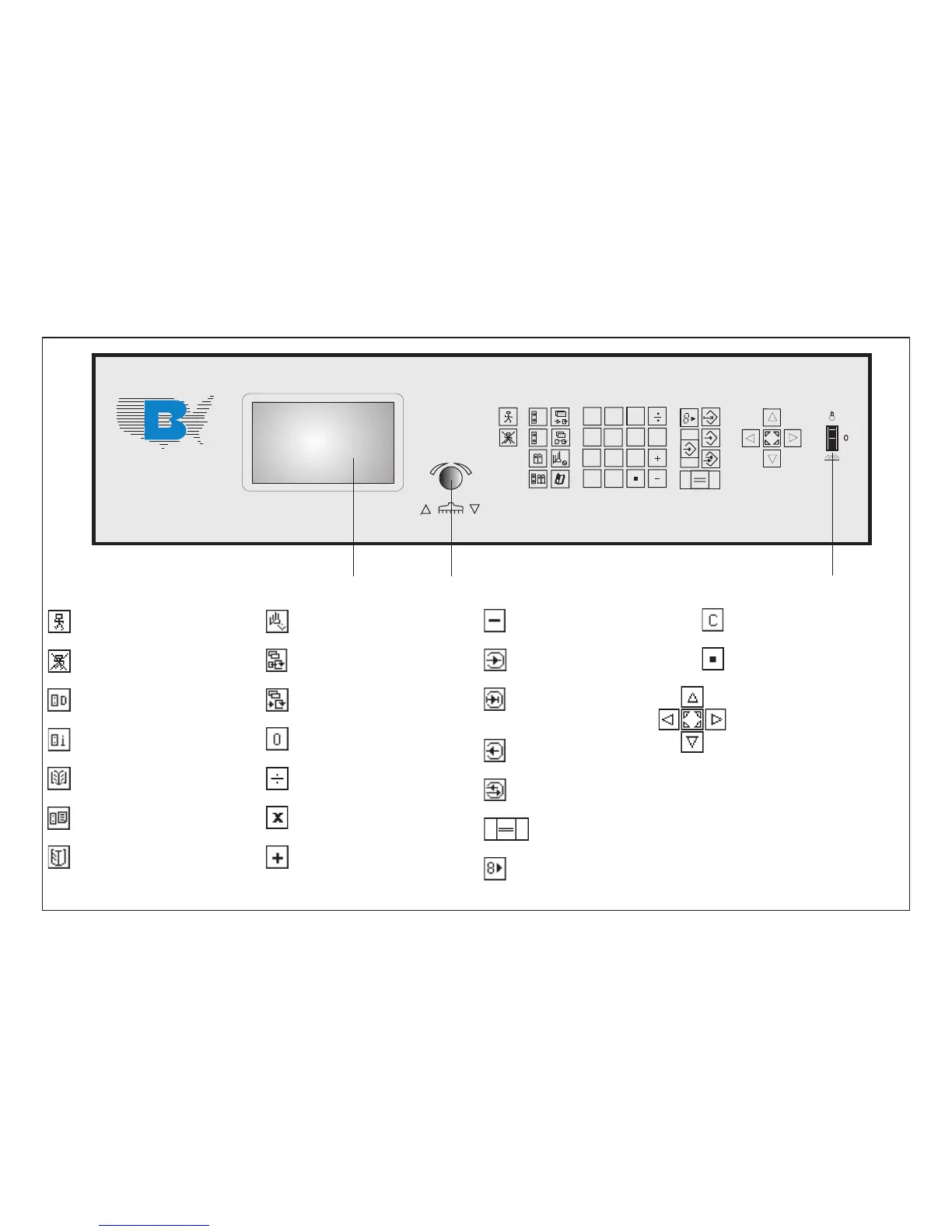

Control Panel / Operating Elements
Automatic ON
Automatic OFF
Program Data
Program Information
Function Survey (Main Menu)
Program Directory
Program Selection
Subtraction
Enter
Insert; subsequent insertion of
data
Delete
Correction (of stored data)
Equal key
Transfer key: Transfer backgauge
pos. into input field
Machine Parameter
Auxiliary Program Functions
Additional Functions
Numerical keyboard
Division
Multiplication
Addition
Clear input field
Decimal point
Cursor
(4 keys: right, left, up, down;
Center key: Additional cursor
motion; cursor in basic position
1 Display
2 Turning knob for backgauge move-
ment
(Electronic hand wheel)
3 Switch for optical cutting line
indicator and table light ON
21 3
