20 BD FACSCanto Flow Cytometer Reference Manual
Fiber optic cables direct the laser light onto beam-shaping prisms, which in turn
transmit the laser light to a focusing lens. The lens directs the laser light onto the
sample stream within the flow cell (Figure 1-2). See also Figure A-3 on page 110.

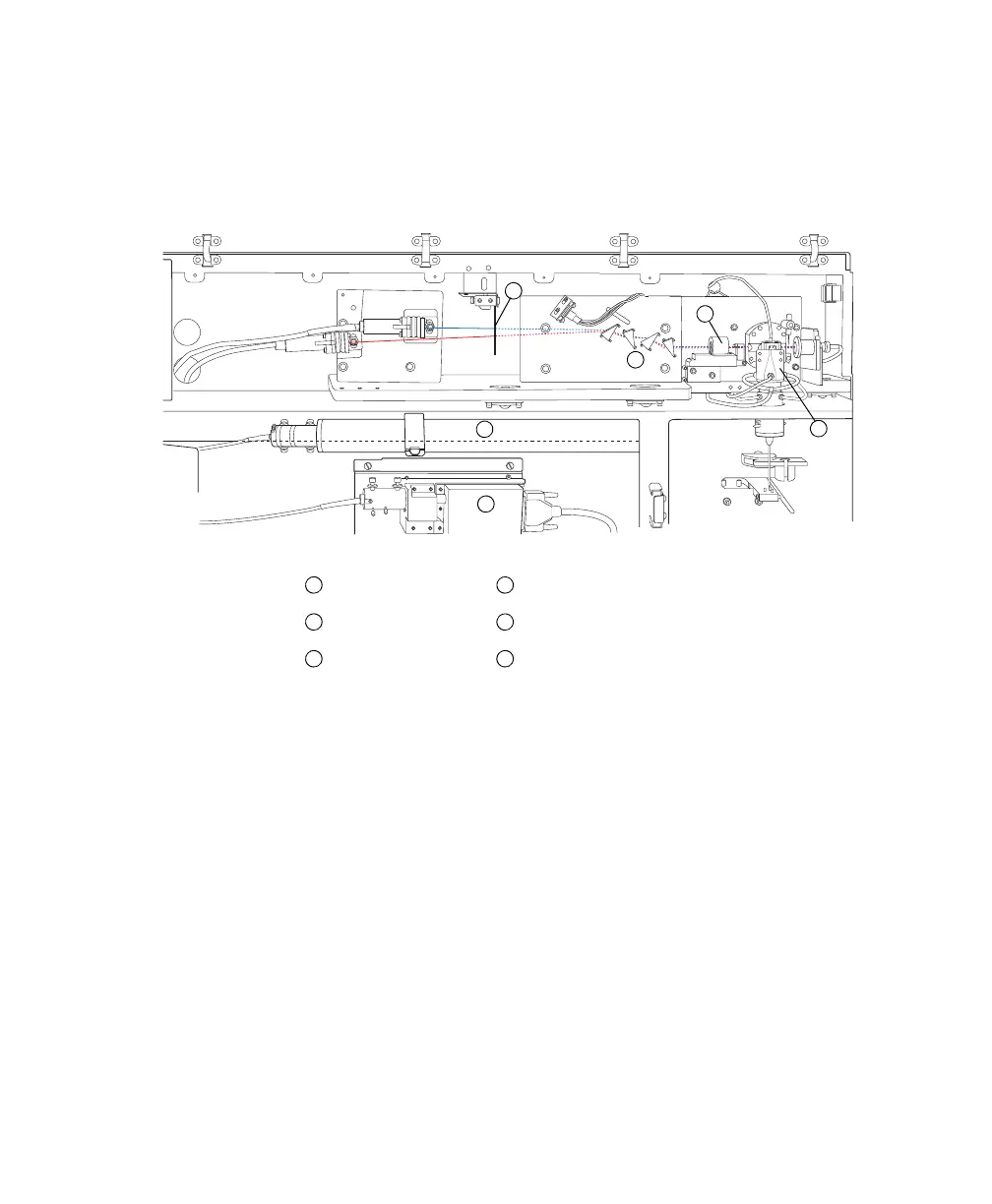

Figure 1-2 Optical pathway
When the flow cell access door opens, an interlock shutters the laser light and
blocks its pathway for safety reasons.
1
2
3
4
5
6
interlock flow cell
prisms red He-Ne laser
focusing lens blue solid-state laser
1
4
2 5
3 6
