Configuring Your Router
WAN – DSL
BEC 8920AC User Manual
DSL

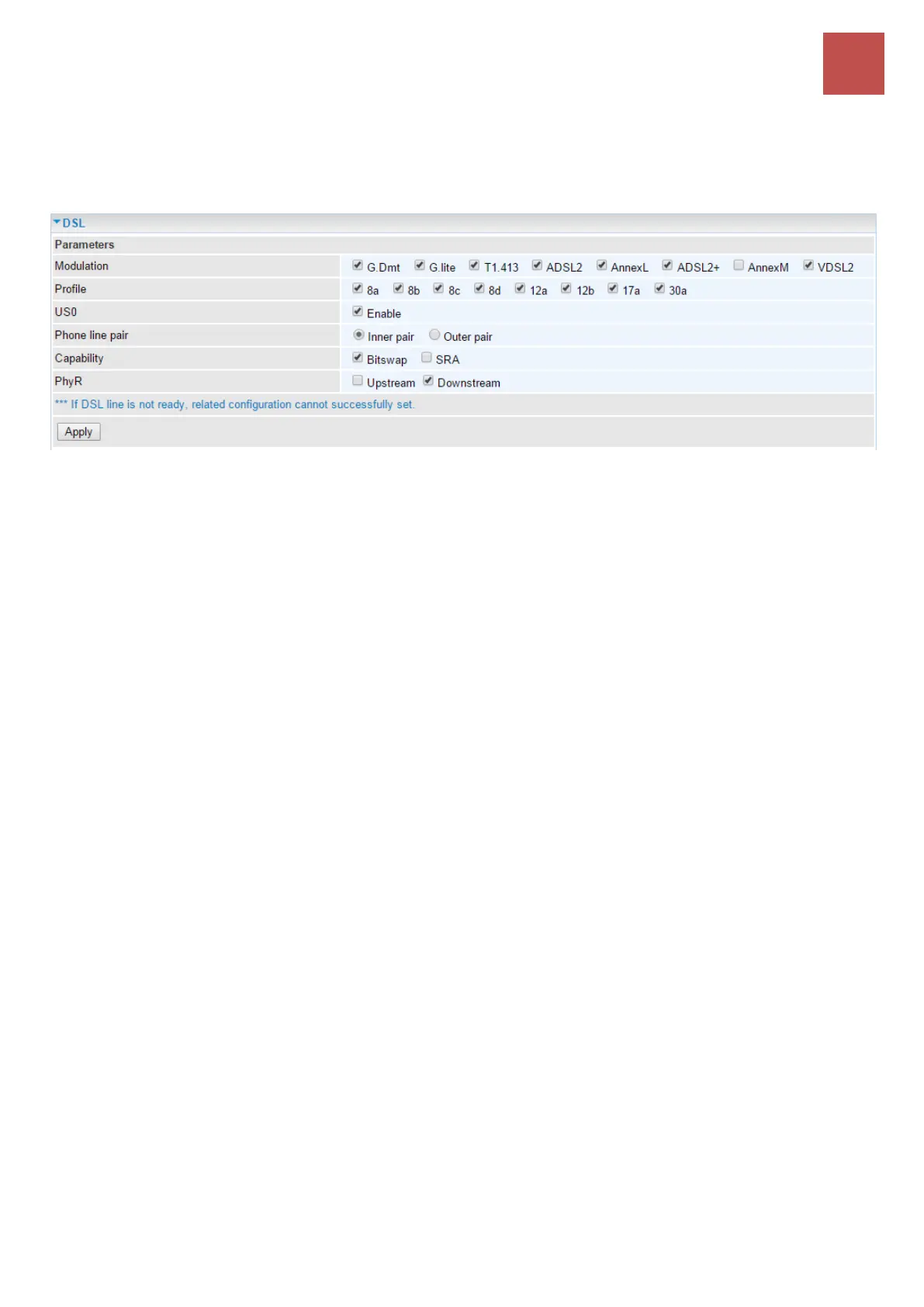

This screen allows you to set DSL parameters. DSL knowledge is required to configure these settings.
Contact your ISP to make sure that these parameters are correct.
Modulation: There are 8 modes available, “G.Dmt”, “G.lite”, “T1.413”, “ADSL2”,
“AnnexL”, ”ADSL2+”,“AnnexM”, and “VDSL” to choose from. Please consult with your Internet
Service Provider if you don’t what mode to choose.
Profile: VDSL profiles up to 30a.
Phone line pair: This is for reserved only. You can choose "Inner Pair" or "Outer Pair".
US0: Enable to improve rate performance and extend the reach distance of VDSL2.
Capability: There are 2 options “Bitswap Enable” and “SRA Enable” that user can select for this
connection.
Bitswap: Enable to activate bitswaping function.
SRA: Enable to activate seamless rate adaptation.
PhyR: A new technology to control impulse and noise to improve the BER and DSL data quality.
Click Apply to save settings.
