Configuring Your Router
Status – 3G/4G LTE Status
BEC 8920AC User Manual

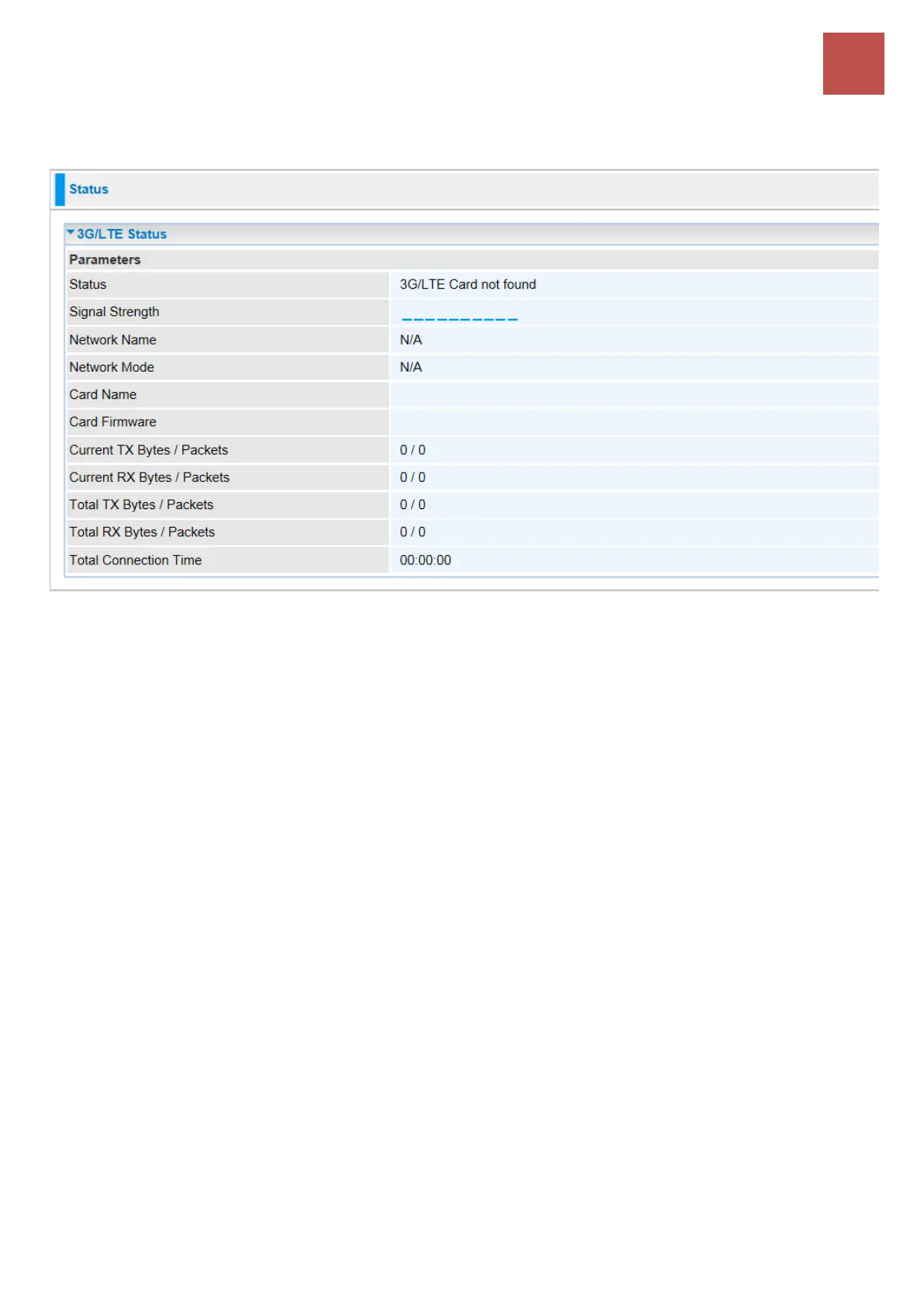

3G/4G LTE Status
Status: The current status of the 3G/4G LTE connection.
Signal Strength: The signal strength bar and dBm value indicates the current 3G/4G-LTE signal
strength. The front panel 3G/4G LTE Signal Strength LED indicates the signal strength as well.
Network Name: The name of the 3G/4G LTE network the router is connecting to.
Network Mode: The current operation mode for 3G/4G LTE module, it depends on service provider
and card’s limitation, GSM or UMTS.
Card Name: Given a name for the embedded 3G/4G LTE module.
Card Firmware: Current used FW in the 3G/4G LTE module.
Current Received (RX) /Transmitted (TX) Bytes: Current Rx/TX (receive/transmit) packets in Byte
Total Received (RX) /Transmitted (TX) Bytes: The total Rx/TX (receive/transmit) packets in Byte
Total Connection Time: The total of 3G/4G LTE dongle connection time since the 3G/4G LTE is up
and running
