BEC 8920AC - Xdsl

Configuring Your Router
Status – Statistics (xDSL)
37
BEC 8920AC User Manual
xDSL

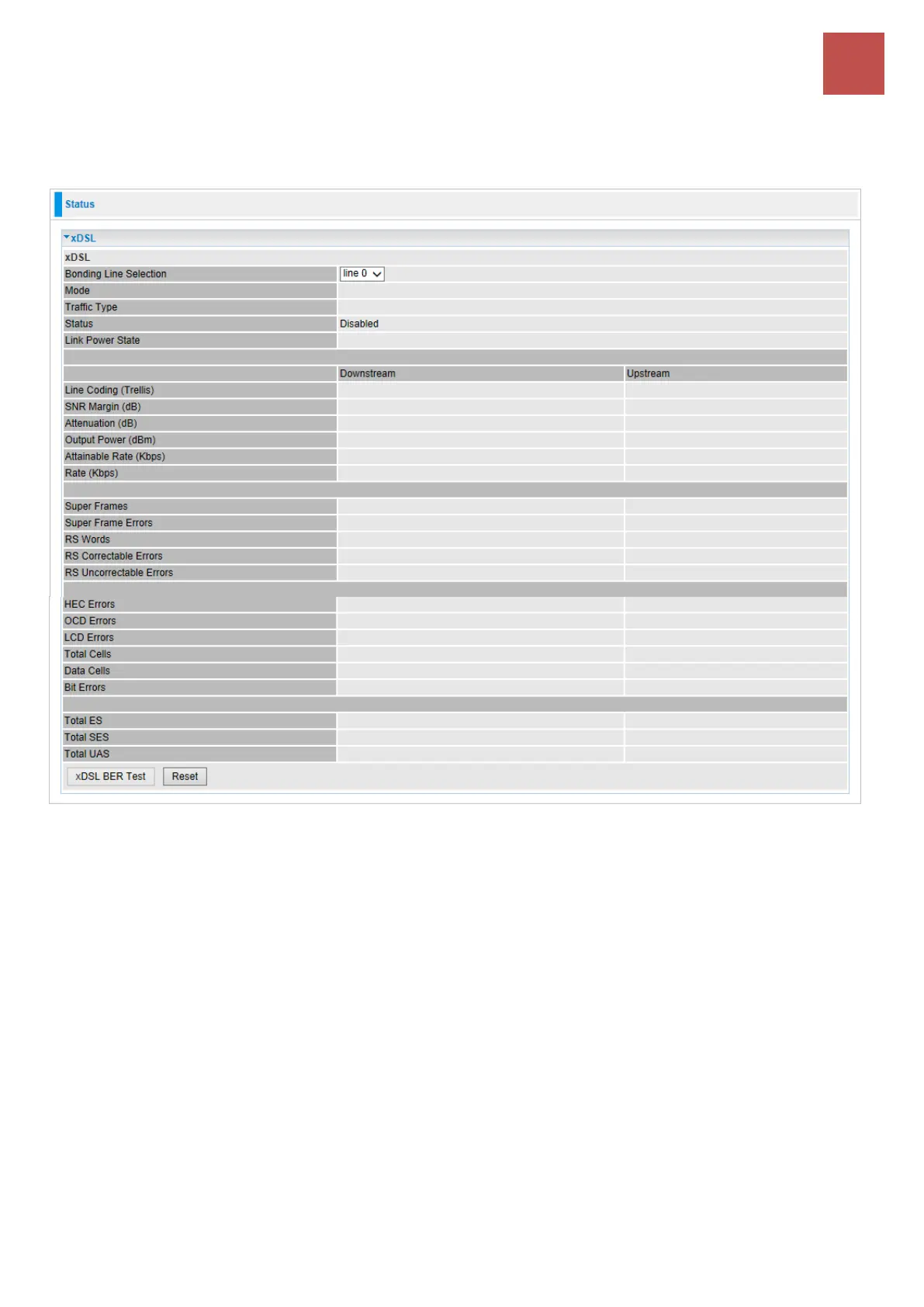

The Statistics-xDSL screen displays all the xDSL network statistics.
Mode: Modulation protocol, including G.dmt, G.lite, T1.413, ADSL2, AnnexL, ADSL2+ and AnnexM.
Traffic Type: transfer mode, here supports ATM and PTM.
Status: Show the status of DSL link.
Link Power State: Show link output power state.
Line Coding (Trellis): Trellis on/off.
SNR Margin (0.1 dB): show the Signal to Noise Ratio (SNR) margin.
Attenuation (0.1 dB): This is estimate of average loop attenuation of signal.
Output Power (0.1 dBm): show the output power.
Attainable Rate (Kbps): The sync rate you would obtain.
Rate (Kbps): show the downstream and upstream rate in Kbps.
K (number of bytes in DMT frame): show the number of bytes in DMT frame.
R (number of check bytes in RS code word): show the number of check bytes in RS code word.
S (RS code word size in DMT frame): show the RS code word size in DMT frame.
D (interleave depth): show the interleave depth.
