BEC 8920AC - Device Description; Front Panel Leds

Product Overview

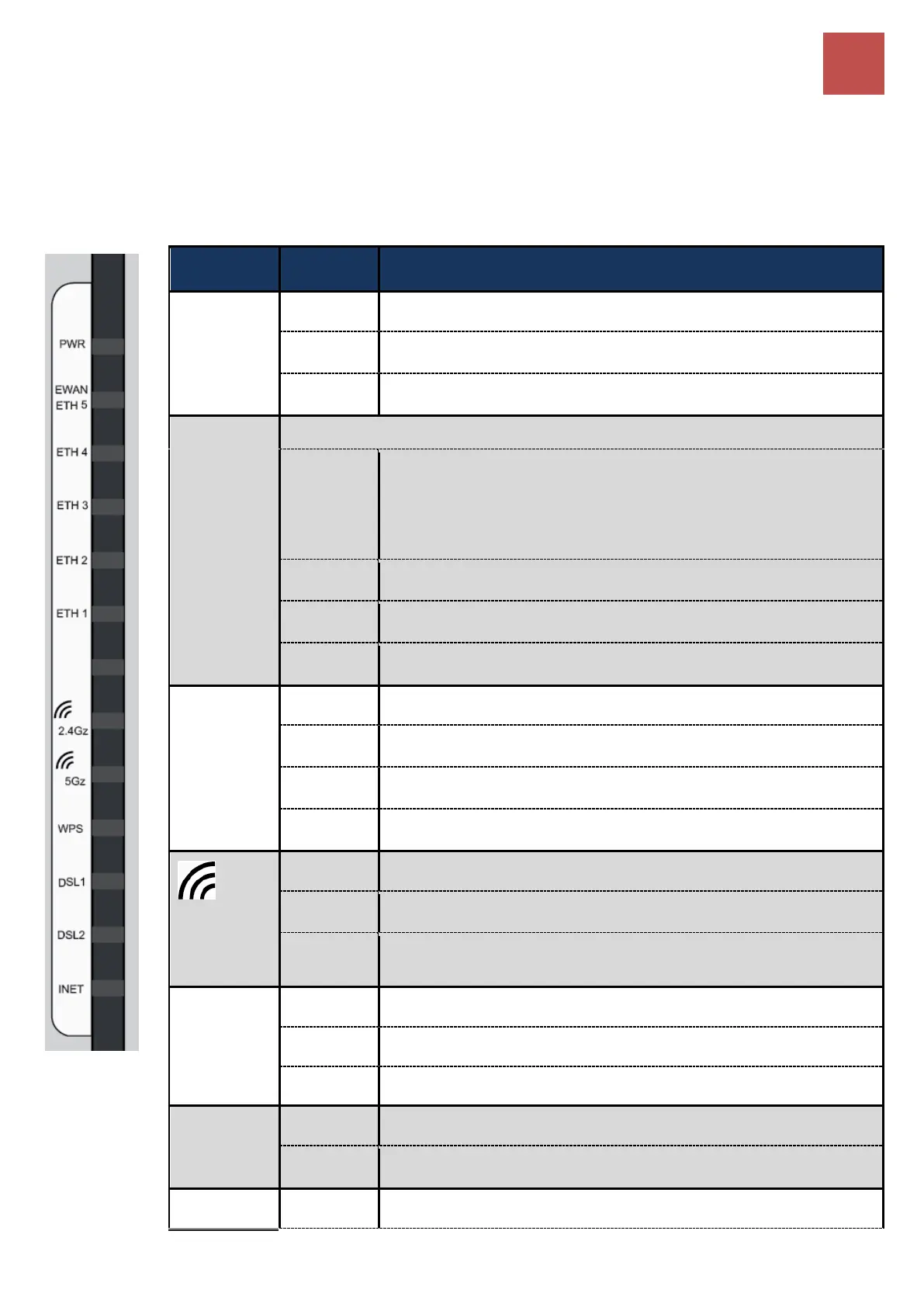

Front Panel LEDs
5
BEC 8920AC User Manual
Device Description
Front Panel LEDs
LED
STATUS
DESCRIPTION
PWR
(Power)
Red
System failure or in emergency mode
Green
System is up and ready
Off
Device has no power.
Gigabit
EWAN /
ETH 5
(Ethernet)
Can be configured to be WAN port for broadband connectivity
Green
Ethernet LAN : Connected to an Gigabit (1000Mbps) Ethernet
device
Ethernet WAN: Successfully connected with a broadband
connection device
Orange
LAN port is connected to an 10/100Mbps Ethernet device
Blinking
Data being transmitted/received
Off
No device is connected to the Ethernet port
Gigabit
ETH 1~4
(Ethernet)
Green
LAN port is connected to an 1000Mbps Ethernet device
Orange
LAN port is connected to an 10/100Mbps Ethernet device
Blinking
Data being transmitted/received
Off
No device is connected to the Ethernet port
Wireless
2.4GHz /
5GHz
Green
Wireless connection established
Blinking
Data being transmitted / received
Off
Wireless being turned off
WPS
Green
Wireless device(s) being connected successfully via WPS mode
Blinking
WPS is enabled and trying to establish a WPS connection.
Off
WPS being turned off
DSL1 /
DSL2
Green
Successfully connected to an ADSL DSLAM (Line Synced).
Off
DSL cable is unplugged
INET
Green
IP received and traffic is passing thru the device.
