Configuring Your Router
WAN – xDSL WAN Connection Setup (PPPoE)
BEC 8920AC User Manual

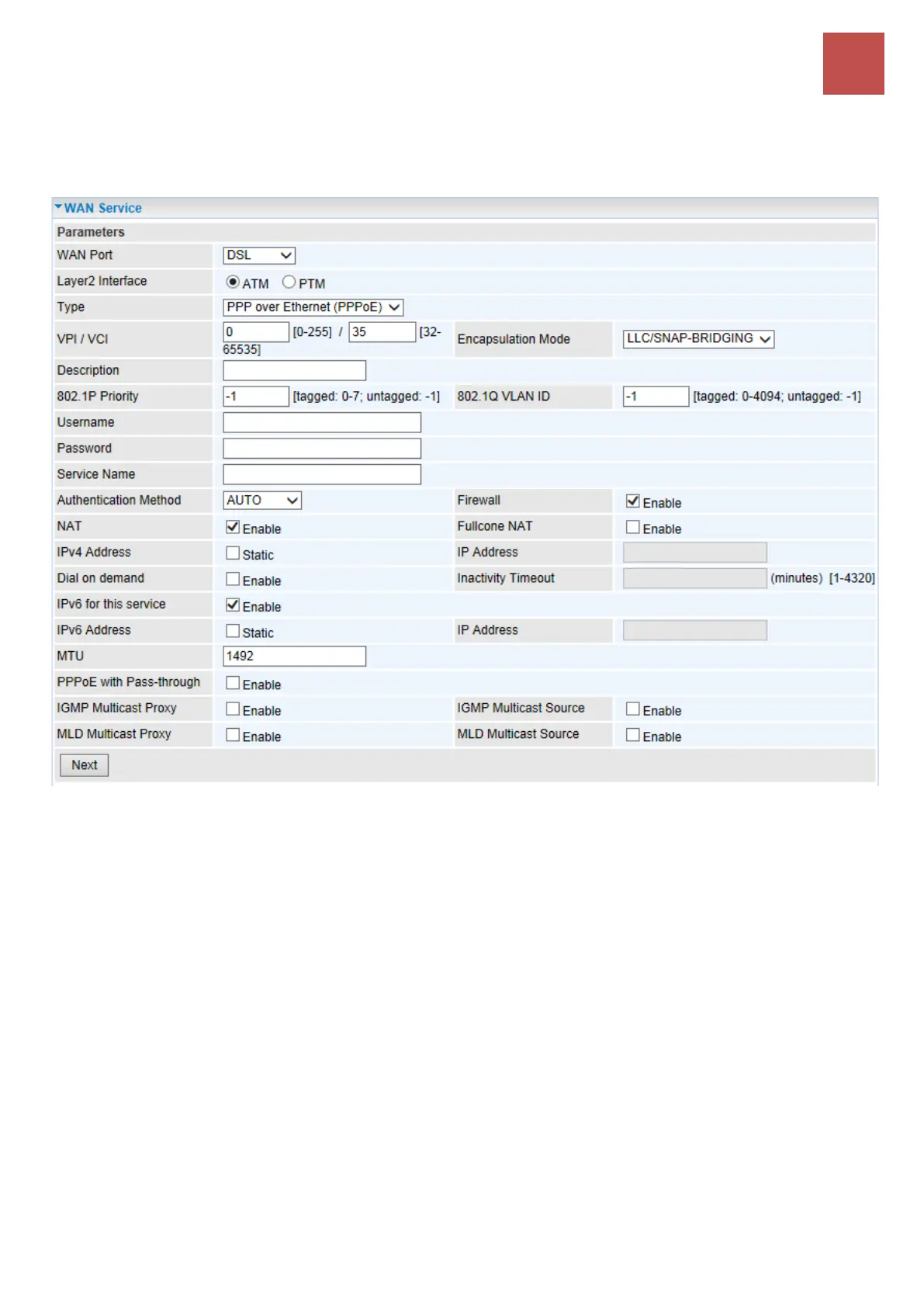

xDSL Internet Protocol - PPPoE
PPPoE (PPP over Ethernet) provides access control in a manner which is similar to dial-up services
using PPP.
VCP/VPI (For ATM Mode only): Enter the VCI/VPI from you Internet Service Provider (ISP). This
information should be provided by your ISP, please consult them for more information.
Encapsulation Mode (For ATM Mode only): Select the encapsulation mode, LLC/SNAP-BRIDGING,
or VC/MUX. This information should be provided by your ISP, please consult them for more
information.
Description: User-defined description for the connection, commonly for friendly use.
802.1P Priority: The parameter indicates the frame priority level from 0 (lowest) to 7 (highest), which
can be used to prioritize different classes of traffic (voice, video, data, etc). Enter the priority
identification, tagged: 0-1, untagged: -1.
802.1Q VLAN ID: It is a parameter to specify the VLAN which the frame belongs. Enter the VLAN ID
identification, tagged: 0-4094, untagged: -1.
Username: Enter the account obtained from the ISP.
Password: Enter the password obtained from the ISP.
Service Name: The item is for identification purposes, user can define this.
Authentication Method: Default is set to Auto. Or else your ISP will advise you the appropriate
mode.
