SE-B(+) drives

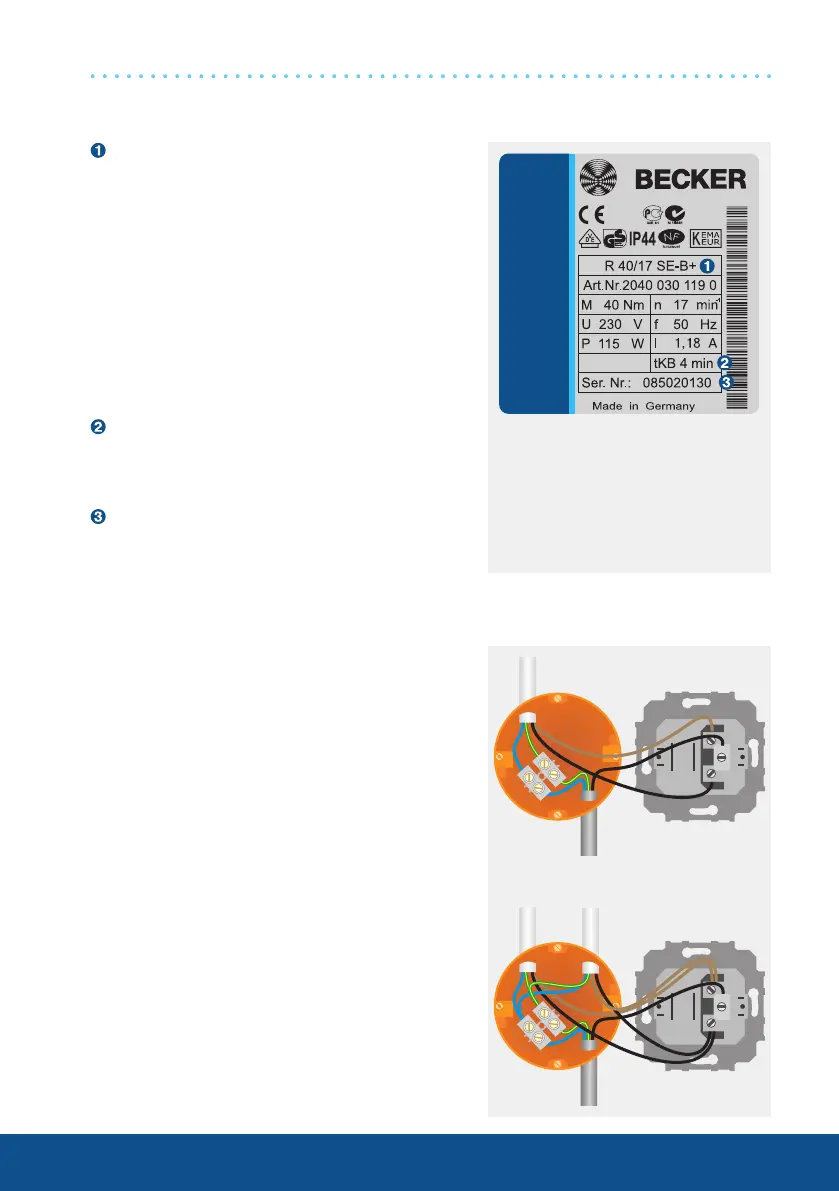

Type plate
Type designation: e.g. R 40/17 SE-B+
R Size of drive
(tube diameter)
R - 45 mm
L - 58 mm
40/17 Rated torque/output speed
S Electronic limit switching for sun
protection
E-B Automatic fabric stretching in the
Extend limit position
+ Higher closing force for cassette
awnings
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 08 50 20130
08 Year 2008
50 Calendar week
20130 Consecutive number
Wiring
Two or more drives with electronic limit switch-
ing can be connected in parallel to a control
point. The maximum number of synchronously
controlled drives depends on the load capaci-
ty of the operator control.
The changeover time for switching the running
direction must be at least 0.5 seconds. The
switch and controls must not execute simulta-
neous retract and extend commands.
The following applies to operator controls with
a 5A contact load rating:
R20/17 SE-B(+) - R60/17 SE-B(+) =
max. 3 drives
L70/17 SE-B(+) - L120/11 SE-B(+) =
max. 2 drives
Mains
Drive
Drive 2Drive 1
Mains
To Next Page
