S(+) drives

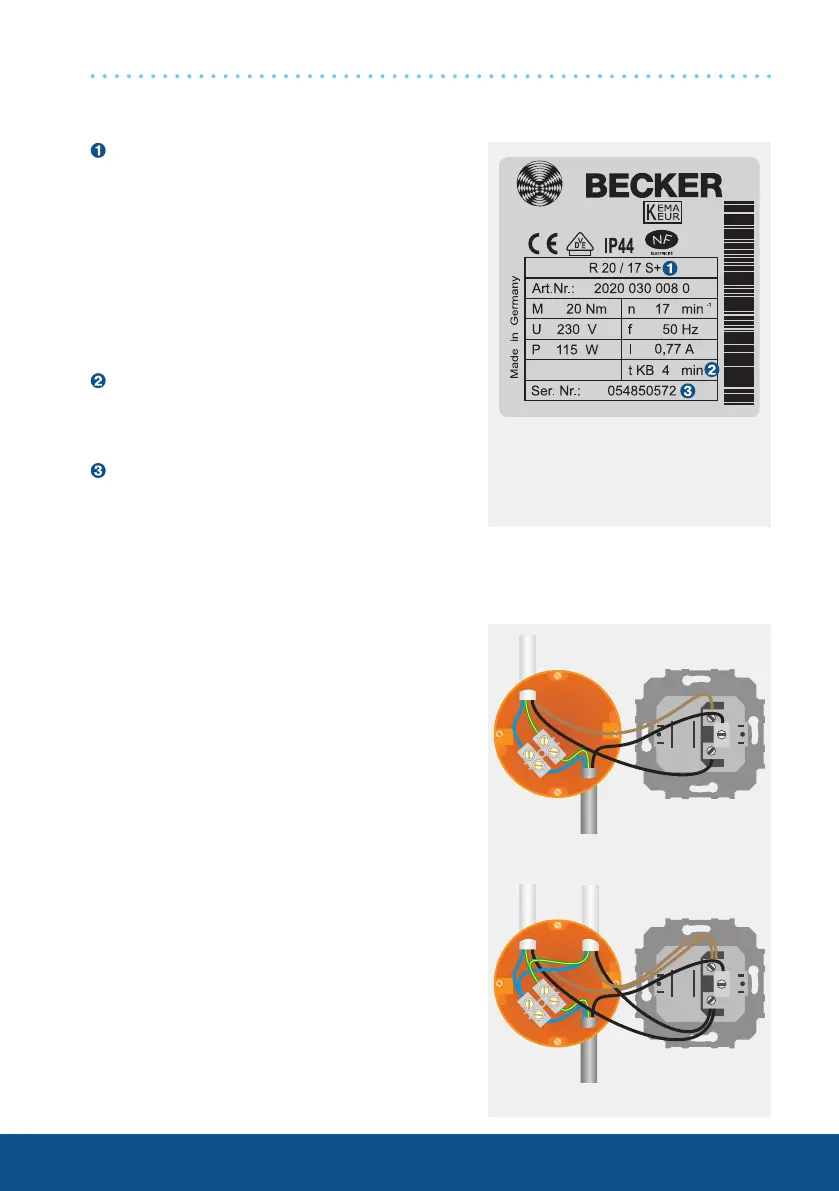

Type plate
Type designation: e.g. R 20/17 S+
R Size of drive
(tube diameter)
R - 45 mm
L - 58 mm
20/17 Rated torque/output speed
S Electronic limit switching for sun
protection
+ Higher closing force for cassette
awnings
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 05 48 50572
05 Year 2005
48 Calendar week
50572 Consecutive number
Wiring
Two or more drives with electronic limit switch-
ing can be connected in parallel to a control
point. The maximum number of synchronously
controlled drives depends on the load capacity
of the operator control.
The changeover time for switching the running
direction must be at least 0.5 seconds. The
switch and controls must not execute simulta-
neous retract and extend commands.
The following applies to operator controls with
a 5A contact load rating:
R8/17 S - R12/17 S(+) =
max. 5 drives
R20/17 S(+) - R60/17 S(+) =
max. 3 drives
L70/17 S(+) - L120/11 S(+) =
max. 2 drives
Mains
Drive
Drive 2Drive 1
Mains
