134
Wiring
Mains
Connection without on-site operation
The blue and green/yellow wires of the drive
are connected to the same coloured wires of
the power line. The black wire of the drive is
connected to the phase (L) and the brown wire
is also connected to the blue wire (N) of the
power line.
Drive
Mains
Drive
C18 drives

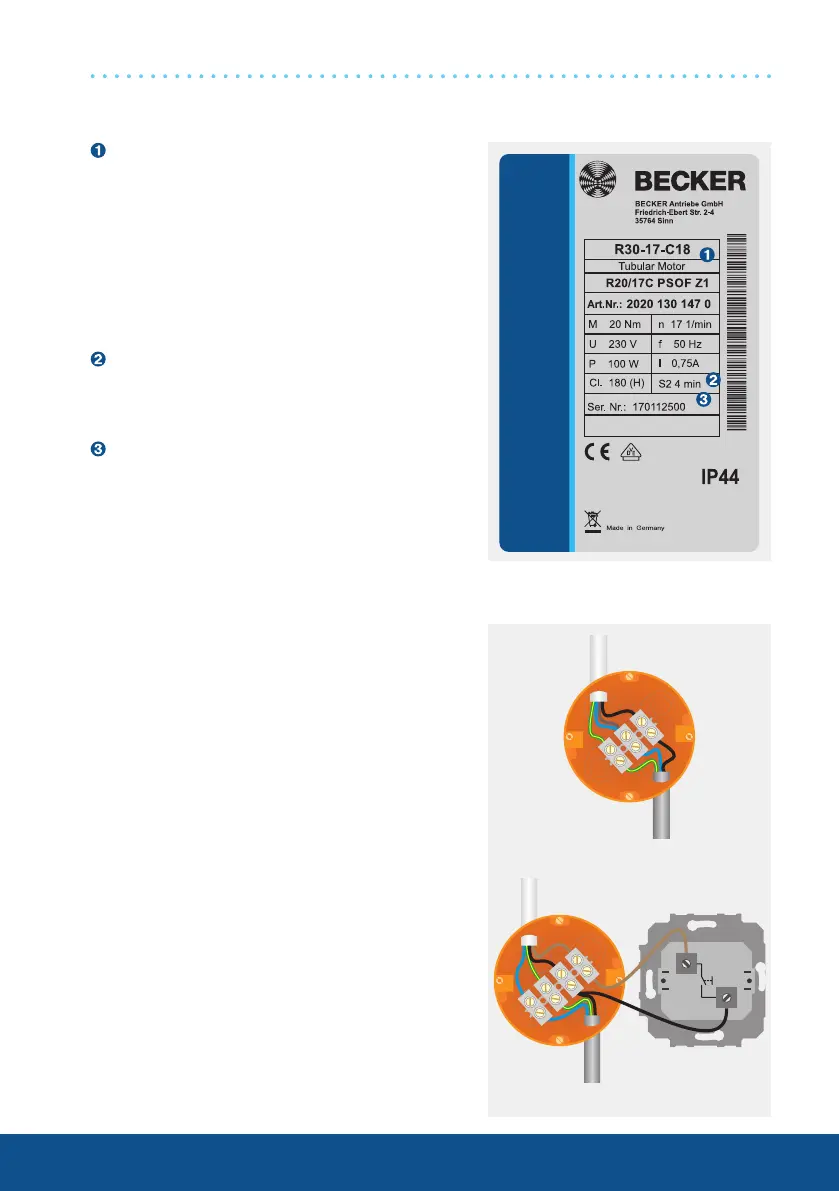

Type plate
Type designation: e.g. R30-17-C18
R Size of drive
(tube diameter)
P - 35 mm
R - 45 mm
L - 58 mm
30-17 Rated torque/output speed
C Centronic remote control
18 Consecutive number
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 170112500
17 Year 2017
01 Calendar week
12500 Consecutive number
Connection with on-site operation
with a single button
With on-site operation, the brown wire of the
drive is connected to the phase of the power
line via a single button. The push-button must
not be operated during the first five seconds
after the mains voltage has been switched
on. The drive can then be operated via the
single button using the command sequence
Up, Stop, Down, Stop, etc.
