8

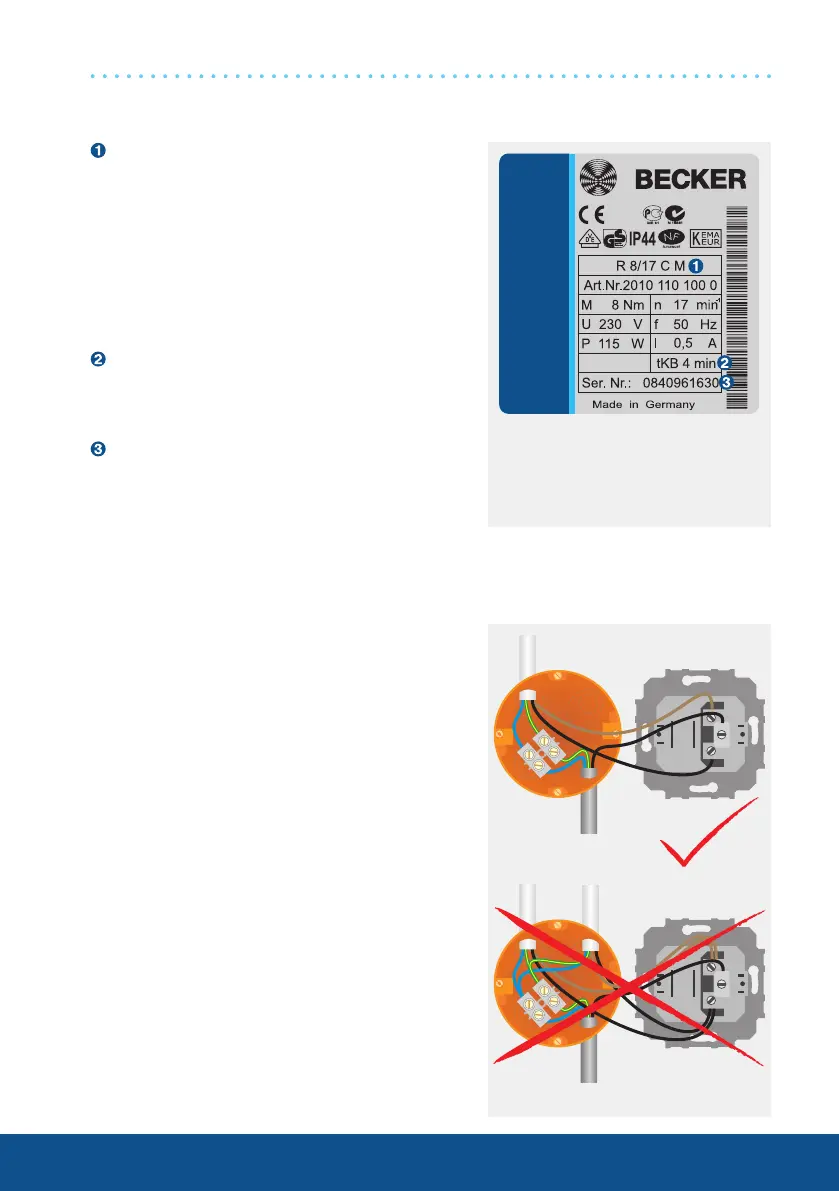

Type plate
Wiring
Drives with mechanical limit switching must not
be connected in parallel to a control point. Dis-
charge of the capacitor could damage the limit
switches. This would cause the limit positions
to be “overrun”.
The changeover time for switching the running di-
rection must be at least 0.5 seconds. The switch
and controls must not execute simultaneous UP
and DOWN commands.
Mains
Drive
Drive 2Drive 1
M (M04) drives
Type designation: e.g. R 8/17 C M
R Size of drive
(tube diameter)
P - 35 mm
R - 45 mm
L - 58 mm
8/17 Rated torque/output speed
C Pluggable connecting cable
M Mechanical limit switching
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 08 40 961630
08 Year 2008
40 Calendar week
961630 Consecutive number
Mains
