Roller shutter
Drives
Information

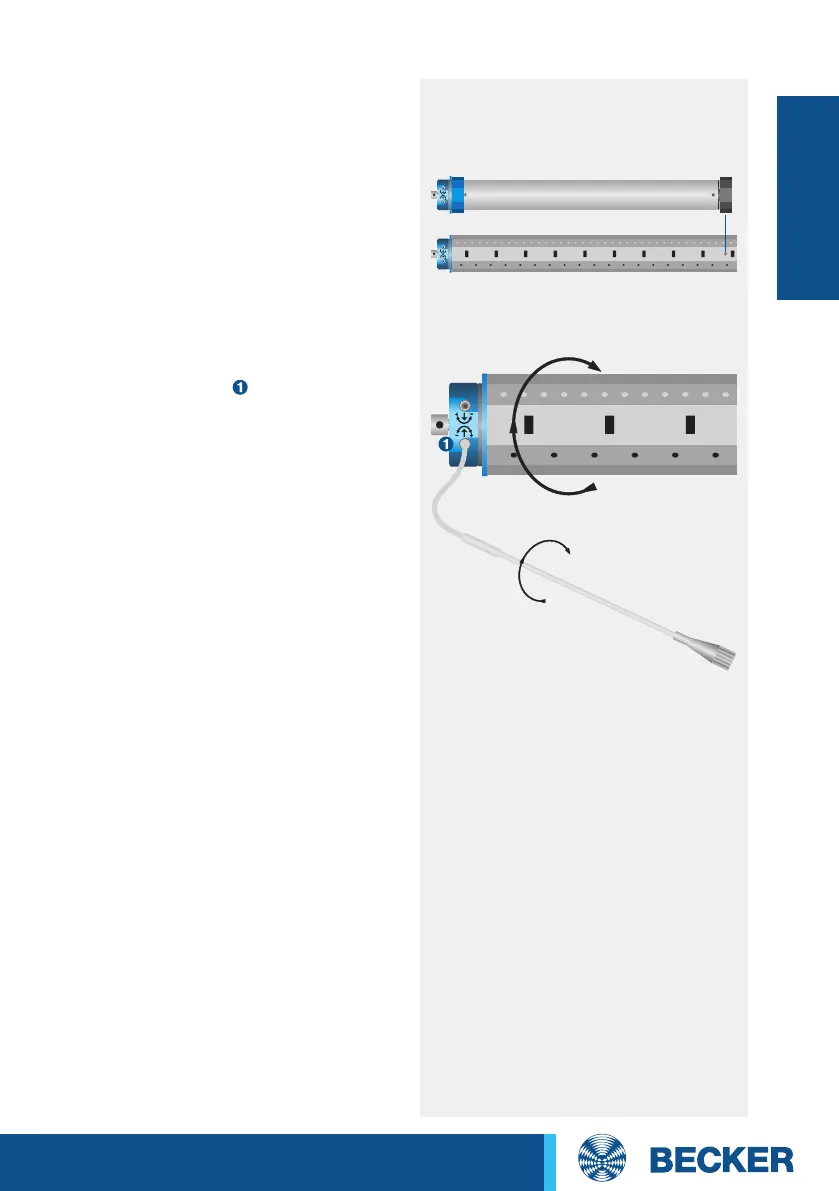

Before installation, make sure that the
drive adapter safety catch has engaged
(is screwed tight).
Mark the position of the drive adapter
on the tube and drill a 4-mm hole at this
point.
Secure the drive adapter against axial
displacement in the tube using a screw
or a rivet.
The arrow on the drive head indicates the
direction of rotation . The limit position
is set on the corresponding adjuster, for
example, with the flexible setting tool
(item no. 49332000020).
Turning in the + direction increases the
range; turning in the - direction reduces
it.
The barrel may not be turned more than
38 revolutions in one direction.
