116
SE I1 drives

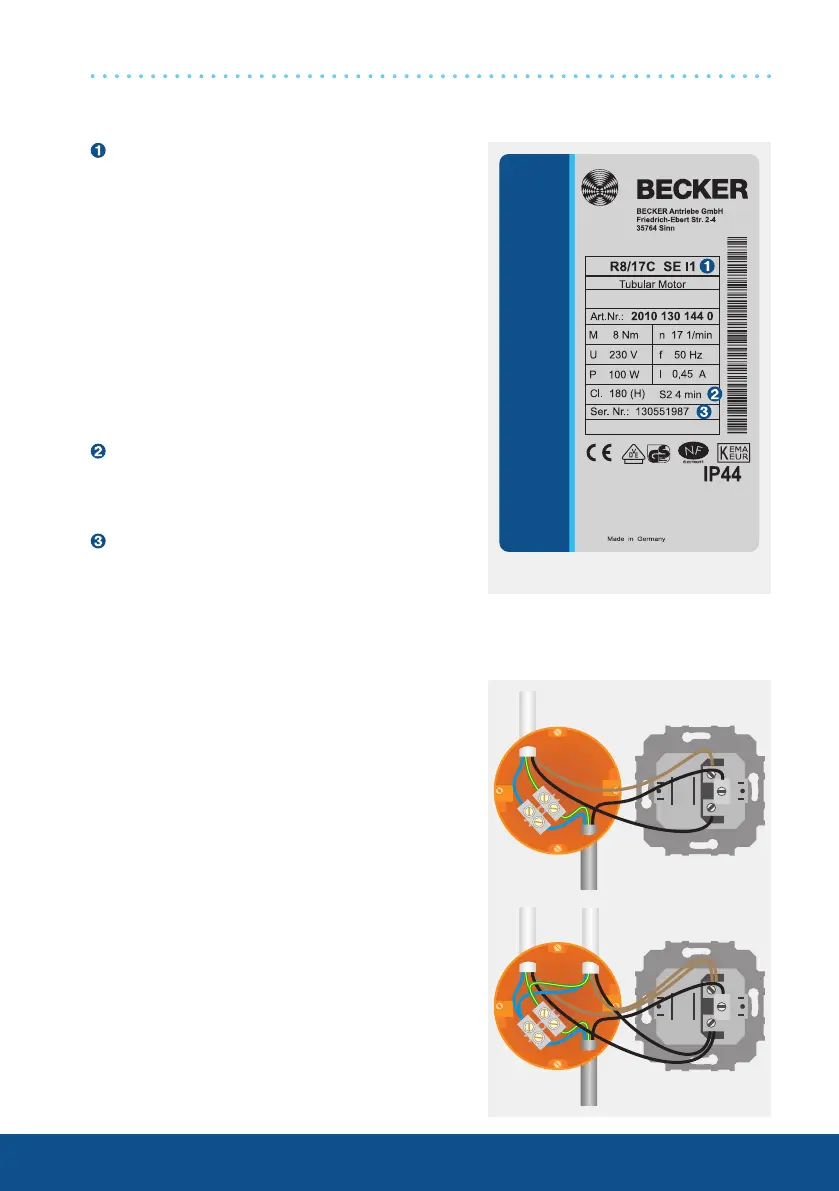

Type plate
Type designation: e.g. R 8/17 SE I1
R Size of drive
(tube diameter)
R - 45 mm
L - 58 mm
8/17 Rated torque/output speed
C Pluggable connecting cable
S Electronic limit switching for sun
protection
E Automatic reversing in the lower
limit position
I1 Programmable for different lock-
ing systems
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 13 05 51987
13 Year 2013
05 Calendar week
51987 Consecutive number
Wiring
Two or more drives with electronic limit switch-
ing can be connected in parallel to a control
point. The maximum number of synchronously
controlled drives depends on the load capacity
of the operator control.
The changeover time for switching the running
direction must be at least 0.5 seconds. The
switch and controls must not execute simulta-
neous retract and extend commands.
The following applies to operator controls with
a 5A contact load rating:
R8/17 SE I1 - R60/17 SE I1 =
max. 3 drives
L70/17 SE I1 - L120/11 SE I1 =
max. 2 drives
Mains
Drive
Drive 2Drive 1
Mains
