117
Sun protection
Drives
Information

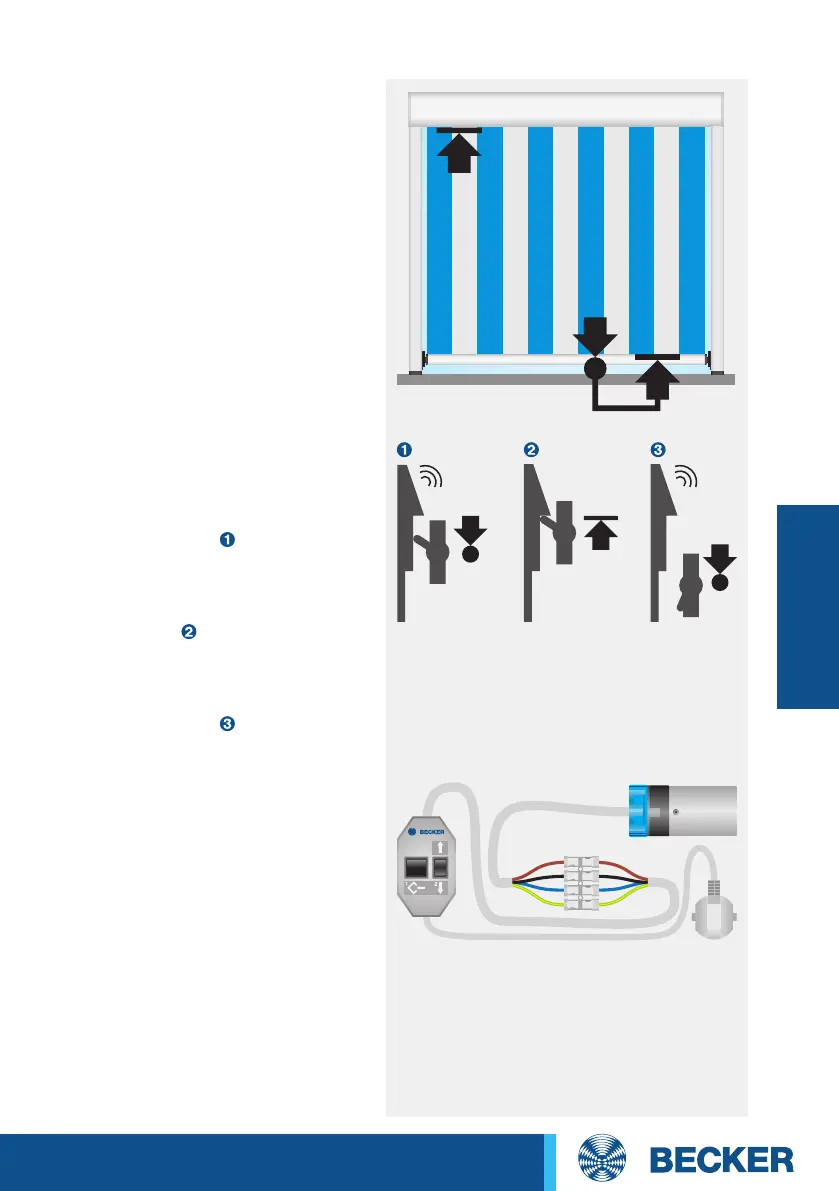

SE I1 drives with electronic limit
switching detect and program the
Retract limit position automatically.
A fixed stop must be available in the
Retract limit position.
The shading solution is automatically
locked and tightened in the Extend
position.
Connect the wires in the connect-
ing cable of the drive to the wires of
the same colour in the programming
unit.
Locking principle
The shading solution is extended
until the bolt has passed the locking
point (bolt clicks). The first point is
programmed here
.
Then run the shading solution in
the UP direction until the drive pulls
the fabric tight and switches off
automatically
.
The shading solution is then moved
out of the path of the locking
mechanism. A point is also
programmed here
.
Click Click
