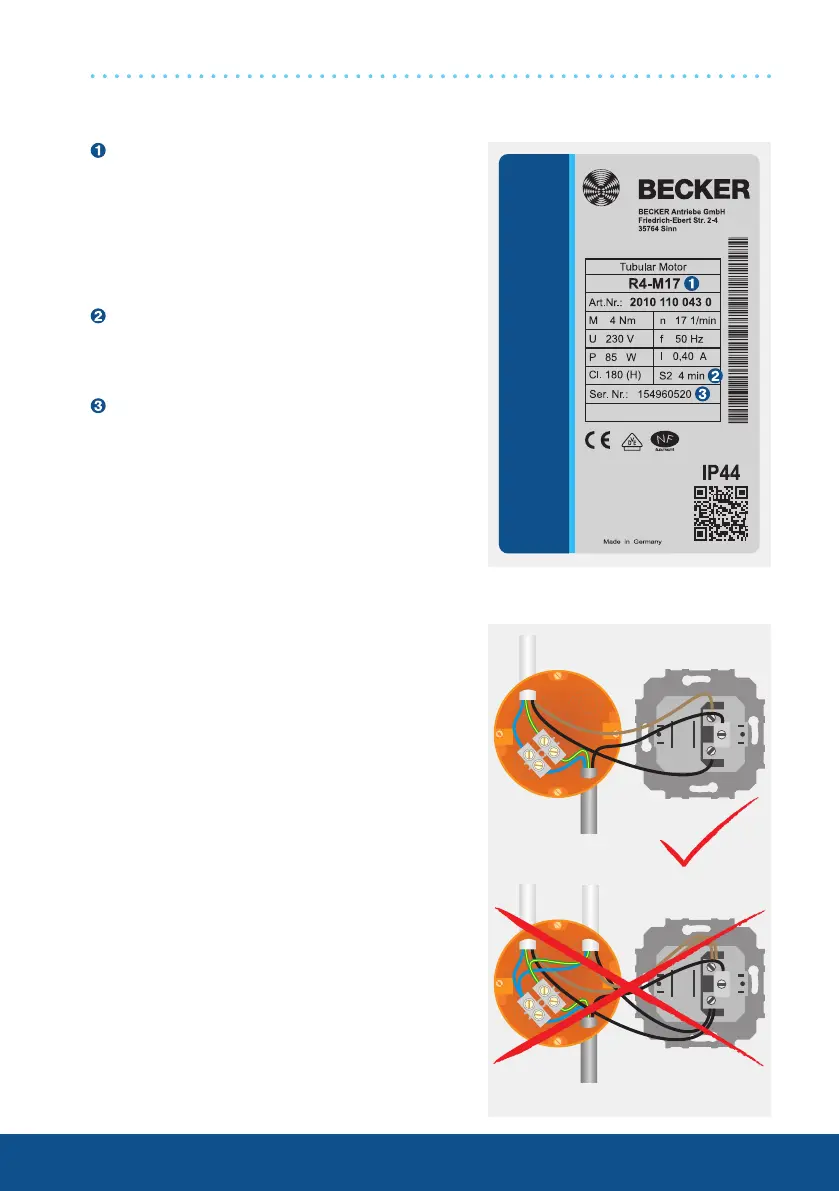

Type plate
Wiring
Drives with mechanical limit switching must
not be connected in parallel to a control point.
Discharge of the capacitor could damage the
microswitches.
The changeover time for switching the running
direction must be at least 0.5 seconds. The
switch and controls must not execute simulta-
neous UP and DOWN commands.
M17 drives
Type designation: e.g. R4-M17
R Size of drive
(tube diameter)
R - 45 mm
4 Rated torque (4 Nm)
M Mechanical limit switching
17 Consecutive number
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off
Serial number: e.g. 15 49 60520
15 Year 2015
49 Calendar week
60520 Consecutive number
Mains
Drive
Drive 2Drive 1
Mains
To Next Page
