11
Roller shutter
Drives

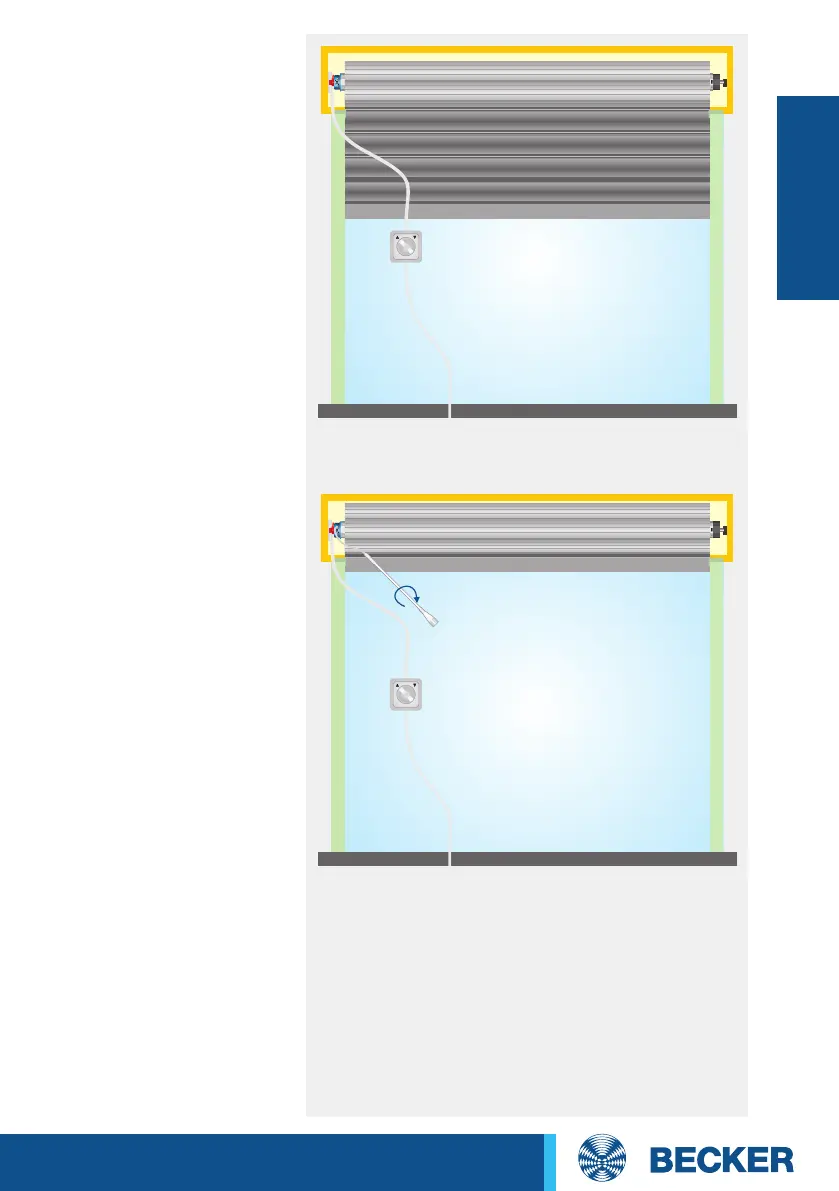

2. Setting the upper
limit position
Run the roller shutter
upwards until the drive
switches off automatically
via the limit switch for the
upper limit position.
Note: When delivered
(from the factory), the
limit switch range is pre-
set to 2 revolutions in the
UP and DOWN directions.
While the shutter is open-
ing, the drive switches
off after 4-5 revolutions.
Turn the corresponding
adjuster in the + direction
(clockwise) until the roller
shutter is in the upper limit
position.
