18
R(+) drives

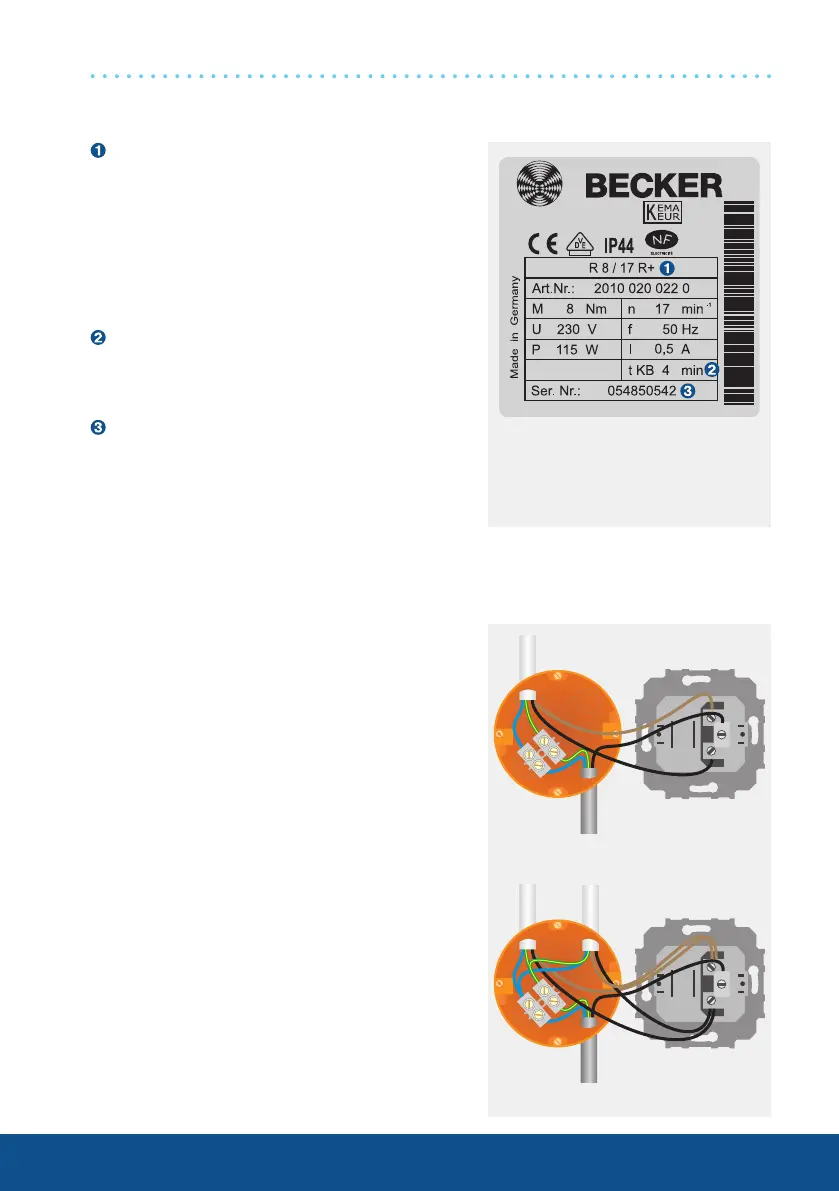

Type plate
Type designation: e.g. R 8/17 R+
R Size of drive
(tube diameter)
R - 45 mm
8/17 Rated torque/output speed
R Electronic limit switching for roller
shutters
+ Suitable for anti-lifting device
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 05 48 50542
05 Year 2005
48 Calendar week
50542 Consecutive number
Wiring
Two or more drives with electronic limit
switching can be connected in parallel to
a control point. The maximum number of
synchronously controlled drives depends on
the respective current consumption but must
not exceed 5.
The changeover time for switching the run-
ning direction must be at least 0.5 seconds.
The switch and controls must not execute
simultaneous UP and DOWN commands.
Mains
Drive
Drive 2Drive 1
Mains
