6
All other drives can be identified via the programming
unit. Connect the wires in the connecting cable of the
drive to the wires of the same colour in the program-
ming unit.
Press the programming button
for 2 seconds.
If the drive produces a loud noise and the tube does
not turn, the drive is a type M. Replace the program-
ming unit immediately with one that is suitable for an
M drive.
If the drive clicks twice, an R(+) type or PicoR+ type
drive is installed.
If the drive clicks once or does not react, it is an RP(+),
RO+, PR+, E01, RF(+) or PRF+, PROF+, or B01 drive
type.
1 s
1 s
1 s
1 s
1 s
1 s
1 s
1 s
1 s
1 s
1 s
1 s
1 s
5 s
10 s
10 s
General
Which type of roller shutter drive has been installed?

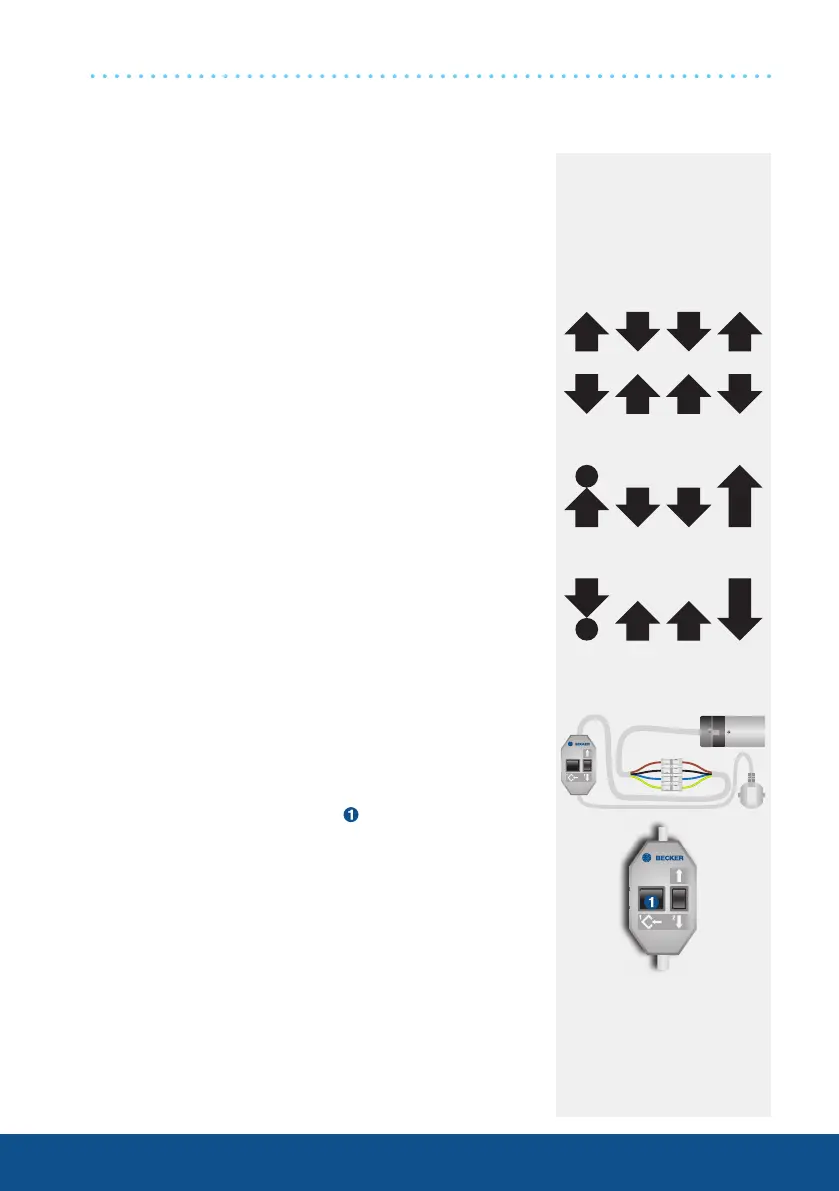

The limit positions of the latest generation of drives
with electronic limit switching can be deleted and reset
via the existing operator control. To do this, proceed
as follows:
First, run the drive for 6 seconds in the UP or DOWN
direction.
Then perform the travel movements described opposite
to delete the limit positions. If the drive then clicks twice,
it is one of the following types: RO+, E01, E02, E03 or
E14.
Then reprogram the upper and lower limit positions in
the order described opposite. The drive clicks once to
confirm the programming action.
If the drive does not confirm by clicking once, it is an
E02 type or RO+ type drive.
If the drive stops sensitively when encountering an
obstruction when moving downwards, it is an E01 type
drive.
If the drive stops without reversing, it is an E03 type
drive.
If the drive reacts insensitively to the obstruction, it is
an E14 type drive.
Deleting the limit positions
Upper limit position
Lower limit position
