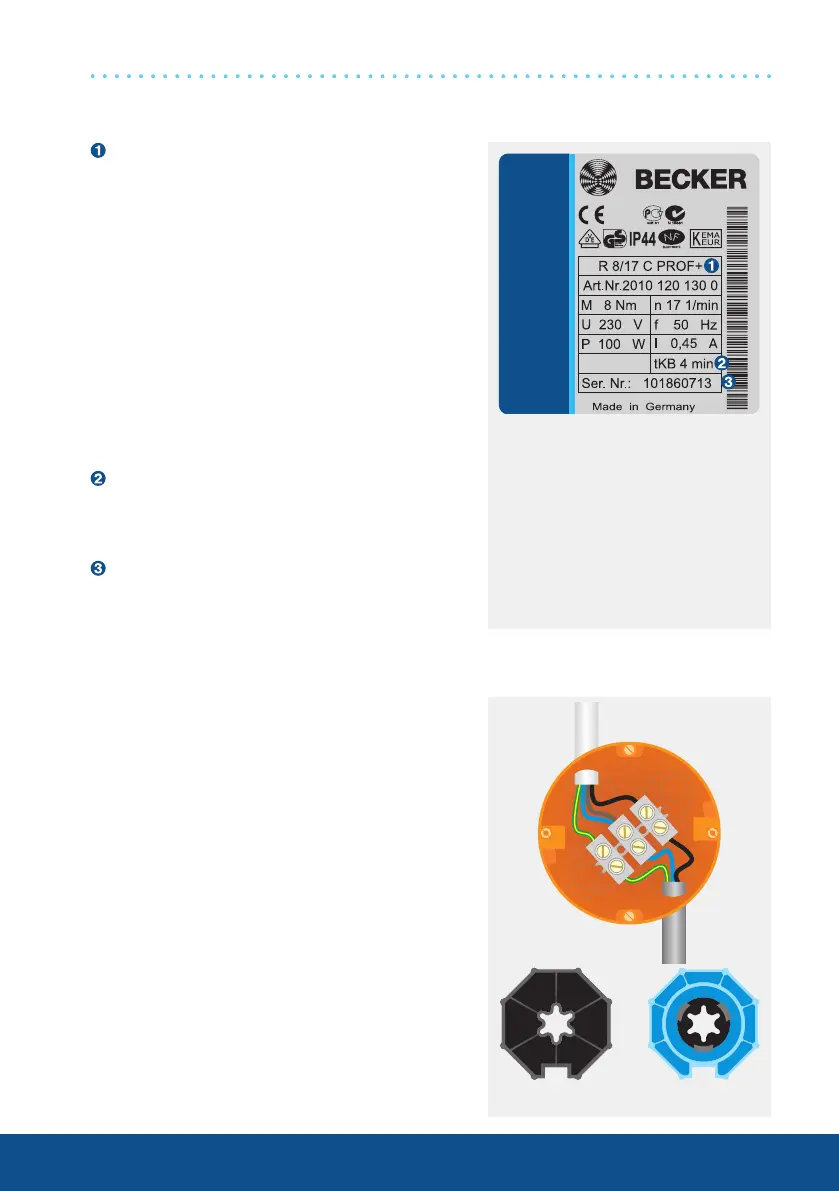

Type plate
Type designation: e.g. R8/17 C PROF+
R Size of drive
(tube diameter)
P - 35 mm
R - 45 mm
8/17 Rated torque/output speed
C Pluggable connecting cable
P Point to point programming
possible
R Electronic limit switching for roller
shutters
O Sensitive obstacle detection
F Radio receiver
+ Suitable for anti-lifting device
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 10 18 60713
10 Year 2010
18 Calendar week
60713 Consecutive number
Wiring
Drives with electronic limit switching and
integrated radio receiver are connected
directly to the power supply. The brown wire
and the blue wire together are connected to
the neutral wire.
Mains
Drive
PROF+ drives
For the sensitive obstacle detection to be
active, the drive adapter with object detection
must be mounted on the drive.
Drive adapter with
obstacle detection
Drive adapter
