SE+ K5 mute drives

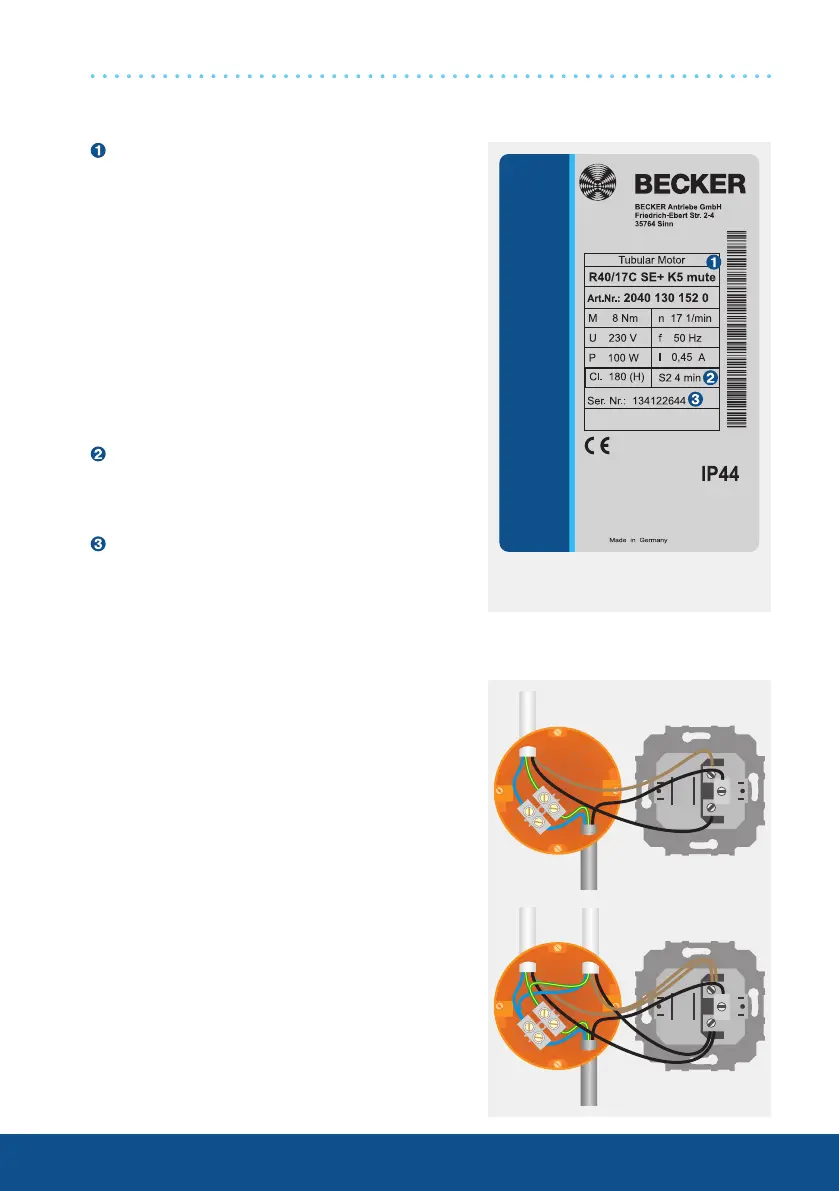

Type plate
Type designation: e.g.
R40/17C SE+ K5 mute
R size of drive
(tube diameter)
R - 40 mm
40/17 Rated torque/output speed
C Pluggable connecting cable
S Electronic limit switching for sun
protection
EK5 Various special functions
+ Higher closing force for cassette
awnings
mute Extremely quiet operation
Operating mode (short-period opera-
tion S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 13 41 22644
13 Year 2013
41 Calendar week
22644 Consecutive number
Wiring
Two or more drives with electronic limit switching
can be connected in parallel to a control point.
The maximum number of synchronously con
-
trolled drives depends on the load capacity of
the operator control.
The changeover time for switching the
running direction must be at least 0.5 seconds.
The switch and controls must not execute
simultaneous retract and extend commands.
The following applies to operator controls with
a 5A contact load rating:
R30/17C SE+ K5 mute - R50/17C SE+ K5
mute = max. 3 drives
Mains
Drive
Drive 2Drive 1
Mains
To Next Page
